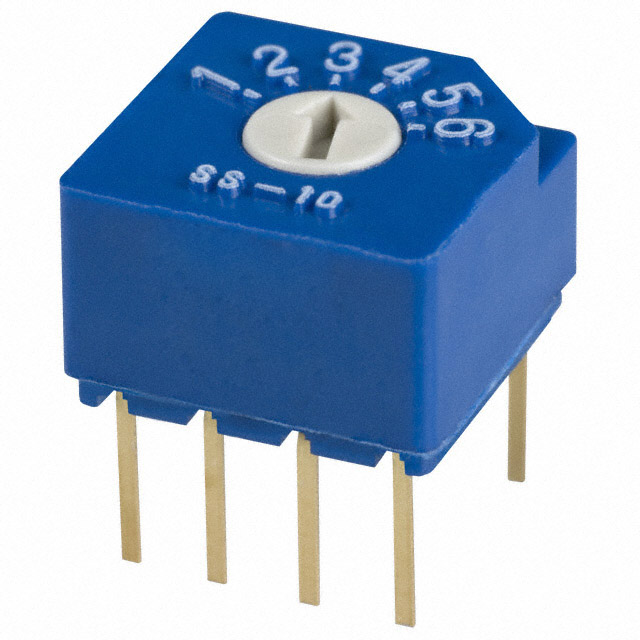

SS-10-16SP-AE

Active

Nidec Components Corporation

ROTARY SWITCH, 1P, 6 POS, 0.1A, 5VDC ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Nidec Components Corporation

ROTARY SWITCH, 1P, 6 POS, 0.1A, 5VDC ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	SS-10-16SP-AE

Actuator Level	Flush, Recessed
Actuator Type	Rotary for Tool
Body Material	Polybutylene Terephthalate (PBT)
Circuit	SP6T
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	100 mA
Electrical Life	500 Cycles
Height Above Board	0.275 in
Height Above Board	6.99 mm
Length	10 mm
Length	0.394 in
Mounting Type	Through Hole
Number of Positions	6
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	PC Pin
Voltage Rating	5 V
Washable	True

Part	Termination Style	Body Material	Contact Finish	Mounting Type	Contact Material	Current Rating (Amps)	Voltage Rating	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Height Above Board	Height Above Board	Pitch [x]	Pitch	Pitch [x]	Length	Length	Actuator Level	Actuator Type	Electrical Life	Number of Positions	Height Above Board
Nidec Components Corporation SS-10-16SP-AE	PC Pin	Polybutylene Terephthalate (PBT)	Gold	Through Hole	Copper Alloy	100 mA	5 V	SP6T	70 °C	-25 °C	0.275 in	6.99 mm	0.1 in	Full	2.54 mm	10 mm	0.394 in	Flush Recessed	Rotary for Tool	500 Cycles	6
Nidec Components Corporation SS-10-16NP-LE	PC Pin	Polybutylene Terephthalate (PBT)	Gold	Through Hole	Copper Alloy	100 mA	5 V	SP6T	70 °C	-25 °C	13.59 mm		0.1 in	Full	2.54 mm	10 mm	0.394 in	Raised	Rotary with Shaft	500 Cycles	6	0.535 in
Nidec Components Corporation SS-10-16SP-L-AE	PC Pin	Polybutylene Terephthalate (PBT)	Gold	Through Hole	Copper Alloy	100 mA	5 V	SP6T	70 °C	-25 °C	13.59 mm		0.1 in	Full	2.54 mm	10 mm	0.394 in	Raised	Rotary with Shaft	500 Cycles	6	0.535 in
Nidec Components Corporation SS-10-16NPE	PC Pin	Polybutylene Terephthalate (PBT)	Gold	Through Hole	Copper Alloy	100 mA	5 V	SP6T	70 °C	-25 °C	0.275 in	6.99 mm	0.1 in	Full	2.54 mm	10 mm	0.394 in	Flush Recessed	Rotary for Tool	500 Cycles	6

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Dip Switch SP6T 6 Position Through Hole Rotary for Tool Actuator 100mA 5VDC
