6380-3SG-519
ActiveConxall/Switchcraft

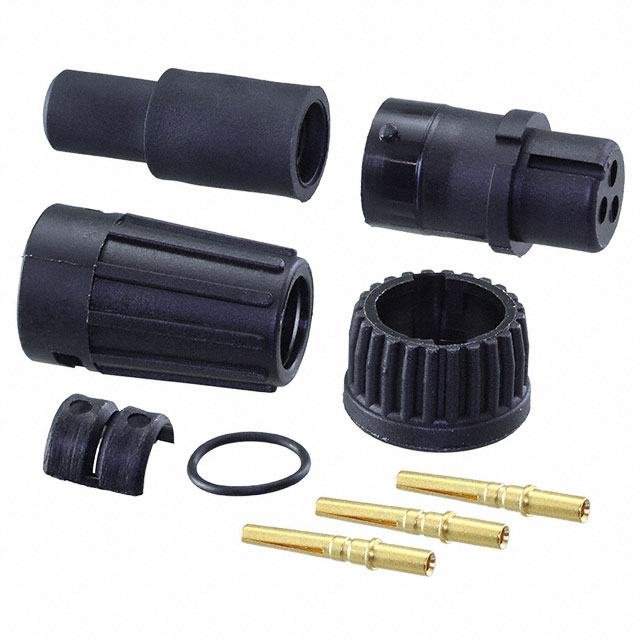

CONN PLUG FMALE 3POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
6380-3SG-519
ActiveConxall/Switchcraft
CONN PLUG FMALE 3POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 6380-3SG-519 | 6380-3SG Series |
|---|---|---|
| Applications | Automotive, Communication Systems, Instrumentation | Automotive, Communication Systems, Instrumentation |
| Backshell Material, Plating | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Cable Opening | - | 2.29 mm |
| Cable Opening | - | 0.09 - 0.14 in |
| Cable Opening | - | 3.56 mm |
| Cable Opening | - | 0.13 - 0.17 in |
| Cable Opening | - | 3.3 - 4.32 mm |
| Cable Opening | - | 0.16 - 0.18 in |
| Cable Opening | - | 0.18 - 0.2 in |
| Cable Opening | - | 4.06 - 4.57 mm |
| Cable Opening | - | 4.57 - 5.08 mm |
| Cable Opening [Max] [diameter] | 0.21 in | 0.21 - 0.25 in |
| Cable Opening [Max] [diameter] | 5.33 mm | 5.33 - 6.35 mm |
| Cable Opening [Min] [diameter] | 0.19 in | 0.19 - 0.22 in |
| Cable Opening [Min] [diameter] | 4.83 mm | 4.83 - 5.59 mm |
| Color | Black | Black |
| Connector Type | Female Sockets, Plug | Female Sockets, Plug |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Brass | Brass |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Backshell | Backshell |
| Ingress Protection | Weathertight | Weathertight |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Operating Temperature [Max] | 115 °C | 115 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp | Crimp |
| Voltage Rating | 600 V | 600 V |
6380-3SG Series
CONN PLUG FMALE 3POS GOLD CRIMP
| Part | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Orientation | Ingress Protection | Contact Material | Voltage Rating | Mounting Type | Fastening Type | Termination | Color | Applications | Shielding | Current Rating (Amps) | Primary Material | Backshell Material, Plating | Connector Type | Contact Finish - Mating | Features | Cable Opening [custom] | Cable Opening [custom] | Cable Opening [Max] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft 6380-3SG-311 | 2.29 mm | 0.09 in, 0.14 in | 3.56 mm | -40 °C | 115 °C | Keyed | Weathertight | Brass | 600 V | Free Hanging (In-Line) | Bayonet Lock | Crimp | Black | Automotive, Communication Systems, Instrumentation | Unshielded | Varies by Wire Gauge | Plastic | Nylon, Polyamide (PA) | Female Sockets, Plug | Gold | Backshell | ||||||||||
Conxall/Switchcraft 6380-3SG-315 | -40 °C | 115 °C | Keyed | Weathertight | Brass | 600 V | Free Hanging (In-Line) | Bayonet Lock | Crimp | Black | Automotive, Communication Systems, Instrumentation | Unshielded | Varies by Wire Gauge | Plastic | Nylon, Polyamide (PA) | Female Sockets, Plug | Gold | Backshell | 0.15 in, 0.17 in | 3.81 mm, 4.32 mm | |||||||||||
Conxall/Switchcraft 6380-3SG-522 | -40 °C | 115 °C | Keyed | Weathertight | Brass | 600 V | Free Hanging (In-Line) | Bayonet Lock | Crimp | Black | Automotive, Communication Systems, Instrumentation | Unshielded | Varies by Wire Gauge | Plastic | Nylon, Polyamide (PA) | Female Sockets, Plug | Gold | Backshell | 6.35 mm | 0.25 in | 0.22 in | 5.59 mm | |||||||||
Conxall/Switchcraft 6380-3SG-516 | -40 °C | 115 °C | Keyed | Weathertight | Brass | 600 V | Free Hanging (In-Line) | Bayonet Lock | Crimp | Black | Automotive, Communication Systems, Instrumentation | Unshielded | Varies by Wire Gauge | Plastic | Nylon, Polyamide (PA) | Female Sockets, Plug | Gold | Backshell | 0.16 in | 0.18 in | 4.06 mm | 4.57 mm | |||||||||
Conxall/Switchcraft 6380-3SG-513 | -40 °C | 115 °C | Keyed | Weathertight | Brass | 600 V | Free Hanging (In-Line) | Bayonet Lock | Crimp | Black | Automotive, Communication Systems, Instrumentation | Unshielded | Varies by Wire Gauge | Plastic | Nylon, Polyamide (PA) | Female Sockets, Plug | Gold | Backshell | 0.13 in, 0.15 in | 3.3 mm, 3.81 mm | |||||||||||
Conxall/Switchcraft 6380-3SG-318 | -40 °C | 115 °C | Keyed | Weathertight | Brass | 600 V | Free Hanging (In-Line) | Bayonet Lock | Crimp | Black | Automotive, Communication Systems, Instrumentation | Unshielded | Varies by Wire Gauge | Plastic | Nylon, Polyamide (PA) | Female Sockets, Plug | Gold | Backshell | 0.18 in | 0.2 in | 4.57 mm | 5.08 mm | |||||||||
Conxall/Switchcraft 6380-3SG-519 | -40 °C | 115 °C | Keyed | Weathertight | Brass | 600 V | Free Hanging (In-Line) | Bayonet Lock | Crimp | Black | Automotive, Communication Systems, Instrumentation | Unshielded | Varies by Wire Gauge | Plastic | Nylon, Polyamide (PA) | Female Sockets, Plug | Gold | Backshell | 5.33 mm | 0.21 in | 0.19 in | 4.83 mm | |||||||||
Conxall/Switchcraft 6380-3SG-3DC | -40 °C | 115 °C | Keyed | Weathertight | Brass | 600 V | Free Hanging (In-Line) | Bayonet Lock | Crimp | Black | Automotive, Communication Systems, Instrumentation | Unshielded | Varies by Wire Gauge | Plastic | Nylon, Polyamide (PA) | Female Sockets, Plug | Gold | Backshell |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.76 | |
| 10 | $ 5.19 | |||
| 25 | $ 4.89 | |||
| 50 | $ 4.76 | |||
| 100 | $ 4.64 | |||
| 300 | $ 4.41 | |||
Description
General part information
6380-3SG Series
3 Position Circular Connector Plug, Female Sockets Crimp
Documents
Technical documentation and resources
