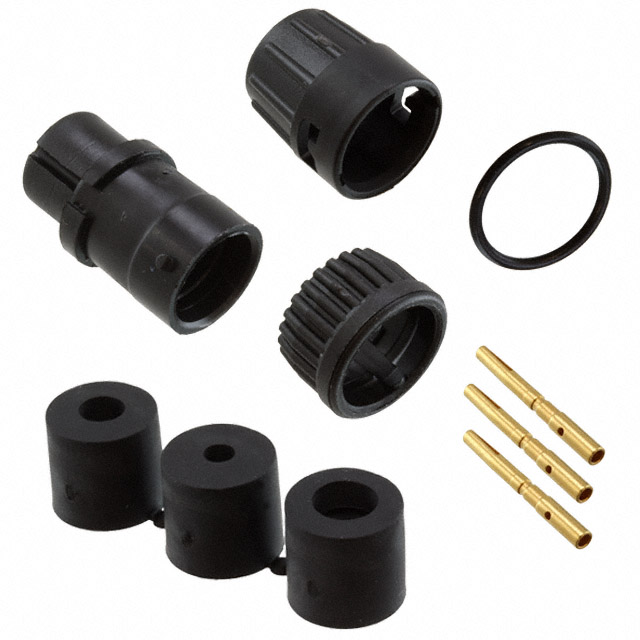

6380-3SG-3DC

Active

Conxall/Switchcraft

CONN PLUG FMALE 3POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

6380-3SG-3DC

Active

Conxall/Switchcraft

CONN PLUG FMALE 3POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	6380-3SG-3DC	6380-3SG Series

Applications	Automotive, Communication Systems, Instrumentation	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	2.29 mm
Cable Opening	-	0.09 - 0.14 in
Cable Opening	-	3.56 mm
Cable Opening	-	0.13 - 0.17 in
Cable Opening	-	3.3 - 4.32 mm
Cable Opening	-	5.33 - 6.35 mm
Cable Opening	-	0.21 - 0.25 in
Cable Opening	-	0.19 - 0.22 in
Cable Opening	-	4.83 - 5.59 mm
Cable Opening	-	0.16 - 0.18 in
Cable Opening	-	0.18 - 0.2 in
Cable Opening	-	4.06 - 4.57 mm
Cable Opening	-	4.57 - 5.08 mm
Color	Black	Black
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp	Crimp
Voltage Rating	600 V	600 V

6380-3SG Series

CONN PLUG FMALE 3POS GOLD CRIMP

Part	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Ingress Protection	Contact Material	Voltage Rating	Mounting Type	Fastening Type	Termination	Color	Applications	Shielding	Current Rating (Amps)	Primary Material	Backshell Material, Plating	Connector Type	Contact Finish - Mating	Features	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]
Conxall/Switchcraft 6380-3SG-311	2.29 mm	0.09 in, 0.14 in	3.56 mm	-40 °C	115 °C	Keyed	Weathertight	Brass	600 V	Free Hanging (In-Line)	Bayonet Lock	Crimp	Black	Automotive, Communication Systems, Instrumentation	Unshielded	Varies by Wire Gauge	Plastic	Nylon, Polyamide (PA)	Female Sockets, Plug	Gold	Backshell
Conxall/Switchcraft 6380-3SG-315				-40 °C	115 °C	Keyed	Weathertight	Brass	600 V	Free Hanging (In-Line)	Bayonet Lock	Crimp	Black	Automotive, Communication Systems, Instrumentation	Unshielded	Varies by Wire Gauge	Plastic	Nylon, Polyamide (PA)	Female Sockets, Plug	Gold	Backshell	0.15 in, 0.17 in	3.81 mm, 4.32 mm
Conxall/Switchcraft 6380-3SG-522				-40 °C	115 °C	Keyed	Weathertight	Brass	600 V	Free Hanging (In-Line)	Bayonet Lock	Crimp	Black	Automotive, Communication Systems, Instrumentation	Unshielded	Varies by Wire Gauge	Plastic	Nylon, Polyamide (PA)	Female Sockets, Plug	Gold	Backshell			6.35 mm	0.25 in	0.22 in	5.59 mm
Conxall/Switchcraft 6380-3SG-516				-40 °C	115 °C	Keyed	Weathertight	Brass	600 V	Free Hanging (In-Line)	Bayonet Lock	Crimp	Black	Automotive, Communication Systems, Instrumentation	Unshielded	Varies by Wire Gauge	Plastic	Nylon, Polyamide (PA)	Female Sockets, Plug	Gold	Backshell							0.16 in	0.18 in	4.06 mm	4.57 mm
Conxall/Switchcraft 6380-3SG-513				-40 °C	115 °C	Keyed	Weathertight	Brass	600 V	Free Hanging (In-Line)	Bayonet Lock	Crimp	Black	Automotive, Communication Systems, Instrumentation	Unshielded	Varies by Wire Gauge	Plastic	Nylon, Polyamide (PA)	Female Sockets, Plug	Gold	Backshell	0.13 in, 0.15 in	3.3 mm, 3.81 mm
Conxall/Switchcraft 6380-3SG-318				-40 °C	115 °C	Keyed	Weathertight	Brass	600 V	Free Hanging (In-Line)	Bayonet Lock	Crimp	Black	Automotive, Communication Systems, Instrumentation	Unshielded	Varies by Wire Gauge	Plastic	Nylon, Polyamide (PA)	Female Sockets, Plug	Gold	Backshell							0.18 in	0.2 in	4.57 mm	5.08 mm
Conxall/Switchcraft 6380-3SG-519				-40 °C	115 °C	Keyed	Weathertight	Brass	600 V	Free Hanging (In-Line)	Bayonet Lock	Crimp	Black	Automotive, Communication Systems, Instrumentation	Unshielded	Varies by Wire Gauge	Plastic	Nylon, Polyamide (PA)	Female Sockets, Plug	Gold	Backshell			5.33 mm	0.21 in	0.19 in	4.83 mm
Conxall/Switchcraft 6380-3SG-3DC				-40 °C	115 °C	Keyed	Weathertight	Brass	600 V	Free Hanging (In-Line)	Bayonet Lock	Crimp	Black	Automotive, Communication Systems, Instrumentation	Unshielded	Varies by Wire Gauge	Plastic	Nylon, Polyamide (PA)	Female Sockets, Plug	Gold	Backshell

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.06
		10	$ 9.95
		25	$ 9.37
		50	$ 9.13
		100	$ 8.89
		300	$ 7.93
		500	$ 7.45
		1000	$ 6.59

Description

General part information

6380-3SG Series

3 Position Circular Connector Plug, Female Sockets Crimp
