15SQ060

Active

SMC Diode Solutions

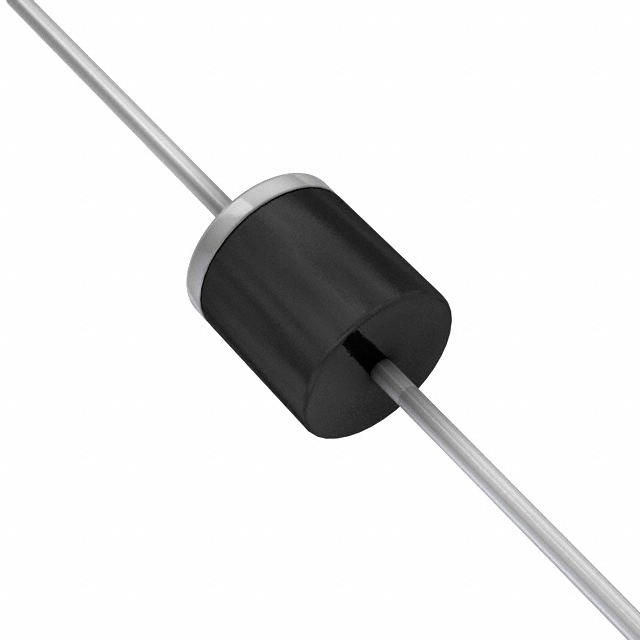

DIODE SCHOTTKY 60V 15A R-6

Search across all available documentation for this part.

Active

SMC Diode Solutions

DIODE SCHOTTKY 60V 15A R-6

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	15SQ060	15SQ Series

Current - Average Rectified (Io)	15 A	15 A
Current - Reverse Leakage @ Vr	500 nA	500 nA
Mounting Type	Through Hole	Through Hole
Operating Temperature - Junction [Max]	150 °C	150 °C
Operating Temperature - Junction [Min]	-55 °C	-55 °C
Package / Case	R-6, Axial	R-6, Axial
Speed	200 mA, 500 ns	200 - 500 mA
Supplier Device Package	R-6	R-6
Technology	Schottky	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	60 V	45 - 100 V
Voltage - Forward (Vf) (Max) @ If	-	550 - 830 mV

DIODE SCHOTTKY 60V 15A R-6

Part	Supplier Device Package	Mounting Type	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Voltage - DC Reverse (Vr) (Max) [Max]	Speed	Technology	Current - Reverse Leakage @ Vr	Package / Case	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If
SMC Diode Solutions 15SQ060	R-6	Through Hole	150 °C	-55 °C	60 V	200 mA, 500 ns	Schottky	500 nA	R-6, Axial	15 A
SMC Diode Solutions 15SQ050	R-6	Through Hole	150 °C	-55 °C	50 V	200 mA, 500 ns	Schottky	500 nA	R-6, Axial	15 A
SMC Diode Solutions 15SQ045	R-6	Through Hole	150 °C	-55 °C	45 V	200 mA, 500 ns	Schottky	500 µA	R-6, Axial	15 A	550 mV
SMC Diode Solutions 15SQ100	R-6	Through Hole	150 °C	-55 °C	100 V	200 mA, 500 ns	Schottky	500 µA	R-6, Axial	15 A	830 mV
