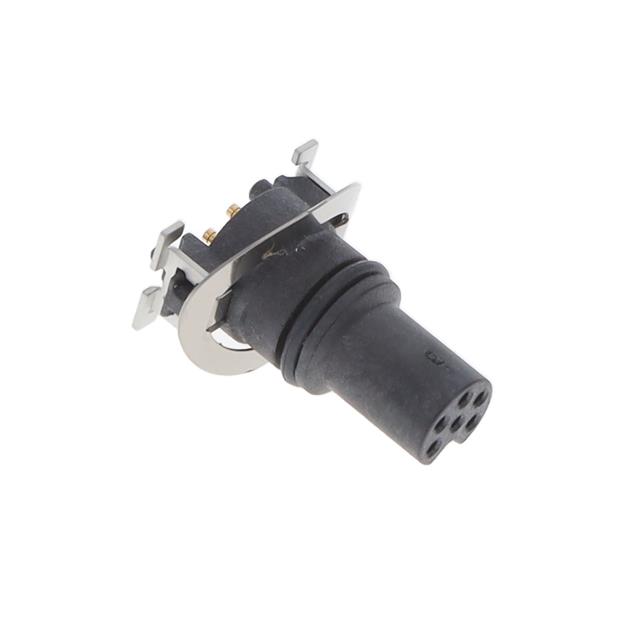

M8AS-06PFFT-EE0001
ActiveAmphenol LTW
M SERIES, GUIDED M8, 3A, 06 PINS, SMT ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M8AS-06PFFT-EE0001
ActiveAmphenol LTW
M SERIES, GUIDED M8, 3A, 06 PINS, SMT ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M8AS-06PFFT-EE0001 |
|---|---|
| Color | Black |
| Connector Type | Female Sockets, Insert |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Features | Board Guide |
| Ingress Protection | IP68, IP65 |
| Insert Material | Nylon, Polyamide (PA) |
| Mounting Type | Surface Mount |
| Number of Positions | 6 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | A |
| Shell Size - Insert | M8-6 |
| Shielding | Shielded |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M8AS-06PFFT Series
6 Position Circular Connector Insert, Female Sockets Solder
