28523.4
ActiveConta-Clip, Inc.

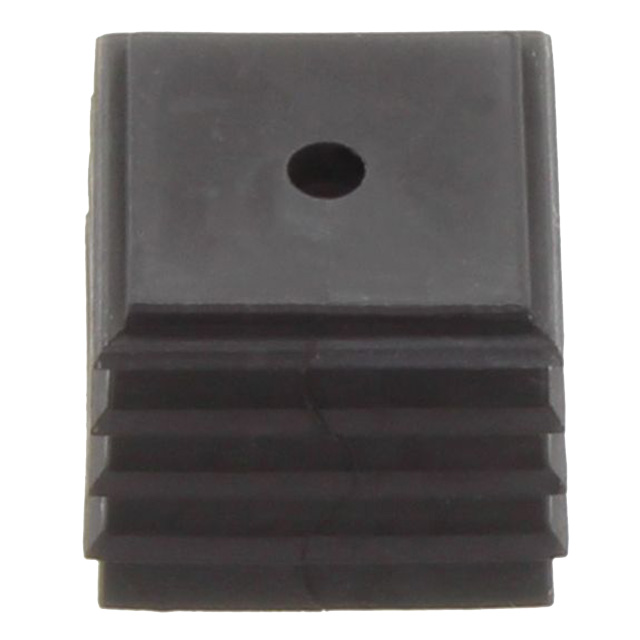

KDS SMALL SEALING SLEEVE 4MM
Deep-Dive with AI
Search across all available documentation for this part.
28523.4
ActiveConta-Clip, Inc.
KDS SMALL SEALING SLEEVE 4MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 28523.4 |
|---|---|
| Bushing, Grommet Type | Frame Grommet, Split |
| Color | Black |
| Diameter - Inside [diameter] | 0.157 " |
| Diameter - Inside [diameter] | 4 mm |
| Features | IP66 - Dust Tight, Water Resistant |
| For Use With/Related Products | Wires, Cable |
| Material | Thermoplastic Elastomer (TPE) |
| Material Flammability Rating | UL94 HB |
| Panel Cutout Dimensions [x] | 20.3 mm |
| Panel Cutout Dimensions [x] | 0.799 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 2.43 | |
| 5 | $ 2.30 | |||
| 10 | $ 2.24 | |||
| 25 | $ 2.18 | |||
| 50 | $ 2.12 | |||
| 100 | $ 2.00 | |||
| 250 | $ 1.88 | |||
| 500 | $ 1.82 | |||
| 1000 | $ 1.76 | |||
Description
General part information
28523 Series
Square - 0.799" (20.30mm) Frame Grommet, Split 0.157" (4.00mm) Black
Documents
Technical documentation and resources
No documents available
