Q-2V05A0005003M

Active

Amphenol Custom Cable

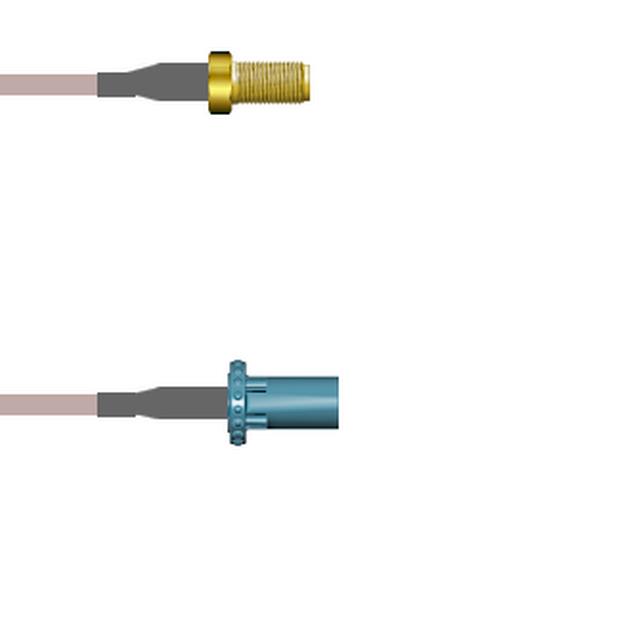

CBL ASSY SMA-FAKRA II JK-PL 9.8'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2V05A0005003M

Active

Amphenol Custom Cable

CBL ASSY SMA-FAKRA II JK-PL 9.8'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2V05A0005003M

1st Connector	SMA Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	Fakra II (Gen 2.0) Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-316
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	3 m
Length	118.1 in
Length	9.8 '
Overall Impedance	50 Ohms
Style	SMA to Fakra II

Q-2V05A0 Series

Part	2nd Connector	2nd Contact Gender	1st Connector Mounting Type	1st Contact Gender	Connector Impedance	Color	Features	Cable Type	2nd Connector Mounting Type	Frequency - Max [Max]	1st Connector	Cable Impedance	Overall Impedance	Style	Length	Length	Length
Amphenol Custom Cable Q-2V05A0003084I	Fakra II (Gen 2.0) Plug	Male	Free Hanging (In-Line)	Female	50 Ohms	Black	Shielded	RG-174	Free Hanging (In-Line)	1 GHz	SMA Jack	50 Ohms	50 Ohms	SMA to Fakra II	84 in	2.1 m	7 ft
Amphenol Custom Cable Q-2V05A0005012I	Fakra II (Gen 2.0) Plug	Male	Free Hanging (In-Line)	Female	50 Ohms	Copper	Shielded	RG-316	Free Hanging (In-Line)	3 GHz	SMA Jack	50 Ohms	50 Ohms	SMA to Fakra II	12 "	304.8 mm
Amphenol Custom Cable Q-2V05A0005003I	Fakra II (Gen 2.0) Plug	Male	Free Hanging (In-Line)	Female	50 Ohms	Copper	Shielded	RG-316	Free Hanging (In-Line)	3 GHz	SMA Jack	50 Ohms	50 Ohms	SMA to Fakra II	3 in	76.2 mm
Amphenol Custom Cable Q-2V05A0005084I	Fakra II (Gen 2.0) Plug	Male	Free Hanging (In-Line)	Female	50 Ohms	Copper	Shielded	RG-316	Free Hanging (In-Line)	3 GHz	SMA Jack	50 Ohms	50 Ohms	SMA to Fakra II	84 in	2.1 m	7 ft
Amphenol Custom Cable Q-2V05A0005009I	Fakra II (Gen 2.0) Plug	Male	Free Hanging (In-Line)	Female	50 Ohms	Copper	Shielded	RG-316	Free Hanging (In-Line)	3 GHz	SMA Jack	50 Ohms	50 Ohms	SMA to Fakra II	9 "	228.6 mm
Amphenol Custom Cable Q-2V05A0005002M	Fakra II (Gen 2.0) Plug	Male	Free Hanging (In-Line)	Female	50 Ohms	Copper	Shielded	RG-316	Free Hanging (In-Line)	3 GHz	SMA Jack	50 Ohms	50 Ohms	SMA to Fakra II	78.7 in	2 m	6.6 ft
Amphenol Custom Cable Q-2V05A0003001M	Fakra II (Gen 2.0) Plug	Male	Free Hanging (In-Line)	Female	50 Ohms	Black	Shielded	RG-174	Free Hanging (In-Line)	1 GHz	SMA Jack	50 Ohms	50 Ohms	SMA to Fakra II	39.4 in	1 m	3.3 ft
Amphenol Custom Cable Q-2V05A0003048I	Fakra II (Gen 2.0) Plug	Male	Free Hanging (In-Line)	Female	50 Ohms	Black	Shielded	RG-174	Free Hanging (In-Line)	1 GHz	SMA Jack	50 Ohms	50 Ohms	SMA to Fakra II	48 in	1200 mm	4 ft
Amphenol Custom Cable Q-2V05A0003012I	Fakra II (Gen 2.0) Plug	Male	Free Hanging (In-Line)	Female	50 Ohms	Black	Shielded	RG-174	Free Hanging (In-Line)	1 GHz	SMA Jack	50 Ohms	50 Ohms	SMA to Fakra II	12 "	304.8 mm
Amphenol Custom Cable Q-2V05A0005003M	Fakra II (Gen 2.0) Plug	Male	Free Hanging (In-Line)	Female	50 Ohms	Copper	Shielded	RG-316	Free Hanging (In-Line)	3 GHz	SMA Jack	50 Ohms	50 Ohms	SMA to Fakra II	118.1 in	3 m	9.8 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 93.78
		25	$ 87.31
		50	$ 80.84
		100	$ 75.29
		250	$ 70.67

Description

General part information

Q-2V05A0 Series

Cable Assembly Coaxial SMA to Fakra II RG-316 118.1" (3.0m) 9.8'

Documents

Technical documentation and resources

No documents available
