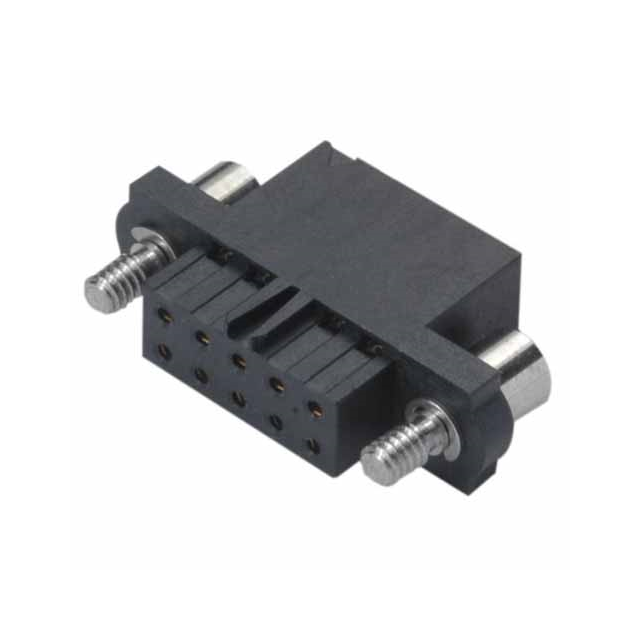

Specification	M80-4564298

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Screw Lock
Features	Jackscrews, Polarizing Key
Insulation Material	Glass Filled, Nylon 4/6, Polyamide (PA46)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	42
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Pitch	0.079 in
Row Spacing	0.079 in

M80-456 Series

Part	Note	Color	Row Spacing	Pitch	Operating Temperature (Max)	Operating Temperature (Min)	Features	Number of Rows	Number of Positions	Mounting Type	Insulation Material	Fastening Type	Contact Type	Contact Termination	Connector Type
Harwin Inc. M80-4564298	Contacts Not Included	Black	0.079 in	0.079 in	125 °C	-55 °C	Jackscrews Polarizing Key	2	42	Free Hanging (In-Line)	Glass Filled Nylon 4/6 Polyamide (PA46)	Screw Lock	Female Socket	Crimp	Receptacle
Harwin Inc. M80-4563498	Contacts Not Included	Black	0.079 in	0.079 in	125 °C	-55 °C	Jackscrews Polarizing Key	2	34	Free Hanging (In-Line)	Glass Filled Nylon 4/6 Polyamide (PA46)	Screw Lock	Female Socket	Crimp	Receptacle
Harwin Inc. M80-4561498	Contacts Not Included	Black	0.079 in	0.079 in	125 °C	-55 °C	Jackscrews Polarizing Key	2	14	Free Hanging (In-Line)	Glass Filled Nylon 4/6 Polyamide (PA46)	Screw Lock	Female Socket	Crimp	Receptacle
Harwin Inc. M80-4565098	Contacts Not Included	Black	0.079 in	0.079 in	125 °C	-55 °C	Jackscrews Polarizing Key	2	50	Free Hanging (In-Line)	Glass Filled Nylon 4/6 Polyamide (PA46)	Screw Lock	Female Socket	Crimp	Receptacle
