83719 0021000

Active

Belden Inc.

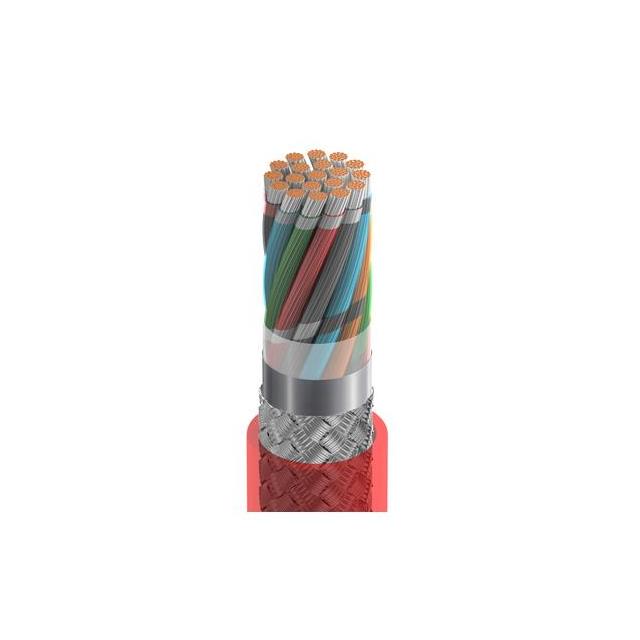

CABLE 19CON 16AWG RED SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 19CON 16AWG RED SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	83719 0021000

Cable Type	Multi-Conductor
Conductor Insulation	Fluorinated Ethylene-Propylene (FEP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19 Strands
Conductor Strand [custom]	29 AWG
Jacket (Insulation) Diameter [diameter]	10.24 mm
Jacket (Insulation) Diameter [diameter]	0.403 in
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP), Plenum
Jacket (Insulation) Thickness	0.356 mm
Jacket (Insulation) Thickness	0.014 in
Jacket Color	Red
Length	1000 ft
Length	304.8 m
Number of Conductors	19
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-70 °C
Shield Coverage	100 %, 85 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	16 AWG

Part	Voltage	Jacket Color	Operating Temperature [Max]	Operating Temperature [Min]	Shield Type	Length	Length	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Number of Conductors	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Conductor Material	Shield Coverage	Shield Material	Usage	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Wire Gauge	Length [x]	Length [x]
Belden Inc. 83719 0021000	300 V	Red	200 °C	-70 °C	Braid Foil	1000 ft	304.8 m	Fluorinated Ethylene-Propylene (FEP)	0.356 mm	0.014 in	19	10.24 mm	0.403 in	Multi-Conductor	Copper Tinned	85 % 100 %	Aluminum Copper Tinned	Audio Control Instrumentation	19 Strands	29 AWG	Fluorinated Ethylene-Propylene (FEP) Plenum	16 AWG
Belden Inc. 83719 002100	300 V	Red	200 °C	-70 °C	Braid Foil			Fluorinated Ethylene-Propylene (FEP)	0.356 mm	0.014 in	19	10.24 mm	0.403 in	Multi-Conductor	Copper Tinned	85 % 100 %	Aluminum Copper Tinned	Audio Control Instrumentation	19 Strands	29 AWG	Fluorinated Ethylene-Propylene (FEP) Plenum	16 AWG	30.5 m	100 ft
Belden Inc. 83719 002500	300 V	Red	200 °C	-70 °C	Braid Foil			Fluorinated Ethylene-Propylene (FEP)	0.356 mm	0.014 in	19	10.24 mm	0.403 in	Multi-Conductor	Copper Tinned	85 % 100 %	Aluminum Copper Tinned	Audio Control Instrumentation	19 Strands	29 AWG	Fluorinated Ethylene-Propylene (FEP) Plenum	16 AWG	152.4 m	500 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 47.22

General part information

19 Conductor Multi-Conductor Cable Red 16 AWG Foil, Braid 1000.0' (304.8m)
