010256CD031

Active

Essentra Components

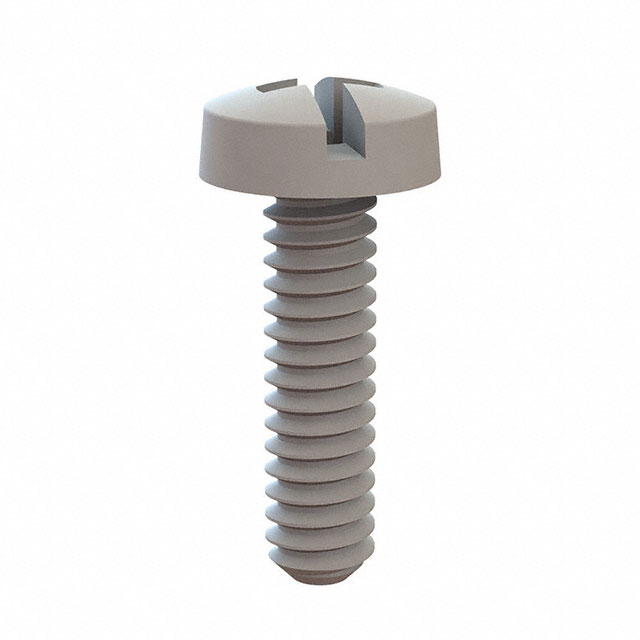

BINDER COMBINATION SCREW 2-56

Search across all available documentation for this part.

Active

Essentra Components

BINDER COMBINATION SCREW 2-56

Technical Specifications

Parameters and characteristics commom to parts in this series

BINDER COMBINATION SCREW 2-56 TH

Part	Drive Type	Material	Screw Head Type	Length - Overall	Length - Overall	Type	Thread Size	Length - Overall [x]	Length - Overall [x]	Length - Below Head [x]	Length - Below Head [x]	Length - Below Head	Length - Below Head	Length - Below Head	Head Height [z]	Head Height [z]	Head Diameter [diameter]	Head Diameter [diameter]
Essentra Components 010256CD009	Combination	Nylon	Binding Head	0.232 in	5.89 mm	Machine Screw	#2-56
Essentra Components 010256CD018	Combination	Nylon	Binding Head			Machine Screw	#2-56	8.28 mm	0.326 in	4.78 mm	0.188 in
Essentra Components 010256CD025	Combination	Nylon	Binding Head			Machine Screw	#2-56	9.86 mm	0.388 in			6.35 mm	0.25 in	0.25 in
Essentra Components 010256CD015	Combination	Nylon	Binding Head			Machine Screw	#2-56	7.47 mm	0.294 "			3.96 mm	0.156 in	0.15625 in	3.51 mm	0.138 in	0.176 "	4.47 mm
Essentra Components 010256CD028	Combination	Nylon	Binding Head			Machine Screw	#2-56	10.64 mm	0.419 "						3.51 mm	0.138 in	0.176 "	4.47 mm
Essentra Components 010256CD031	Combination	Nylon	Binding Head	0.451 in	11.46 mm	Machine Screw	#2-56			7.95 mm	0.313 in				3.51 mm	0.138 in	0.176 "	4.47 mm
Essentra Components 010256CD112	Combination	Nylon	Binding Head			Machine Screw	#2-56			28.58 mm	1.125 in				3.51 mm	0.138 in	0.176 "	4.47 mm
Essentra Components 010256CD037	Combination	Nylon	Binding Head			Machine Screw	#2-56	13.03 mm	0.513 in			0.375 "	0.375 "	9.53 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.06

General part information

#2-56 Binding Head Machine Screw Combination Drive Nylon
