1081A 0102000

Active

Belden Inc.

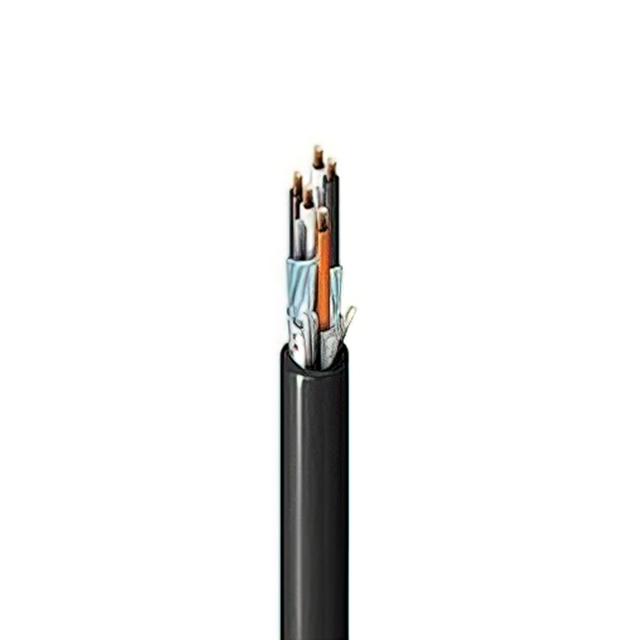

MULTI-PAIR 73COND 20/22AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 73COND 20/22AWG

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1081A 0102000	1081A Series

Cable Type	Multi-Pair	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare	Copper, Bare
Conductor Strand	30, 7 Strands, 28 AWG (2)	7 - 30
Features	Rip Cord, Drain Wire	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	1.091 in	1.091 in
Jacket (Insulation) Diameter [diameter]	27.71 mm	27.71 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.074 in	0.074 in
Jacket (Insulation) Thickness	1.88 mm	1.88 mm
Jacket Color	Black	Black
Length [x]	609.6 m	609.6 m
Length [x]	2000 ft	2000 ft
Number of Conductors	73	73
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-30 ░C	-30 ░C
Ratings	UL Style 2464	UL Style 2464
Shield Coverage	100 %	100 %
Shield Material	Aluminum	Aluminum
Shield Type	Foil	Foil
Wire Gauge	22, 20	22, 20

MULTI-PAIR 73COND 20/22AWG

Part	Cable Type	Conductor Material	Conductor Strand	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Insulation	Ratings	Wire Gauge	Length [x]	Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Shield Material	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Type	Features	Number of Conductors	Shield Coverage	Jacket (Insulation) Material
Belden Inc. 1081A 0102000	Multi-Pair	Copper, Bare	7 Strands, 28 AWG (2), 30	0.074 in	1.88 mm	Poly-Vinyl Chloride (PVC)	UL Style 2464	20, 22	609.6 m	2000 ft	-30 ░C	105 ░C	Aluminum	Black	1.091 in	27.71 mm	Foil	Drain Wire, Rip Cord	73	100 %	Poly-Vinyl Chloride (PVC)
Belden Inc. 1081A 0105000	Multi-Pair	Copper, Bare	7 Strands, 28 AWG (2), 30	0.074 in	1.88 mm	Poly-Vinyl Chloride (PVC)	UL Style 2464	20, 22			-30 ░C	105 ░C	Aluminum	Black	1.091 in	27.71 mm	Foil	Drain Wire, Rip Cord	73	100 %	Poly-Vinyl Chloride (PVC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	2000	$ 20.02

General part information

73 (36.5 Pair Twisted) Conductor Multi-Pair Cable Black 20 AWG, 22 AWG Foil 2000.0' (609.6m)
