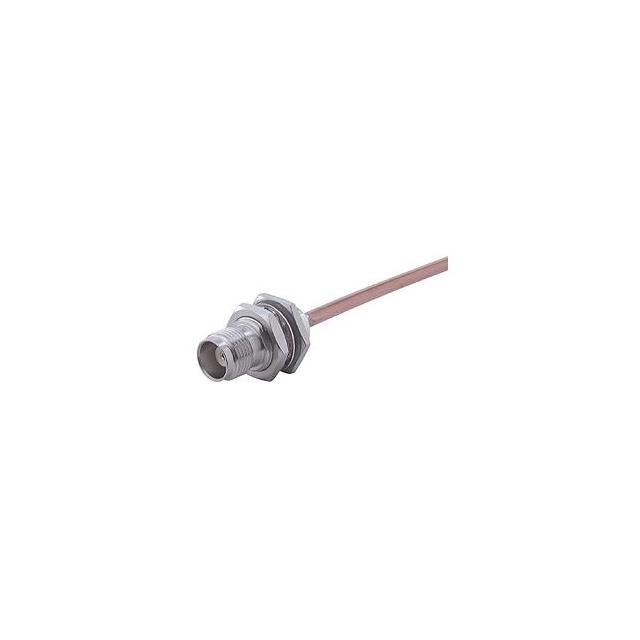

Specification	24_TNC-50-3-30/133_NH

Body Finish	White Bronze
Body Material	Brass
Cable Group	RG-141
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Jack, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE), Perfluoroalkoxy (PFA)
Fastening Type	Threaded
Frequency - Max	11 GHz
Housing Color	Silver
Impedance	50 Ohm
Mating Cycles	500 cycles
Mounting Feature	Bulkhead, Front Side Nut
Mounting Type	Panel Mount
Number of Ports	1
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Shield Termination	Solder
Voltage Rating	500 V

24_TNC-50 Series

Part	Mounting Feature	Contact Termination	Connector Type	Connector Style	Mounting Type	Fastening Type	Housing Color	Center Contact Material	Frequency - Max	Number of Ports	Shield Termination	Impedance	Body Finish	Body Material	Operating Temperature (Min)	Operating Temperature (Max)	Mating Cycles	Voltage Rating	Dielectric Material	Center Contact Plating	Cable Group
Huber+Suhner, Inc. 24_TNC-50-4-52/133_NE	Bulkhead Front Side Nut	Crimp	Female Socket Jack	TNC	Panel Mount	Threaded	Silver	Beryllium Copper	15 GHz	1	Crimp	50 Ohm	White Bronze	Brass	-65 °C	165 °C	500 cycles	500 V	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold
Huber+Suhner, Inc. 24_TNC-50-2-29/133_NH	Bulkhead Front Side Nut	Crimp	Female Socket Jack	TNC	Panel Mount	Threaded	Silver	Beryllium Copper Brass	11 GHz	1	Crimp	50 Ohm	White Bronze	Brass	-65 °C	165 °C	500 cycles	500 V	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	RD-316
Huber+Suhner, Inc. 24_TNC-50-1-1/133_NH
Huber+Suhner, Inc. 24_TNC-50-3-23/133_NE	Bulkhead Front Side Nut	Crimp	Female Socket Jack	TNC	Panel Mount	Threaded	Silver	Beryllium Copper	11 GHz	1	Crimp	50 Ohm	White Bronze	Brass	-65 °C	165 °C	500 cycles	500 V	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	RG-58
Huber+Suhner, Inc. 24_TNC-50-2-27/133_NE	Bulkhead Front Side Nut	Crimp	Female Socket Jack	TNC	Panel Mount	Threaded	Silver	Beryllium Copper	11 GHz	1	Crimp	50 Ohm	White Bronze	Brass	-65 °C	165 °C	500 cycles	500 V	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	188 316 RG-174
Huber+Suhner, Inc. 24_TNC-50-3-30/133_NH	Bulkhead Front Side Nut	Solder	Female Socket Jack	TNC	Panel Mount	Threaded	Silver	Beryllium Copper	11 GHz	1	Solder	50 Ohm	White Bronze	Brass	-65 °C	165 °C	500 cycles	500 V	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	RG-141
Huber+Suhner, Inc. 24_TNC-50-7-5/133_NE	Bulkhead Front Side Nut	Crimp	Female Socket Jack	TNC	Panel Mount	Threaded	Silver	Bronze	11 GHz	1	Crimp	50 Ohm	White Bronze	Brass	-65 °C	165 °C	500 cycles	500 V	Polytetrafluoroethylene (PTFE)	Gold
Huber+Suhner, Inc. 24_TNC-50-1-1/133_NE	Bulkhead	Solder	Female Socket Jack	TNC	Panel Mount	Threaded	Silver	Beryllium Copper	11 GHz	1	Clamp	50 Ohm	Tri-Metal	Brass	-65 °C	165 °C			Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	196 RG-178
