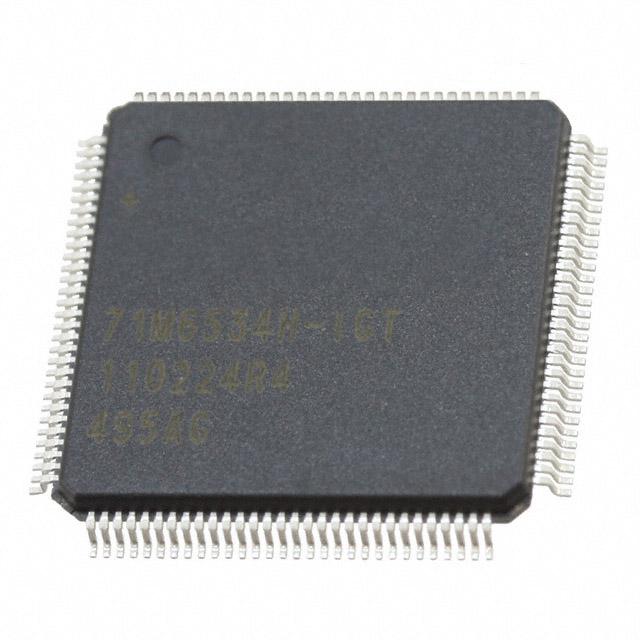

71M6534H-IGT/F

Active

Analog Devices Inc./Maxim Integrated

IC ENERY METER 3PH 256K 120-LQFP

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

IC ENERY METER 3PH 256K 120-LQFP

Technical Specifications

Parameters and characteristics commom to parts in this series

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	90	$ 7.38

BOARD DEMO 71M6534H

Part	Type	Supplied Contents	Utilized IC / Part	Function	Primary Attributes	Voltage - I/O Low	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - I/O High	Package / Case	Measurement Error	Input Impedance [Max]	Input Impedance [Min]	Supplier Device Package	Voltage - Supply [Min]	Voltage - Supply [Max]	Meter Type
Analog Devices Inc./Maxim Integrated 71M6534H-DB	Power Management	Board(s), Cable(s), Power Supply	71M6534H	Energy/Power Meter	Three Phase Power Meter
Analog Devices Inc./Maxim Integrated 71M6534-IGT/F						0.8 V	Surface Mount	85 °C	-40 °C	2 V	120-LQFP	0.1 %	90 kOhm	40 kOhm	120-LQFP (14x14)	3 V	3.6 V	3 Phase
Analog Devices Inc./Maxim Integrated 71M6534H-IGT/F						0.8 V	Surface Mount	85 °C	-40 °C	2 V	120-LQFP	0.1 %	90 kOhm	40 kOhm	120-LQFP (14x14)	3 V	3.6 V	3 Phase
Analog Devices Inc./Maxim Integrated 71M6534-IGTR/F						0.8 V	Surface Mount	85 °C	-40 °C	2 V	120-LQFP	0.1 %	90 kOhm	40 kOhm	120-LQFP (14x14)	3 V	3.6 V	3 Phase
Analog Devices Inc./Maxim Integrated 71M6534H-IGTR/F						0.8 V	Surface Mount	85 °C	-40 °C	2 V	120-LQFP	0.1 %	90 kOhm	40 kOhm	120-LQFP (14x14)	3 V	3.6 V	3 Phase

General part information

3 Phase Meter IC 120-LQFP (14x14)
