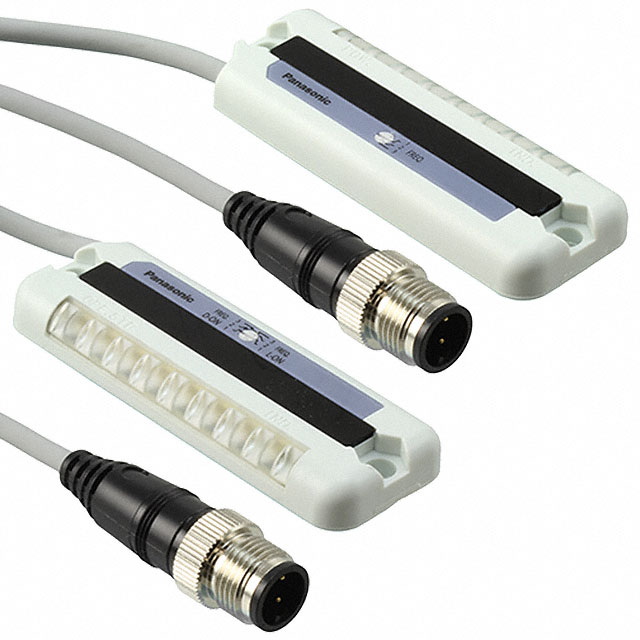

NA1-PK3-J

Active

Panasonic Industrial Automation Sales

SENSOR CROSS-BEAM 100MM NPN OPEN

Search across all available documentation for this part.

Active

Panasonic Industrial Automation Sales

SENSOR CROSS-BEAM 100MM NPN OPEN

Technical Specifications

Parameters and characteristics for this part

Specification	NA1-PK3-J

Cable Length	78.74 in
Cable Length	2 m
Connection Method	Cable
Ingress Protection	IP62
Light Source	Infrared
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Output Configuration	NPN - Open Collector
Response Time	10 ms
Sensing Distance	3.937 in
Sensing Distance	100 mm
Sensing Method	Through-Beam
Voltage - Supply [Max]	24 V
Voltage - Supply [Min]	12 V

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Ingress Protection	Output Configuration	Sensing Method	Sensing Distance	Sensing Distance	Light Source	Cable Length	Cable Length	Response Time	Connection Method
Panasonic Industrial Automation Sales NA1-PK3-J	12 V	24 V	55 °C	-10 °C	IP62	NPN - Open Collector	Through-Beam	3.937 in	100 mm	Infrared	78.74 in	2 m	10 ms	Cable
Panasonic Industrial Automation Sales NA1-PK3-PN	12 V	24 V	55 °C	-10 °C	IP62	PNP - Open Collector	Through-Beam	3.937 in	100 mm	Infrared	78.74 in	2 m	10 ms	Cable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Through-Beam Optical Sensor 3.937" (100mm) NPN - Open Collector
