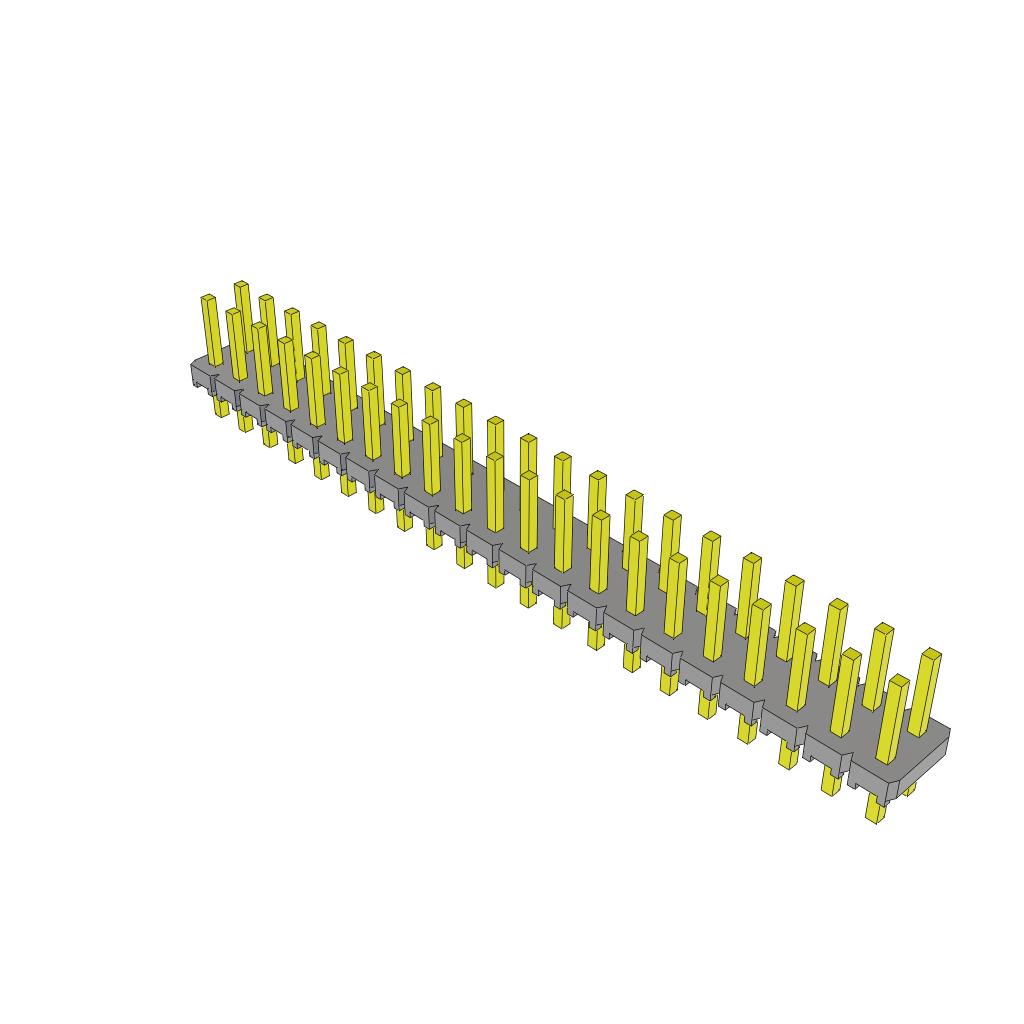

MTLW-121-05-G-D-185

Active

Samtec Inc.

CONN UNSHROUDED HEADER HDR 42 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE BULK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMTLW Datasheet Datasheet +1

MTLW-121-05-G-D-185

Active

Samtec Inc.

CONN UNSHROUDED HEADER HDR 42 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE BULK

Deep-Dive with AI

DocumentsMTLW Datasheet Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MTLW-121-05-G-D-185

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Length - Mating	0.185 in
Contact Length - Mating	4.7 mm
Contact Length - Post	0.09 "
Contact Length - Post	2.29 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	5.2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.06 in
Insulation Height [z]	1.52 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	42
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	8.51 mm
Overall Contact Length	0.335 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

MTLW-121 Series

Part	Number of Positions	Connector Type	Contact Finish - Post	Insulation Height [z]	Insulation Height [z]	Termination	Shrouding	Number of Rows	Contact Finish - Mating	Contact Length - Post	Contact Length - Post [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Overall Contact Length	Overall Contact Length	Contact Type	Contact Material	Contact Shape	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Contact Length - Mating [x]	Contact Length - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Style	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Insulation Material	Insulation Color	Material Flammability Rating	Contact Length - Mating	Contact Length - Post	Contact Length - Post [x]
Samtec Inc. MTLW-121-08-G-D-235	42	Header	Gold	0.06 in	1.52 mm	Solder	Unshrouded	2	Gold	5.97 mm	0.235 in	3 µin	0.076 µm	All	13.46 mm	0.53 in	Male Pin	Phosphor Bronze	Square	Push-Pull	10 çin	0.25 çm	Through Hole	0.235 in	5.97 mm	-55 °C	125 °C	2.54 mm	0.1 in	Board to Board Cable	5.2 A	0.1 in	2.54 mm	Liquid Crystal Polymer (LCP)	Black	UL94 V-0
Samtec Inc. MTLW-121-07-T-D-185
Samtec Inc. MTLW-121-07-T-S-280
Samtec Inc. MTLW-121-07-T-S-190
Samtec Inc. MTLW-121-05-G-D-185	42	Header	Gold	0.06 in	1.52 mm	Solder	Unshrouded	2	Gold	2.29 mm		3 µin	0.076 µm	All	8.51 mm	0.335 in	Male Pin	Phosphor Bronze	Square	Push-Pull	10 çin	0.25 çm	Through Hole		4.7 mm	-55 °C	125 °C	2.54 mm	0.1 in	Board to Board Cable	5.2 A	0.1 in	2.54 mm	Liquid Crystal Polymer (LCP)	Black	UL94 V-0	0.185 in	0.09 "
Samtec Inc. MTLW-121-07-T-S-310	21	Header	Tin	0.06 in	1.52 mm	Solder	Unshrouded	1			0.06 in			All	10.92 mm	0.43 in	Male Pin	Phosphor Bronze	Square	Push-Pull			Through Hole		7.87 mm	-55 °C	105 ░C			Board to Board Cable	5.2 A	0.1 in	2.54 mm	Liquid Crystal Polymer (LCP)	Black	UL94 V-0	0.31 in		1.52 mm
Samtec Inc. MTLW-121-23-T-S-295	21	Header	Tin	0.06 in	1.52 mm	Solder	Unshrouded	1		2.29 mm				All	11.3 mm	0.445 "	Male Pin	Phosphor Bronze	Square	Push-Pull			Through Hole		7.49 mm	-55 °C	105 ░C			Board to Board Cable	5.2 A	0.1 in	2.54 mm	Liquid Crystal Polymer (LCP)	Black	UL94 V-0	0.295 in	0.09 "
Samtec Inc. MTLW-121-06-T-S-120	21	Header	Tin	0.06 in	1.52 mm	Solder	Unshrouded	1			0.12 in			All	7.62 mm	0.3 in	Male Pin	Phosphor Bronze	Square	Push-Pull			Through Hole		3.05 mm	-55 °C	105 ░C			Board to Board Cable	5.2 A	0.1 in	2.54 mm	Liquid Crystal Polymer (LCP)	Black	UL94 V-0	0.12 in		3.05 mm
Samtec Inc. MTLW-121-07-T-D-230
Samtec Inc. MTLW-121-08-G-D-350

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 6.56
		10	$ 6.06
		25	$ 5.73
		50	$ 5.53
		100	$ 4.15
Digikey	Bulk	1	$ 6.56

Description

General part information

MTLW-121 Series

Connector Header Through Hole 42 position 0.100" (2.54mm)

Documents

Technical documentation and resources

MTLW Datasheet

Datasheet

MTLW-121-05-G-D-185

Deep-Dive with AI

MTLW-121-05-G-D-185

Deep-Dive with AI

Technical Specifications

MTLW-121 Series

Pricing

Description

MTLW-121 Series

Documents

MTLW Datasheet

Datasheet

.100" Low Profile Variable Post Height Terminal Strip

MTLW-121 Series
