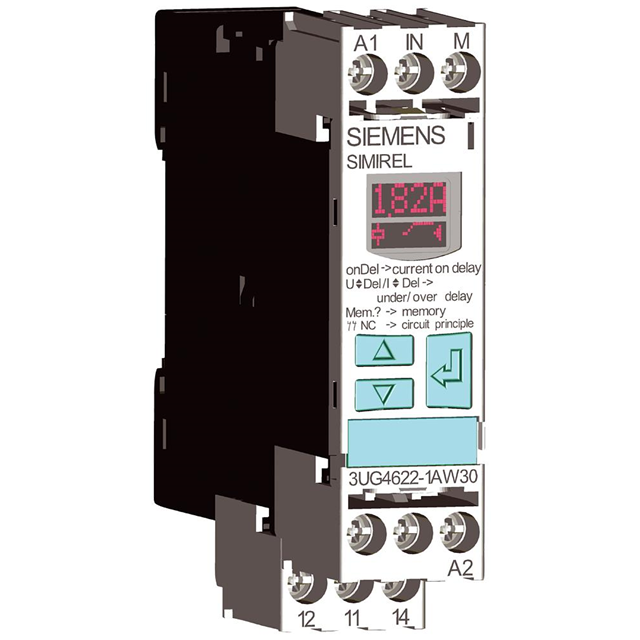

3UG46221AW30
ActiveSiemens
PILOT_SWITCH_CURR_3UG4622-AW30 0
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3UG46221AW30 |
|---|---|
| Contact Rating @ Voltage | 3 A, 400 VAC |
| Delay Time [Max] | 20 s |
| Delay Time [Min] | 0.1 Sec |
| Mounting Type | DIN Rail |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -25 °C |
| Trip Range [Max] | 15 A |
| Trip Range [Min] | 0.05 A |
| Type | Current Sensing AC/DC |
| Voltage - Supply [Max] | 264 VAC |
| Voltage - Supply [Min] | 20.4 VAC/DC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 349.37 | |
| 10 | $ 271.20 | |||
| 25 | $ 243.59 | |||
Description
General part information
3UG4622 Series
Current Sensing AC/DC 20.4 ~ 264VAC/DC
