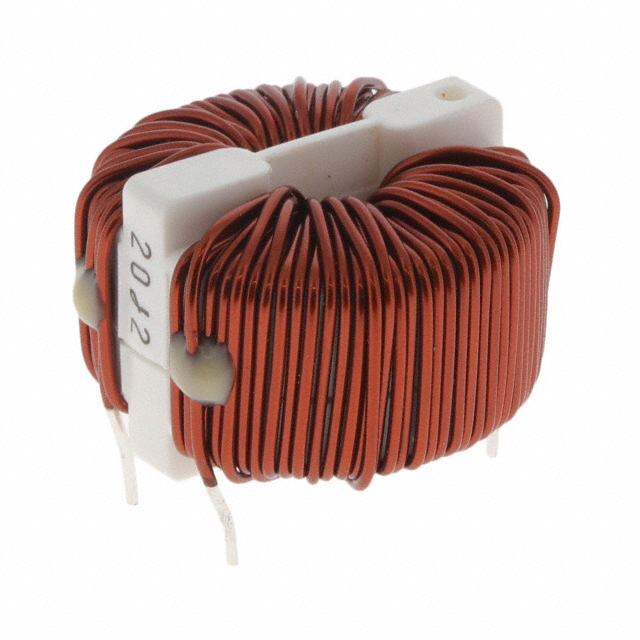

SC22-04-95H - SC22-04-95H

SC22-04-95H

Active
KEMET

COMMON MODE FILTER, 9.45MH, 4.3A ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSC22-04-95H SpecKEM_LF0005_SC.pdf+2
SC22-04-95H - SC22-04-95H

SC22-04-95H

Active
KEMET

COMMON MODE FILTER, 9.45MH, 4.3A ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsSC22-04-95H SpecKEM_LF0005_SC.pdf+2

Technical Specifications

Parameters and characteristics for this part

SpecificationSC22-04-95H
Current Rating (Max) [Max]4.3 A
DC Resistance (DCR) (Max) [Max]80 mOhm
Filter TypePower Line
Height (Max)19 mm
Height (Max) [Max]0.748 in
Inductance @ Frequency9.45 mH, 10 kHz
Mounting TypeThrough Hole
Number of Lines2
Operating Temperature [Max]120 °C
Operating Temperature [Min]-40 °C
Package / CaseNo Base, Horizontal
Package / Case4 Lead
Size / Dimension [diameter]30 mm
Size / Dimension [diameter]1.181 inches
Voltage Rating - AC250 V
Voltage Rating - DC250 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 4.02
10$ 3.26
40$ 2.83
NewarkEach 1$ 4.18
10$ 3.42
25$ 3.24
50$ 3.09
100$ 2.94
500$ 2.94

Description

General part information

SC22-04 Series

9.45 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 4.3A DCR 80mOhm
