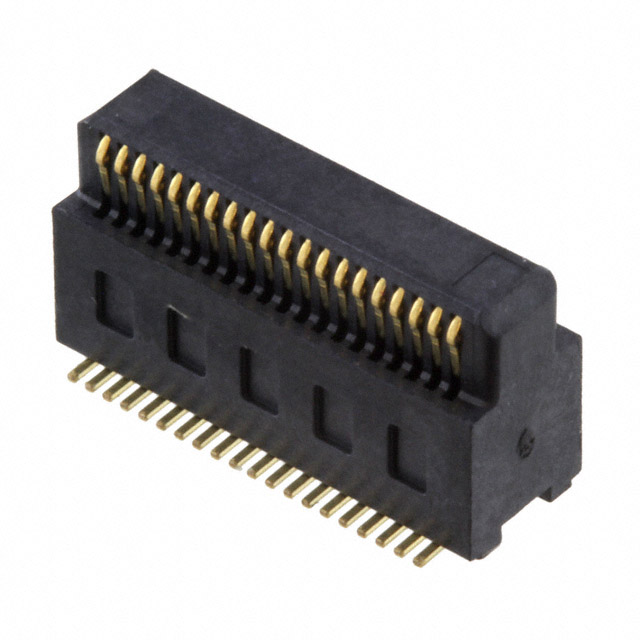

WR-40S-VFH30-N1

Active

JAE Electronics

0.5MM 2 40P VERTICAL WELDING SMD,P=0.5MM BOARD-TO-BOARD AND BACKPLANE CONNECTOR ROHS

Search across all available documentation for this part.

Active

JAE Electronics

0.5MM 2 40P VERTICAL WELDING SMD,P=0.5MM BOARD-TO-BOARD AND BACKPLANE CONNECTOR ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	WR-40S-VFH30-N1

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Height Above Board	6.25 mm
Height Above Board	0.246 in
Mated Stacking Heights	9 mm, 7 mm, 8 mm
Mounting Type	Surface Mount
Number of Positions	40
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Number of Rows	Pitch [x]	Pitch [x]	Mounting Type	Contact Finish	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Height Above Board	Height Above Board	Mated Stacking Heights	Connector Type
JAE Electronics WR-40S-VFH05-N1-R1500	2	0.5 mm	0.02 in	Surface Mount	Gold	40	4 Áin	0.1 Ám	3.75 mm	0.148 in	4.5 mm 5.5 mm 6.5 mm	Center Strip Contacts Receptacle
JAE Electronics WR-40S-VFH30-N1	2	0.5 mm	0.02 in	Surface Mount	Gold	40	4 Áin	0.1 Ám	6.25 mm	0.246 in	7 mm 8 mm 9 mm	Center Strip Contacts Receptacle
JAE Electronics WR-40S-VFH30-N1-R1000	2	0.5 mm	0.02 in	Surface Mount	Gold	40	4 Áin	0.1 Ám	6.25 mm	0.246 in	7 mm 8 mm 9 mm	Center Strip Contacts Receptacle
JAE Electronics WR-40S-VF-N1	2	0.5 mm	0.02 in	Surface Mount	Gold	40	4 Áin	0.1 Ám	3.25 mm	0.128 in	4 mm 5 mm 6 mm	Center Strip Contacts Receptacle
JAE Electronics WR-40S-VFH05-N1	2	0.5 mm	0.02 in	Surface Mount	Gold	40	4 Áin	0.1 Ám	3.75 mm	0.148 in	4.5 mm 5.5 mm 6.5 mm	Center Strip Contacts Receptacle
JAE Electronics WR-40S-VF-N1-R1500	2	0.5 mm	0.02 in	Surface Mount	Gold	40	4 Áin	0.1 Ám	3.25 mm	0.128 in	4 mm 5 mm 6 mm	Center Strip Contacts Receptacle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

40 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
