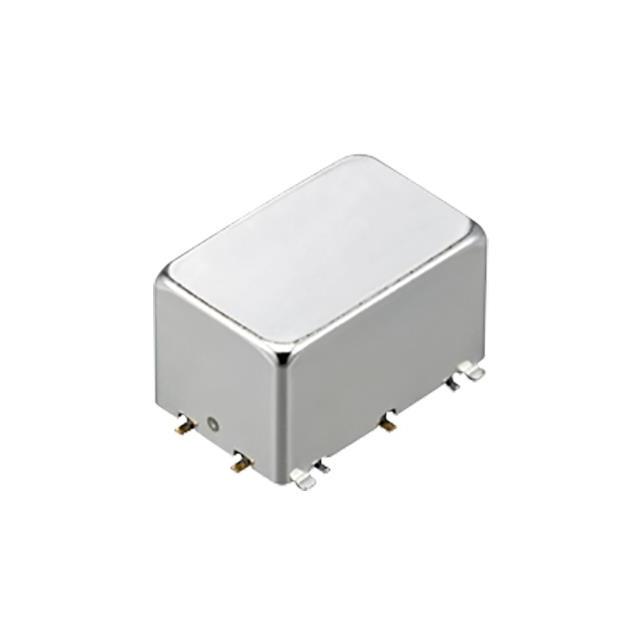

ARJ2024

Active

Panasonic Electric Works

RELAY RF DPDT 300MA 24V

Search across all available documentation for this part.

Active

Panasonic Electric Works

RELAY RF DPDT 300MA 24V

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Must Operate Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Coil Type	Coil Resistance	Contact Rating (Current)	Mounting Type	Must Release Voltage	Contact Material	Switching Voltage	Coil Power	Operate Time	Coil Current	Release Time	Contact Form	Coil Voltage
Panasonic Electric Works ARJ2003	PC Pin	2.25 VDC	70 °C	-30 ░C	Non Latching	45 Ohms	300 mA	Through Hole	0.3 VDC	Gold Plating	30 VDC	200 mW	5 ms	66.7 mA	5 ms	DPDT (2 Form C)
Panasonic Electric Works ARJ2024	PC Pin	18 VDC	70 °C	-30 ░C	Non Latching	2.88 kOhms	300 mA	Through Hole	2.4 VDC	Gold Plating	30 VDC	200 mW	5 ms	8.3 mA	5 ms	DPDT (2 Form C)	24 VDC
Panasonic Electric Works ARJ2012	PC Pin	9 VDC	70 °C	-30 ░C	Non Latching	720 Ohms	300 mA	Through Hole	1.2 VDC	Gold Plating	30 VDC	200 mW	5 ms	16.7 mA	5 ms	DPDT (2 Form C)	12 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	50	$ 108.28
