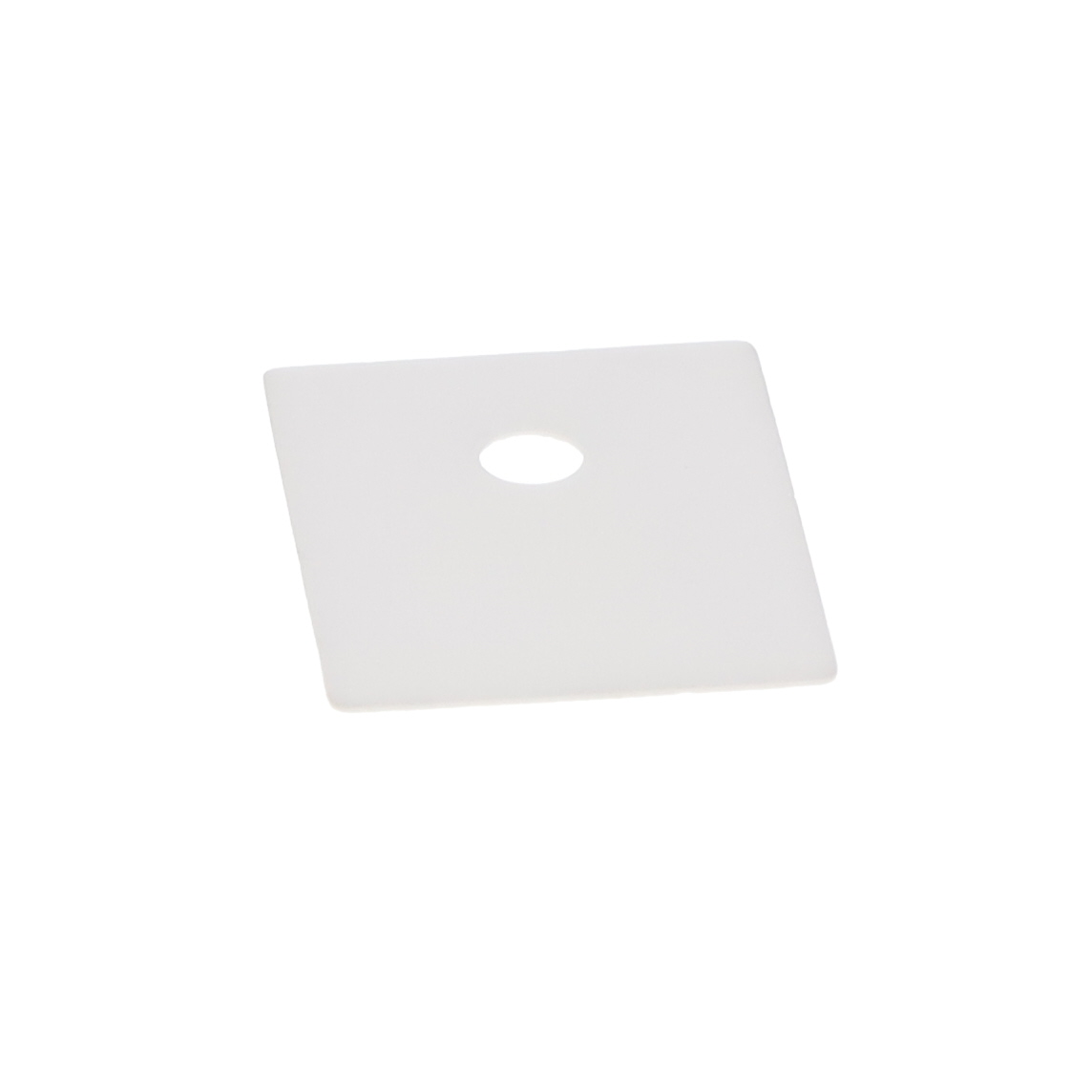

XL25W-TO3P-25-20-0.64
Activet-Global Technology
CERAMIC HEAT SPREADER 25X20MM WH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XL25W-TO3P-25-20-0.64
Activet-Global Technology
CERAMIC HEAT SPREADER 25X20MM WH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | XL25W-TO3P-25-20-0.64 | XL25W Series |
|---|---|---|
| Attachment Method | Thermal Tape | Thermal Tape |
| Fin Height | - | 0.039 in |
| Fin Height | - | 1 mm |
| Fin Height | - | 12.1 mm |
| Fin Height | - | 0.476 in |
| Length | 25 mm | 18.5 - 28 mm |
| Length | 0.984 in | 0.728 - 1.102 in |
| Length | - | 0.787 " |
| Length | - | 20 mm |
| Material | Ceramic | Ceramic |
| Package Cooled | TO-3P | TO-264, TO-220, TO-3P, TO-247 |
| Shape | Rectangular | Rectangular |
| Type | Heat Spreader | Heat Spreader |
| Width | - | 17 - 22 mm |
| Width | - | 0.669 - 0.866 " |
| Width | - | 0.472 - 0.551 in |
| Width | - | 12 - 14 mm |
| Width [y] | 20 mm | 20 mm |
| Width [y] | 0.787 in | 0.787 in |
XL25W Series
CERAMIC HEAT SPREADER 28X22MM WH
| Part | Attachment Method | Package Cooled | Material | Width [x] | Width [x] | Length | Length | Type | Shape | Length [x] | Length [x] | Width | Width | Fin Height [z] | Fin Height [z] | Width [y] | Width [y] | Fin Height | Fin Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
t-Global Technology XL25W-TO264-28-22-0.64 | Thermal Tape | TO-264 | Ceramic | 22 mm | 0.866 " | 28 mm | 1.102 in | Heat Spreader | Rectangular | ||||||||||
t-Global Technology XL25W-TO220-20-14-0.64 | Thermal Tape | TO-220 | Ceramic | Heat Spreader | Rectangular | 0.787 " | 20 mm | 0.551 in | 14 mm | ||||||||||
t-Global Technology XL25W-TO3P-25-20-1 | Thermal Tape | TO-3P | Ceramic | 25 mm | 0.984 in | Heat Spreader | Rectangular | 0.039 in | 1 mm | 20 mm | 0.787 in | ||||||||
t-Global Technology XL25W-TO264-28-22-1 | Thermal Tape | TO-264 | Ceramic | 22 mm | 0.866 " | 28 mm | 1.102 in | Heat Spreader | Rectangular | 0.039 in | 1 mm | ||||||||
t-Global Technology XL25W-TO247-22-17-0.64 | Thermal Tape | TO-247 | Ceramic | 17 mm | 0.669 in | 22 mm | 0.866 " | Heat Spreader | Rectangular | ||||||||||
t-Global Technology XL25W-TO220-18.5-12-1 | Thermal Tape | TO-220 | Ceramic | 18.5 mm | 0.728 " | Heat Spreader | Rectangular | 0.472 in | 12 mm | 12.1 mm | 0.476 in | ||||||||
t-Global Technology XL25W-TO247-22-17-1 | Thermal Tape | TO-247 | Ceramic | 17 mm | 0.669 in | 22 mm | 0.866 " | Heat Spreader | Rectangular | 0.039 in | 1 mm | ||||||||
t-Global Technology XL25W-TO3P-25-20-0.64 | Thermal Tape | TO-3P | Ceramic | 25 mm | 0.984 in | Heat Spreader | Rectangular | 20 mm | 0.787 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.58 | |
| 10 | $ 0.55 | |||
| 100 | $ 0.50 | |||
| 1000 | $ 0.40 | |||
| 5000 | $ 0.39 | |||
| 10000 | $ 0.36 | |||
Description
General part information
XL25W Series
Heat Sink TO-3P Ceramic Heat Spreader
