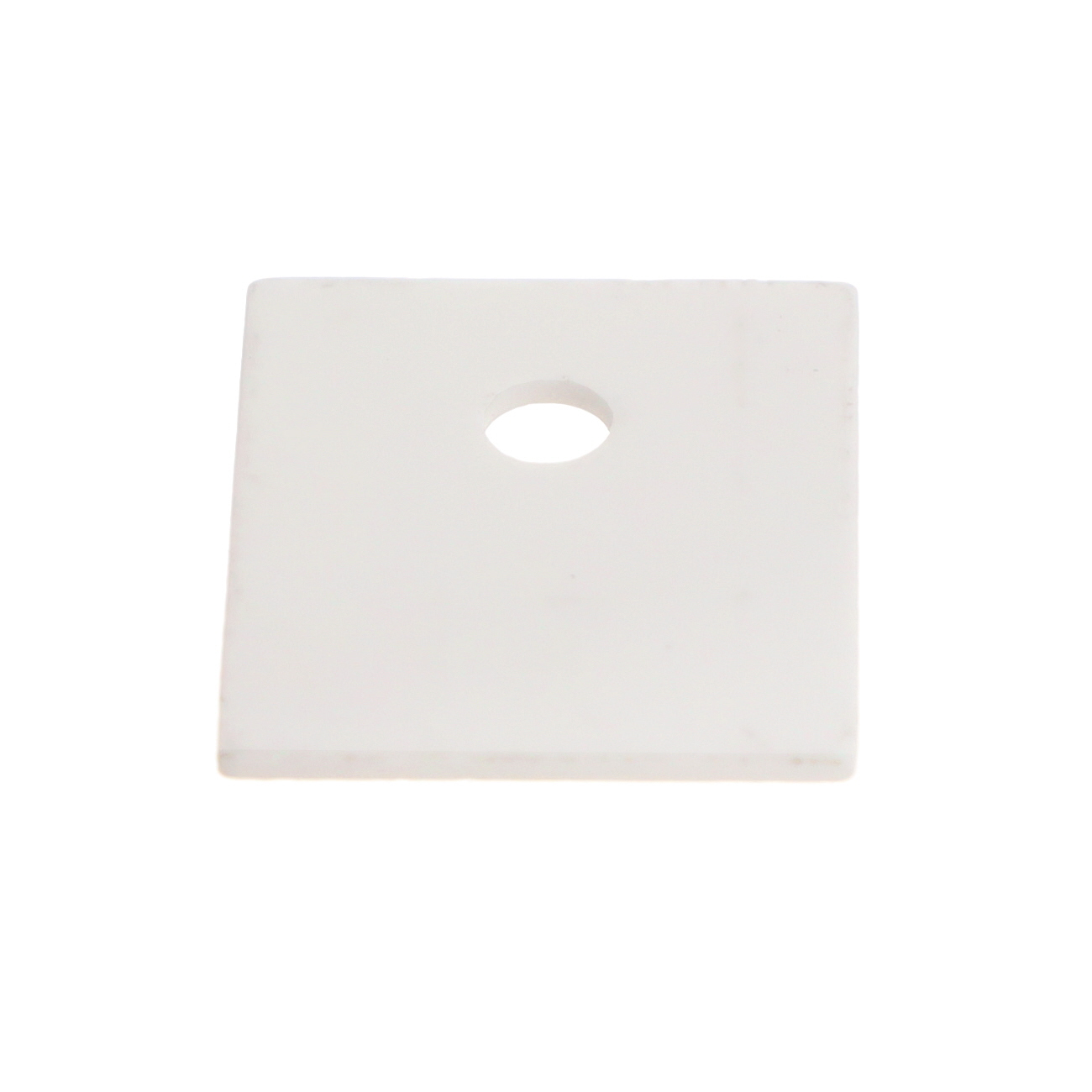

XL25W-TO3P-25-20-1

Active

t-Global Technology

CERAMIC HEAT SPREADER 25X20MM WH

Search across all available documentation for this part.

Active

t-Global Technology

CERAMIC HEAT SPREADER 25X20MM WH

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Sink TO-3P Ceramic Heat Spreader

Technical documentation and resources

Parameters and characteristics commom to parts in this series

CERAMIC HEAT SPREADER 28X22MM WH

Part	Attachment Method	Package Cooled	Material	Width [x]	Width [x]	Length	Length	Type	Shape	Length [x]	Length [x]	Width	Width	Fin Height [z]	Fin Height [z]	Width [y]	Width [y]	Fin Height	Fin Height
t-Global Technology XL25W-TO264-28-22-0.64	Thermal Tape	TO-264	Ceramic	22 mm	0.866 "	28 mm	1.102 in	Heat Spreader	Rectangular
t-Global Technology XL25W-TO220-20-14-0.64	Thermal Tape	TO-220	Ceramic					Heat Spreader	Rectangular	0.787 "	20 mm	0.551 in	14 mm
t-Global Technology XL25W-TO3P-25-20-1	Thermal Tape	TO-3P	Ceramic			25 mm	0.984 in	Heat Spreader	Rectangular					0.039 in	1 mm	20 mm	0.787 in
t-Global Technology XL25W-TO264-28-22-1	Thermal Tape	TO-264	Ceramic	22 mm	0.866 "	28 mm	1.102 in	Heat Spreader	Rectangular					0.039 in	1 mm
t-Global Technology XL25W-TO247-22-17-0.64	Thermal Tape	TO-247	Ceramic	17 mm	0.669 in	22 mm	0.866 "	Heat Spreader	Rectangular
t-Global Technology XL25W-TO220-18.5-12-1	Thermal Tape	TO-220	Ceramic			18.5 mm	0.728 "	Heat Spreader	Rectangular			0.472 in	12 mm					12.1 mm	0.476 in
t-Global Technology XL25W-TO247-22-17-1	Thermal Tape	TO-247	Ceramic	17 mm	0.669 in	22 mm	0.866 "	Heat Spreader	Rectangular					0.039 in	1 mm
t-Global Technology XL25W-TO3P-25-20-0.64	Thermal Tape	TO-3P	Ceramic			25 mm	0.984 in	Heat Spreader	Rectangular							20 mm	0.787 in
