General part information

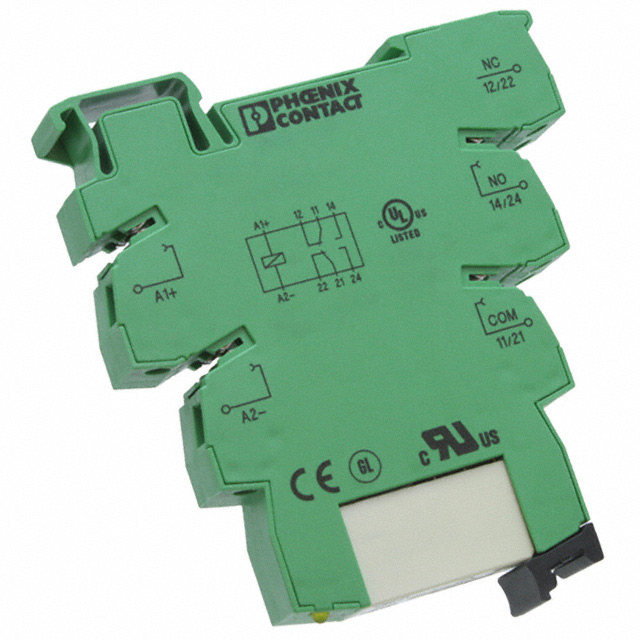

General Purpose Relay DPDT (2 Form C) 48VDC Coil DIN Rail
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | 2967248 | 29672 Series |
|---|---|---|
| Approval Agency | UKCA, CE | cULus, DNV, UL, EAC, UKCA, CE |
| Coil Current | 20 mA | 10 - 33 mA |
| Coil Resistance | 2.4 kOhms | 2.4 - 364 kOhms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 48 VDC | 12 - 60 VDC |
| Contact Form | DPDT (2 Form C) | DPDT (2 Form C) |
| Contact Material | Silver Nickel (AgNi) | Silver (Ag), Gold (Au), Silver Nickel (AgNi) |
| Contact Rating (Current) | 6 A | 6 - 50 mA |
| Features | Lighted Indicator, Socket Included | Lighted Indicator, Socket Included |
| Mounting Type | DIN Rail | DIN Rail |
| Operate Time | 8 ms | 8 ms |
| Operating Temperature [Max] | 60 °C | 60 °C |
| Operating Temperature [Min] | -25 °C | -40 - -25 °C |
| Relay Type | General Purpose | General Purpose |
| Release Time | 10 ms | 10 ms |
| Switching Voltage | 250 VAC, 250 VDC | 30 - 250 VDC |
| Termination Style | Screw Terminal | Screw Terminal |
RELAY GEN PURPOSE DPDT 50MA 12V
| Part | Operate Time | Termination Style | Relay Type | Switching Voltage | Approval Agency | Coil Voltage | Features | Operating Temperature [Min] | Operating Temperature [Max] | Coil Current | Contact Form | Contact Material | Contact Rating (Current) | Coil Resistance | Release Time | Mounting Type | Coil Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2967277 | 8 ms | Screw Terminal | General Purpose | 30 VAC, 36 VDC | cULus, DNV, EAC, UL | 12 VDC | Lighted Indicator, Socket Included | -40 °C | 60 °C | 33 mA | DPDT (2 Form C) | Gold (Au), Silver (Ag) | 50 mA | 364 kOhms | 10 ms | DIN Rail | Non Latching |
Phoenix Contact 2967293 | 8 ms | Screw Terminal | General Purpose | 250 VAC, 250 VDC | CE, UKCA | 60 VDC | Lighted Indicator, Socket Included | -40 °C | 60 °C | 10 mA | DPDT (2 Form C) | Silver Nickel (AgNi) | 6 A | 6 kOhms | 10 ms | DIN Rail | Non Latching |
Phoenix Contact 2967280 | 8 ms | Screw Terminal | General Purpose | 30 VAC, 36 VDC | cULus, DNV, EAC, UL | 48 VDC | Lighted Indicator, Socket Included | -25 °C | 60 °C | 20 mA | DPDT (2 Form C) | Gold (Au), Silver (Ag) | 50 mA | 2.4 kOhms | 10 ms | DIN Rail | Non Latching |
Phoenix Contact 2967248 | 8 ms | Screw Terminal | General Purpose | 250 VAC, 250 VDC | CE, UKCA | 48 VDC | Lighted Indicator, Socket Included | -25 °C | 60 °C | 20 mA | DPDT (2 Form C) | Silver Nickel (AgNi) | 6 A | 2.4 kOhms | 10 ms | DIN Rail | Non Latching |
Phoenix Contact 2967235 | 8 ms | Screw Terminal | General Purpose | 250 VAC, 250 VDC | CE, UKCA | 12 VDC | Lighted Indicator, Socket Included | -40 °C | 60 °C | 33 mA | DPDT (2 Form C) | Silver Nickel (AgNi) | 6 A | 364 Ohms | 10 ms | DIN Rail | Non Latching |
