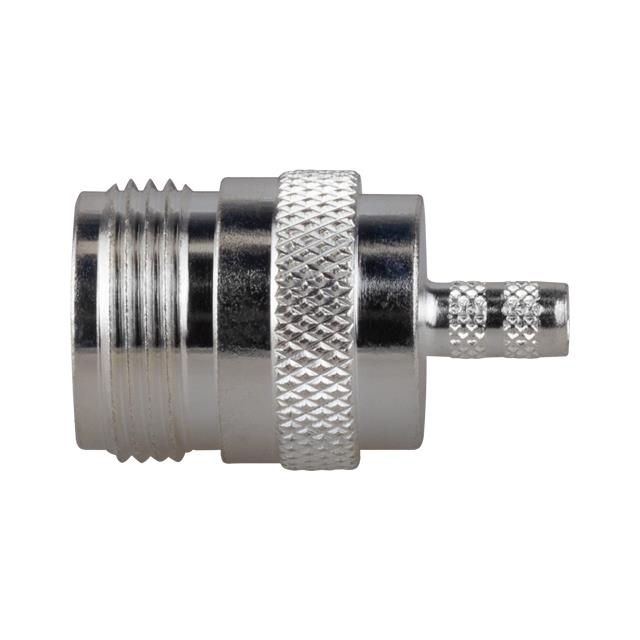

Specification	RFN-1028

Body Finish	Silver
Body Material	Brass
Cable Group	213, RG-8
Cable Group Current Rating	8 A
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Jack, Female Socket
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Frequency - Max	11 GHz
Housing Color	Silver
Impedance	50 Ohm
Insertion Loss	0.2 dB
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Shield Termination	Crimp
Voltage Rating	1000 V

- Series

Part	Operating Temperature (Max)	Operating Temperature (Min)	Dielectric Material	Body Material	Body Finish	Center Contact Material	Style	Convert To (Adapter End) Type	Convert To (Adapter End) Gender	Impedance	Center Gender	Conversion Type	Frequency - Max	Adapter Series	Center Contact Plating	Adapter Type	Convert From (Adapter End)	Mounting Type	Fastening Type	Convert To (Adapter End)	Insertion Loss	Mating Cycles
RF Industries RSA-3494	90 °C	-40 °C	Polytetrafluoroethylene (PTFE)	Brass	Gold	Beryllium Copper	Straight	SMA Plug	Male Pin	50 Ohm	Female Male	Between Series	6000 MHz	SMA to MHF	Gold	Plug to Jack	Female Socket MHF Jack	Free Hanging (In-Line)	Threaded
RF Industries RP-3405	85 °C	-65 °C	Polytetrafluoroethylene (PTFE)	Brass	Nickel	Beryllium Copper	Straight			50 Ohm	Female	Between Series	12.4 GHz	SMA to RP-SMA	Gold	Plug to Jack	Female Socket SMA Jack	Free Hanging (In-Line)	Threaded	Female Socket RP-SMA Plug
RF Industries RFT-1242	165 °C	-65 °C	Polytetrafluoroethylene (PTFE)	Brass	Nickel	Brass	Straight	TNC Plug	Male Pin	50 Ohm	Female Male	Same Series	7 GHz	TNC to TNC	Gold	Plug to Jack	Female Socket TNC Jack	Free Hanging (In-Line)	Snap-On Threaded
RF Industries RSA-3457			Polytetrafluoroethylene (PTFE)		Nickel		Straight	SMA Plug	Male Pin		Female Male	Between Series		SMA to UHF	Gold	Plug to Jack	Female Socket UHF Jack	Free Hanging (In-Line)	Threaded
RF Industries RFT-1230	85 °C	-65 °C	Polytetrafluoroethylene (PTFE)	Brass	Nickel	Brass	Straight	BNC Plug	Male Pin	50 Ohm	Female Male	Between Series	4 GHz	BNC to TNC	Gold	Plug to Jack	Female Socket TNC Jack	Free Hanging (In-Line)	Bayonet Lock Threaded
RF Industries RP-3402			Polytetrafluoroethylene (PTFE)	Brass	Nickel	Brass	Right Angle			50 Ohm	Female	Between Series	12.4 GHz	SMA to RP-SMA	Gold	Plug to Jack	Female Socket SMA Jack	Free Hanging (In-Line) Right Angle	Threaded	Female Socket RP-SMA Plug
RF Industries RSA-3472	85 °C	-65 °C	Polytetrafluoroethylene (PTFE)	Brass	Nickel	Phosphor Bronze	Straight	SMA Jack	Female Socket	50 Ohm	Female Male	Between Series	11 GHz	SMA to TNC	Gold	Plug to Jack	Male Pin TNC Plug	Free Hanging (In-Line)	Threaded		0.1 dB	500 cycles
RF Industries RT-1227			Polytetrafluoroethylene (PTFE)	Brass	Nickel	Brass	Right Angle			50 Ohm	Female Male	Same Series	7 GHz	TNC to TNC	Gold	Plug to Jack	Male Pin TNC Plug	Free Hanging (In-Line) Right Angle	Threaded	Female Socket TNC Jack
RF Industries RP-1234	85 °C	-65 °C	Polytetrafluoroethylene (PTFE)	Brass	Nickel	Phosphor Bronze	Straight	RP-TNC Plug	Female Socket	50 Ohm	Female Male	Between Series	7 GHz	RP-TNC to N	Gold	Plug to Jack	Female Socket N Jack	Free Hanging (In-Line)	Threaded
RF Industries RSA-3477	165 °C	-65 °C	Polytetrafluoroethylene (PTFE)	Brass	Nickel	Phosphor Bronze	Straight	N Jack	Female Socket	50 Ohm	Female	Between Series	12.4 GHz	SMA to N	Gold	Jack to Jack	Female Socket SMA Jack	Free Hanging (In-Line)	Threaded
