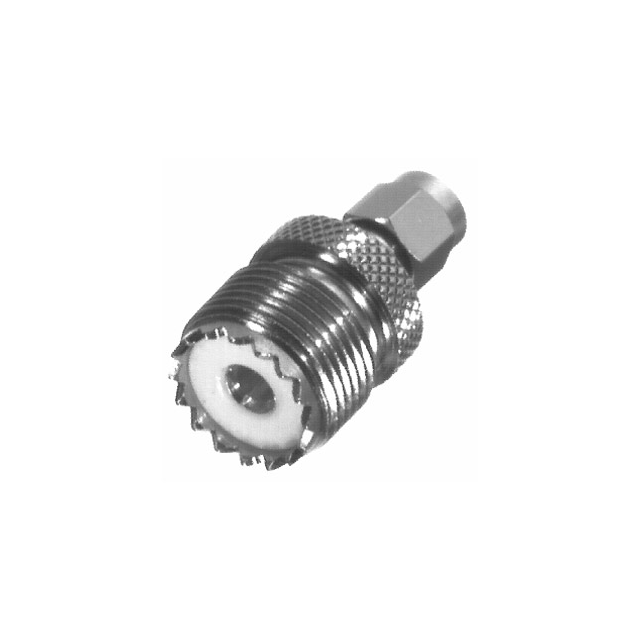

RSA-3457

Active

RF Industries

SMA MALE-UHF FEMALE

Deep-Dive with AI

Search across all available documentation for this part.

RSA-3457

Active

RF Industries

SMA MALE-UHF FEMALE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RSA-3457

Adapter Series	SMA to UHF
Adapter Type	Plug to Jack
Body Finish	Nickel
Center Contact Plating	Gold
Conversion Type	Between Series
Convert To (Adapter End)	SMA Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Mounting Type	Free Hanging (In-Line)
Style	Straight

- Series

Part	Convert From (Adapter End)	Mounting Type	Style	Frequency - Max [Max]	Adapter Type	Dielectric Material	Impedance	Center Contact Plating	Body Material	Adapter Series	Center Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Convert To (Adapter End)	Body Finish	Conversion Type	Center Gender	Fastening Type	Mating Cycles	Mounting Feature
RF Industries RSA-3494	MHF Jack Female Socket	Free Hanging (In-Line)	Straight	6000 MHz	Plug to Jack	Polytetrafluoroethylene (PTFE)	50 Ohms	Gold	Brass	SMA to MHF	Beryllium Copper	90 °C	-40 °C	Male Pin SMA Plug	Gold	Between Series
RF Industries RP-3405	Female Socket SMA Jack	Free Hanging (In-Line)	Straight	12.4 GHz	Plug to Jack	Polytetrafluoroethylene (PTFE)	50 Ohms	Gold	Brass	SMA to RP-SMA	Beryllium Copper	85 °C	-65 ░C	Female Socket RP-SMA Plug	Nickel	Between Series	Female to Female
RF Industries RSA-3457		Free Hanging (In-Line)	Straight		Plug to Jack	Polytetrafluoroethylene (PTFE)		Gold		SMA to UHF				Male Pin SMA Plug	Nickel	Between Series
RF Industries RFT-1230	TNC Jack Female Socket	Free Hanging (In-Line)	Straight	4 GHz	Plug to Jack	Polytetrafluoroethylene (PTFE)	50 Ohms	Gold	Brass	BNC to TNC	Brass	85 °C	-65 ░C	BNC Plug Male Pin	Nickel	Between Series		Bayonet Lock Threaded
RF Industries RP-3402	Female Socket SMA Jack	Free Hanging (In-Line) Right Angle	Right Angle	12.4 GHz	Plug to Jack	Polytetrafluoroethylene (PTFE)	50 Ohms	Gold	Brass	SMA to RP-SMA	Brass			Female Socket RP-SMA Plug	Nickel	Between Series	Female to Female
RF Industries RSA-3472		Free Hanging (In-Line)	Straight	11 GHz	Plug to Jack	Polytetrafluoroethylene (PTFE)	50 Ohms	Gold	Brass	SMA to TNC	Phosphor Bronze	85 °C	-65 ░C	Female Socket SMA Jack	Nickel	Between Series			500
RF Industries RP-1234	Female Socket N Jack	Free Hanging (In-Line)	Straight	7 GHz	Plug to Jack	Polytetrafluoroethylene (PTFE)	50 Ohms	Gold	Brass	RP-TNC to N	Phosphor Bronze	85 °C	-65 ░C	Female Socket RP-TNC Plug	Nickel	Between Series
RF Industries RSA-3406	SMB Jack Male Pin	Free Hanging (In-Line)	Straight	4 GHz	Jack to Jack	Polytetrafluoroethylene (PTFE)	50 Ohms	Gold	Brass	SMA to SMB	Beryllium Copper	165 °C	-65 ░C	Female Socket SMA Jack	Nickel	Between Series		Snap-On Threaded
RF Industries RFE-6105	UHF Mini Plug Male Pin	Free Hanging (In-Line)	Straight	2 GHz	Plug to Plug	Polyoxymethylene (POM) Acetal	50 Ohms	Gold	Brass	Mini to FME UHF	Brass	85 °C	-65 ░C	FME Plug Male Pin	Nickel	Between Series	Male to Male
RF Industries RSA-3413	Female Socket SMA Jack		Straight	4 GHz	Jack to Jack	Polytetrafluoroethylene (PTFE)	50 Ohms	Gold	Brass	BNC to SMA	Beryllium Copper	165 °C	-65 ░C	BNC Jack Female Socket	Nickel	Between Series	Female to Female	Bayonet Lock Threaded		Bulkhead

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 10.88
		50	$ 10.41
		100	$ 9.96

Description

General part information

- Series

Adapter Coaxial Connector UHF Jack, Female Socket To SMA Plug, Male Pin

Documents

Technical documentation and resources

No documents available
