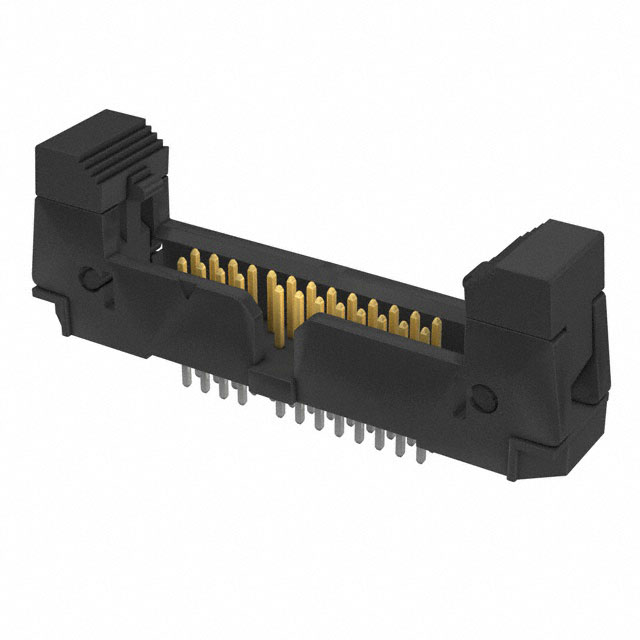

Specification	EHF-113-01-S-D

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 µin
Contact Length - Mating	0.12 in
Contact Length - Post	0.107 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating	1.75 A
Fastening Type	Eject Hooks, Latch Lock
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.325 in
Insulation Material	Glass Filled, Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	26
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Overall Contact Length	0.35 in
Pitch - Mating	0.05 in
Row Spacing - Mating	0.05 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder

EHF-113 Series

Part	Termination	Number of Positions	Contact Length - Mating	Operating Temperature (Max)	Operating Temperature (Min)	Number of Positions Loaded	Style	Insulation Height	Shrouding	Contact Finish - Post	Number of Rows	Features	Insulation Material	Connector Type	Contact Shape	Row Spacing - Mating	Current Rating	Insulation Color	Fastening Type	Contact Finish Thickness - Mating	Mounting Type	Pitch - Mating	Contact Finish - Mating	Contact Material	Contact Type	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Length - Post	Overall Contact Length
Samtec Inc. EHF-113-01-F-D-SM-LC-P	Solder	26	0.12 in	125 °C	-55 °C	All	Board Cable/Wire	0.325 in	Shrouded - 4 Wall	Tin	2	Board Lock Keying Slot Pick and Place	Glass Filled Liquid Crystal Polymer (LCP)	Header	Square	0.05 in	1.75 A	Black	Eject Hooks Latch Lock	3 µin	Surface Mount	0.05 in	Gold	Phosphor Bronze	Male Pin
Samtec Inc. EHF-113-01-LM-D-SM-LC-P	Solder	26	0.12 in	125 °C	-55 °C	All	Board Cable/Wire	0.325 in	Shrouded - 4 Wall	Tin	2	Board Lock Keying Slot Pick and Place	Glass Filled Liquid Crystal Polymer (LCP)	Header	Square	0.05 in	1.75 A	Black	Eject Hooks Latch Lock	10 µin	Surface Mount	0.05 in	Gold	Phosphor Bronze	Male Pin
Samtec Inc. EHF-113-01-S-D-SM-K-TR	Solder	26	0.12 in	125 °C	-55 °C	All	Board Cable/Wire	0.325 in	Shrouded - 4 Wall	Tin	2	Keying Slot Pick and Place	Glass Filled Liquid Crystal Polymer (LCP)	Header	Square	0.05 in	1.75 A	Black	Eject Hooks Latch Lock	30 µin	Surface Mount	0.05 in	Gold	Phosphor Bronze	Male Pin
Samtec Inc. EHF-113-01-L-D-SM-18-P	Solder	26	0.12 in	125 °C	-55 °C		Board Cable/Wire	0.325 in	Shrouded - 4 Wall	Tin	2	Keying Slot Pick and Place	Glass Filled Liquid Crystal Polymer (LCP)	Header	Square	0.05 in	1.75 A	Black	Eject Hooks Latch Lock	10 µin	Surface Mount	0.05 in	Gold	Phosphor Bronze	Male Pin	25
Samtec Inc. EHF-113-01-S-D-SM-LC-K	Solder	26	0.12 in	125 °C	-55 °C	All	Board Cable/Wire	0.325 in	Shrouded - 4 Wall	Tin	2	Board Lock Keying Slot Pick and Place	Glass Filled Liquid Crystal Polymer (LCP)	Header	Square	0.05 in	1.75 A	Black	Eject Hooks Latch Lock	30 µin	Surface Mount	0.05 in	Gold	Phosphor Bronze	Male Pin
Samtec Inc. EHF-113-01-H-D-SM-LC	Solder	26	0.12 in	125 °C	-55 °C	All	Board Cable/Wire	0.325 in	Shrouded - 4 Wall	Gold	2	Board Lock Keying Slot	Glass Filled Liquid Crystal Polymer (LCP)	Header	Square	0.05 in	1.75 A	Black	Eject Hooks Latch Lock	30 µin	Surface Mount	0.05 in	Gold	Phosphor Bronze	Male Pin		3 µin
Samtec Inc. EHF-113-01-LM-D-SM-P	Solder	26	0.12 in	125 °C	-55 °C	All	Board Cable/Wire	0.325 in	Shrouded - 4 Wall	Tin	2	Keying Slot Pick and Place	Glass Filled Liquid Crystal Polymer (LCP)	Header	Square	0.05 in	1.75 A	Black	Eject Hooks Latch Lock	10 µin	Surface Mount	0.05 in	Gold	Phosphor Bronze	Male Pin
Samtec Inc. EHF-113-01-H-D-RA	Solder	26	0.12 in	125 °C	-55 °C	All	Board Cable/Wire	0.263 in	Shrouded - 4 Wall	Gold	2	Keying Slot	Glass Filled Liquid Crystal Polymer (LCP)	Header	Square	0.05 in	1.75 A	Black	Eject Hooks Latch Lock	30 µin	Right Angle Through Hole	0.05 in	Gold	Phosphor Bronze	Male Pin		3 µin	0.09 in
Samtec Inc. EHF-113-01-L-D-SM-P	Solder	26	0.12 in	125 °C	-55 °C	All	Board Cable/Wire	0.325 in	Shrouded - 4 Wall	Tin	2	Keying Slot Pick and Place	Glass Filled Liquid Crystal Polymer (LCP)	Header	Square	0.05 in	1.75 A	Black	Eject Hooks Latch Lock	10 µin	Surface Mount	0.05 in	Gold	Phosphor Bronze	Male Pin
Samtec Inc. EHF-113-01-L-D-09	Solder	26	0.12 in	125 °C	-55 °C		Board Cable/Wire	0.325 in	Shrouded - 4 Wall	Tin	2	Keying Slot	Glass Filled Liquid Crystal Polymer (LCP)	Header	Square	0.05 in	1.75 A	Black	Eject Hooks Latch Lock	10 µin	Through Hole	0.05 in	Gold	Phosphor Bronze	Male Pin	25		0.107 in	0.35 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

EHF-113-01-S-D | Datasheet
