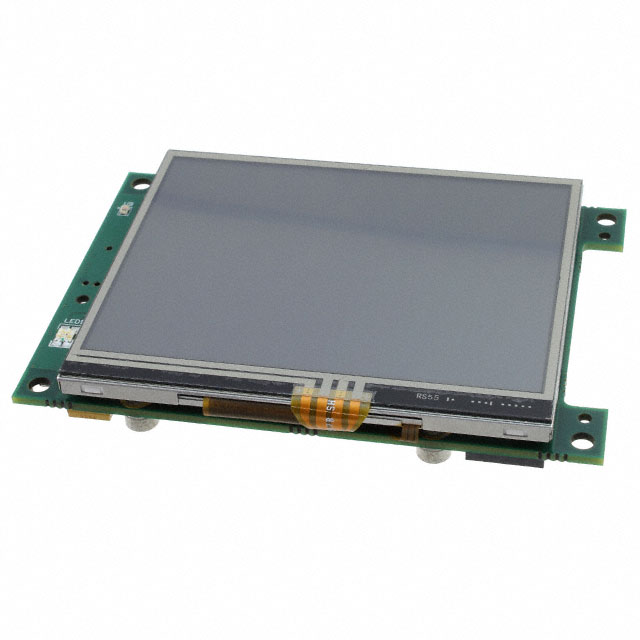

SIM115-A01-R45ALL-01

Obsolete

E2IP Technologies Inc.

LCD DISPLAY TFT 3.5" 320X240

Search across all available documentation for this part.

Obsolete

E2IP Technologies Inc.

LCD DISPLAY TFT 3.5" 320X240

Technical Specifications

Parameters and characteristics commom to parts in this series

LCD MODULE 3.5" 320X242X24BPP TF

Part	Interface	Viewing Area [y]	Viewing Area [x]	Display Type	Graphics Color	Display Mode	Dot Pixels	Dot Pixels [x]	Dot Pixels [y]	Backlight	Dot Pitch [y]	Dot Pitch [x]	Touchscreen
E2IP Technologies Inc. SIM115-A03-R45ALL-10	I2C, SPI, UART	52.56 mm	70.08 mm	TFT - Color	Blue, Green, Red	Transmissive	QVGA	320 pixels	240 pixels	LED - White	0.22 mm	0.22 mm	Resistive
E2IP Technologies Inc. SIM115-A01-R45ALL-01	Parallel/Serial	52.56 mm	70.08 mm	TFT - Color	Blue, Green, Red	Transmissive	QVGA	320 pixels	240 pixels	LED - White	0.22 mm	0.22 mm	Resistive
E2IP Technologies Inc. SIM115-A03-R45ALL-01	I2C, SPI, UART	52.56 mm	70.08 mm	TFT - Color	Blue, Green, Red	Transmissive	QVGA	320 pixels	240 pixels	LED - White	0.22 mm	0.22 mm	Resistive
E2IP Technologies Inc. SIM115-A02-N55ALL-10	I2C, SPI, UART	52.56 mm	70.08 mm	TFT - Color	Blue, Green, Red	Transmissive	QVGA	320 pixels	240 pixels	LED - White	0.22 mm	0.22 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Resistive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color Parallel/Serial 3.5" (88.90mm) 320 x 240 (QVGA)

Technical documentation and resources

No documents available
