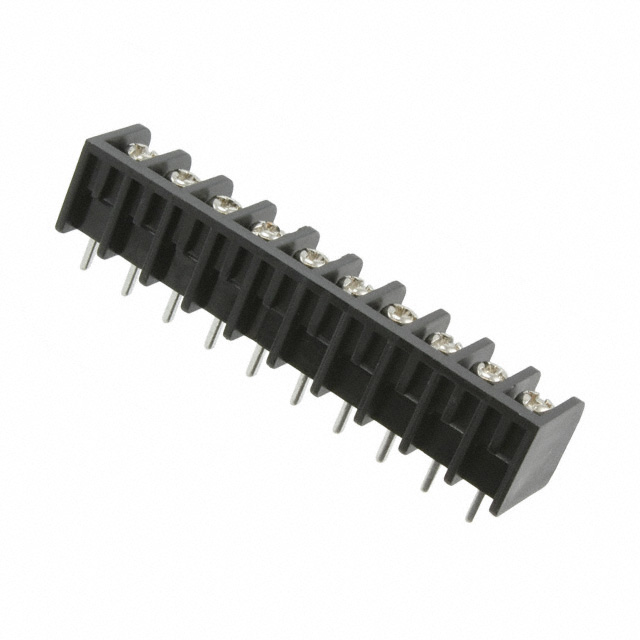

3PCV-10-006
ActiveTE Connectivity Raychem Cable Protection
3PCV-10-006=#3 TRIBARRIER TERM
Deep-Dive with AI
Search across all available documentation for this part.
3PCV-10-006
ActiveTE Connectivity Raychem Cable Protection
3PCV-10-006=#3 TRIBARRIER TERM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3PCV-10-006 |
|---|---|
| Barrier Type | 3 Wall (Tri) |
| Bottom Termination | PC Pin |
| Color | Black |
| Current Rating (Amps) | 10 A |
| Material - Insulation | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Circuits | 10 |
| Number of Rows | 1 |
| Number of Wire Entries | 10 |
| Operating Temperature | 120 °C |
| Pitch [x] | 0.25 in |
| Pitch [x] | 6.35 mm |
| Terminal Block Type | Barrier Block |
| Terminal Screw Finish | Zinc |
| Terminal Screw Material | Steel |
| Top Termination | Screws with Captive Plate |
| Voltage Rating | 300 VDC |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 17.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.53 | |
| 10 | $ 6.24 | |||
| 25 | $ 5.79 | |||
| 50 | $ 5.47 | |||
| 100 | $ 5.17 | |||
| 250 | $ 4.80 | |||
| 500 | $ 4.54 | |||
| 1000 | $ 4.29 | |||
Description
General part information
BUCHANAN 3 Series Series
10 Position Barrier Strip, Tri-Barrier, Printed Circuit Pin Bottom Termination, Wire-to-Board, 6.35 mm [.25 in] Centerline, 1 Row, BUCHANAN 3 Series
