N3433-5202RB

Active

3M (TC)

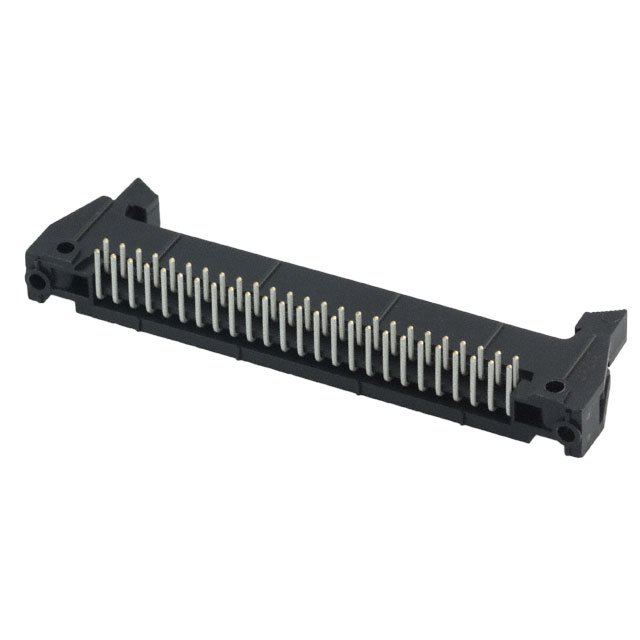

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 2.54 MM, 2 ROWS, 50 CONTACTS, THROUGH HOLE RIGHT ANGLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet +3

N3433-5202RB

Active

3M (TC)

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 2.54 MM, 2 ROWS, 50 CONTACTS, THROUGH HOLE RIGHT ANGLE

Deep-Dive with AI

DocumentsDatasheet Datasheet +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	N3433-5202RB

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Length - Mating	6.1 mm
Contact Length - Mating [x]	0.24 in
Contact Length - Post	2.84 mm
Contact Length - Post	0.112 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1.75 A
Fastening Type	Latch Lock/Eject Hooks, Short
Insulation Color	Black
Insulation Height	0.34 in
Insulation Height	8.64 mm
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	50
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

N3433 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Number of Rows	Fastening Type	Connector Type	Overall Contact Length	Overall Contact Length	Shrouding	Insulation Color	Insulation Material	Mounting Type	Style	Termination	Contact Finish - Post	Number of Positions	Current Rating (Amps)	Material Flammability Rating	Contact Shape	Contact Length - Mating	Contact Length - Mating [x]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Contact Type	Number of Positions Loaded	Overall Contact Length [x]	Overall Contact Length [x]
3M (TC) N3433-2303RB	105 ░C	-55 °C	30 Áin	0.76 Ám	Gold	2	Latch Lock/Eject Hooks Long	Header	0.695 in	17.65 mm	Shrouded - 3 Wall	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	Board to Board Cable	Solder	Tin	50	1.75 A	UL94 V-0	Square	6.1 mm	0.24 in	2.54 mm	0.1 in	200 µin	5.08 µm	Copper Alloy	3.94 mm	0.155 "	0.1 in	2.54 mm	17.27 mm	0.68 in	Male Pin	All
3M (TC) N3433-6303	105 ░C	-55 °C	30 Áin	0.76 Ám	Gold	2	Latch Lock/Eject Hooks Long	Header	0.695 in	17.65 mm	Shrouded - 4 Wall	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	Board to Board Cable	Solder	Tin-Lead	50	1.75 A	UL94 V-0	Square	6.1 mm	0.24 in	2.54 mm	0.1 in	200 µin	5.08 µm	Copper Alloy	3.94 mm	0.155 "	0.1 in	2.54 mm	17.27 mm	0.68 in	Male Pin	All
3M (TC) N3433-6202RB	105 ░C	-55 °C	30 Áin	0.76 Ám	Gold	2	Latch Lock/Eject Hooks Short	Header	0.652 in	16.56 mm	Shrouded - 4 Wall	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	Board to Board Cable	Solder	Tin	50	1.75 A	UL94 V-0	Square	6.1 mm	0.24 in	2.54 mm	0.1 in	200 µin	5.08 µm	Copper Alloy	2.84 mm	0.112 in	0.1 in	2.54 mm	17.27 mm	0.68 in	Male Pin	All
3M (TC) N3433-6305EB	105 ░C	-55 °C	30 Áin	0.76 Ám	Gold	2	Latch Lock/Eject Hooks Long	Header	1.15 in	29.21 mm	Shrouded - 4 Wall	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	Board to Board Cable	Wire Wrap		50	1.75 A	UL94 V-0	Square	6.1 mm	0.24 in	2.54 mm	0.1 in			Copper Alloy	15.49 mm	0.61 in	0.1 in	2.54 mm	17.27 mm	0.68 in	Male Pin	All
3M (TC) N3433-620T02RB	105 ░C	-55 °C	30 Áin	0.76 Ám	Gold	2	Latch Lock/Eject Hooks Short	Header			Shrouded - 4 Wall	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	Board to Board Cable	Press-Fit Solder	Tin	50	1.75 A	UL94 V-0	Square	6.1 mm	0.24 in	2.54 mm	0.1 in	300 µin	7.62 µm	Copper Alloy	4.45 mm	0.175 in	0.1 in	2.54 mm	17.27 mm	0.68 in	Male Pin	All	0.715 "	18.16 mm
3M (TC) N3433-5003RB	105 ░C	-55 °C	30 Áin	0.76 Ám	Gold	2	Push-Pull	Header			Shrouded - 4 Wall	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole Right Angle	Board to Board Cable	Solder	Tin	50	1.75 A	UL94 V-0	Square	6.1 mm	0.24 in	2.54 mm	0.1 in	200 µin	5.08 µm	Copper Alloy	3.94 mm	0.155 "	0.1 in	2.54 mm	8.64 mm	0.34 in	Male Pin	All
3M (TC) N3433-5002RB	105 ░C	-55 °C	30 Áin	0.76 Ám	Gold	2	Push-Pull	Header			Shrouded - 4 Wall	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole Right Angle	Board to Board Cable	Solder	Tin	50	1.75 A	UL94 V-0	Square	6.1 mm	0.24 in	2.54 mm	0.1 in	200 µin	5.08 µm	Copper Alloy	2.84 mm	0.112 in	0.1 in	2.54 mm	8.64 mm	0.34 in	Male Pin	All
3M (TC) N3433-5203RB	105 ░C	-55 °C	30 Áin	0.76 Ám	Gold	2	Latch Lock/Eject Hooks Short	Header			Shrouded - 4 Wall	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole Right Angle	Board to Board Cable	Solder	Tin	50	1.75 A	UL94 V-0	Square	6.1 mm	0.24 in	2.54 mm	0.1 in	200 µin	5.08 µm	Copper Alloy	3.94 mm	0.155 "	0.1 in	2.54 mm	8.64 mm	0.34 in	Male Pin	All
3M (TC) N3433-5202RB	105 ░C	-55 °C	30 Áin	0.76 Ám	Gold	2	Latch Lock/Eject Hooks Short	Header			Shrouded - 4 Wall	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole Right Angle	Board to Board Cable	Solder	Tin	50	1.75 A	UL94 V-0	Square	6.1 mm	0.24 in	2.54 mm	0.1 in	200 µin	5.08 µm	Copper Alloy	2.84 mm	0.112 in	0.1 in	2.54 mm	8.64 mm	0.34 in	Male Pin	All
3M (TC) N3433-6005EB	105 ░C	-55 °C	30 Áin	0.76 Ám	Gold	2	Push-Pull	Header	1.15 in	29.21 mm	Shrouded - 4 Wall	Black	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Through Hole	Board to Board Cable	Wire Wrap		50	1.75 A	UL94 V-0	Square	6.1 mm	0.24 in	2.54 mm	0.1 in			Copper Alloy	15.49 mm	0.61 in	0.1 in	2.54 mm	17.27 mm	0.68 in	Male Pin	All

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.85
		10	$ 7.10
		150	$ 6.22
		600	$ 5.24
		1050	$ 4.58
Newark	Each	1	$ 9.23
		10	$ 8.46
		25	$ 8.46

Description

General part information

N3433 Series

The 3000 series Four-wall Header with copper alloy contacts and a glass-filled polycyclohexylenedimethylene terephthalate insulator. The high temperature insulator suitable for no lead soldering operations. It is suitable for reflow soldering using paste in hole techniques.
