1608 SL030

Active

ALPHA WIRE

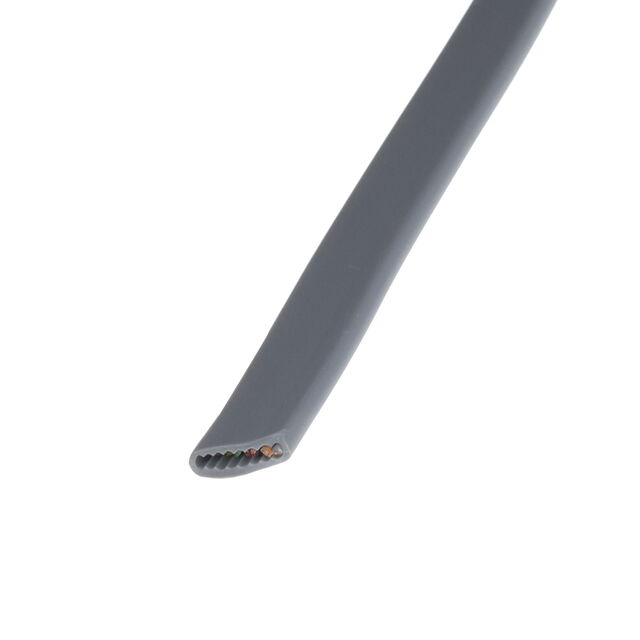

CABLE 8COND 26AWG SLATE 100M

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 8COND 26AWG SLATE 100M

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1608 SL030	1608 Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Polypropylene (PP)	Polypropylene (PP)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand	7 Strands, 34 AWG	7 - 34 Strands
Jacket (Insulation) Diameter [diameter]	0.35 in	0.35 in
Jacket (Insulation) Diameter [diameter]	8.89 mm	8.89 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.024 in	0.024 in
Jacket (Insulation) Thickness	0.61 mm	0.61 mm
Jacket Color	Slate	Slate
Length	100 m	100 - 304.8 m
Length	328.1 ft	328.1 - 1000 ft
Number of Conductors	8	8
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-20 C	-20 C
Usage	Control, Communication	Control, Communication
Voltage	150 V	150 V
Wire Gauge	26 AWG	26 AWG

MULTICONDUCTOR CABLE, UNSHIELDED, 8 CONDUCTOR, 26 AWG, 1000 FT, 304.8 M

Part	Jacket Color	Wire Gauge	Conductor Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Conductor Strand	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Number of Conductors	Usage	Jacket (Insulation) Material	Voltage
ALPHA WIRE 1608 SL021	Slate	26 AWG	Polypropylene (PP)	-20 C	60 °C	1000 ft	304.8 m	0.024 in	0.61 mm	Multi-Conductor	7 Strands, 34 AWG	0.35 in	8.89 mm	Copper, Tinned	8	Communication, Control	Poly-Vinyl Chloride (PVC)	150 V
ALPHA WIRE 1608 SL030	Slate	26 AWG	Polypropylene (PP)	-20 C	60 °C	328.1 ft	100 m	0.024 in	0.61 mm	Multi-Conductor	7 Strands, 34 AWG	0.35 in	8.89 mm	Copper, Tinned	8	Communication, Control	Poly-Vinyl Chloride (PVC)	150 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 444.04

General part information

8 Conductor Multi-Conductor Cable Slate 26 AWG 328.1' (100.0m)
