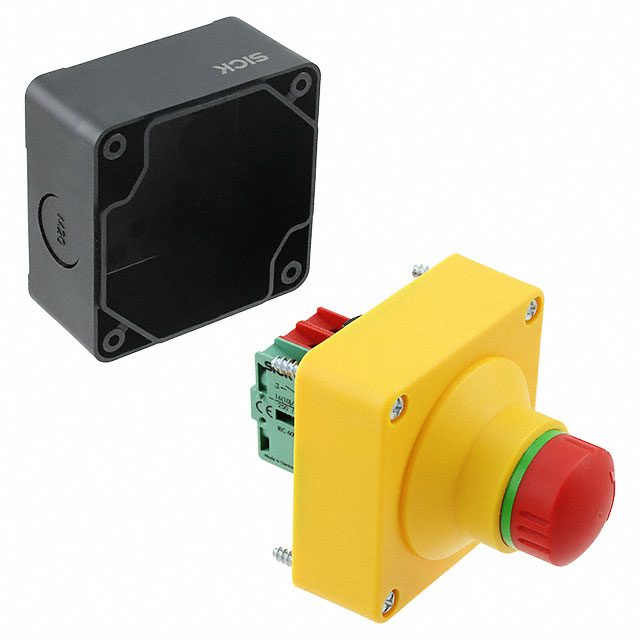

6036148

Active

SICK, Inc.

SWITCH ESTOP TWIST RESET 3A 250V

Search across all available documentation for this part.

Active

SICK, Inc.

SWITCH ESTOP TWIST RESET 3A 250V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SWITCH ESTOP TWIST RESET 3A 250V

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	6036148	ES21-SA10 Series

Circuit	3PST-2NC/1NO	DPST-NO/NC, 3PST-2NC/1NO, SPST-NC
Current Rating (Amps)	2 A, 3 A	2 - 3 A
Features	Status Indicator, Control Box Enclosure	Status Indicator, Control Box Enclosure
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Mounting Type	Chassis Mount	Chassis Mount
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-25 °C	-25 °C
Reset Operation	Twist	Twist
Switch Function	On-Off, Off-On	On-Off, Off-On
Termination Style	Screw Terminal	Screw Terminal
Voltage Rating - AC	250 V	250 V
Voltage Rating - DC	24 V	24 V

SWITCH ESTOP TWIST RESET 3A 250V

Part	Voltage Rating - AC	Current Rating (Amps)	Features	Switch Function	Voltage Rating - DC	Ingress Protection	Circuit	Reset Operation	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Termination Style
SICK, Inc. ES21-SA10D1	250 V	2 A, 3 A	Control Box Enclosure, Status Indicator	Off-On, On-Off	24 V	IP65 - Dust Tight, Water Resistant	DPST-NO/NC	Twist	-25 °C	60 °C	Chassis Mount	Screw Terminal
SICK, Inc. 6036148	250 V	2 A, 3 A	Control Box Enclosure, Status Indicator	Off-On, On-Off	24 V	IP65 - Dust Tight, Water Resistant	3PST-2NC/1NO	Twist	-25 °C	60 °C	Chassis Mount	Screw Terminal
SICK, Inc. ES21-SA10C1	250 V	2 A, 3 A	Control Box Enclosure, Status Indicator	On-Off	24 V	IP65 - Dust Tight, Water Resistant	SPST-NC	Twist	-25 °C	60 °C	Chassis Mount	Screw Terminal
