8280-4PG-321

Active

Conxall/Switchcraft

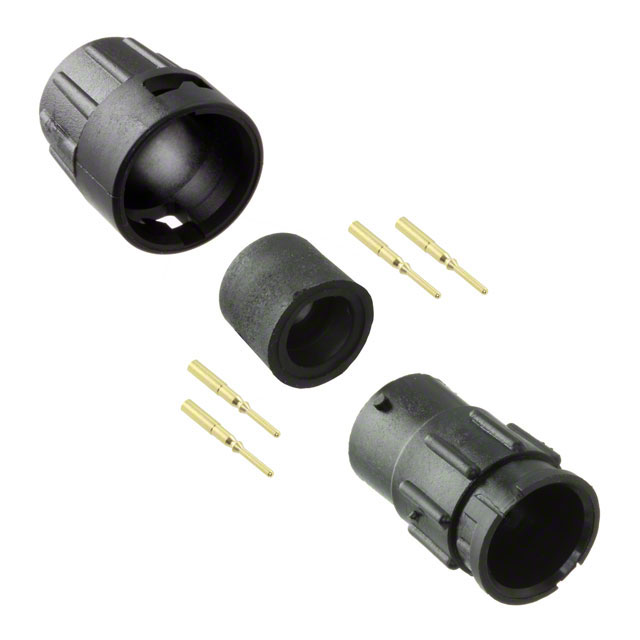

CONN RCPT MALE 4POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

8280-4PG-321

Active

Conxall/Switchcraft

CONN RCPT MALE 4POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 7.21

Description

General part information

8280-4PG Series

4 Position Circular Connector Receptacle, Male Pins Crimp

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	8280-4PG-321	8280-4PG Series

Applications	Automotive, Communication Systems, Instrumentation	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	0.16 - 0.18 in
Cable Opening	-	0.18 - 0.2 in
Cable Opening	-	4.06 - 4.57 mm
Cable Opening	-	4.57 - 5.08 mm
Cable Opening	-	5.33 mm
Cable Opening [Max] [diameter]	5.84 mm	5.84 mm
Cable Opening [Max] [diameter]	0.23 in	0.21 - 0.23 in
Cable Opening [Min] [diameter]	5.33 mm	4.83 - 5.33 mm
Cable Opening [Min] [diameter]	0.21 in	0.19 - 0.21 in
Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	4	4
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp	Crimp
Voltage Rating	600 V	600 V

8280-4PG Series

CONN RCPT MALE 4POS GOLD CRIMP

Part	Color	Voltage Rating	Features	Backshell Material, Plating	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Orientation	Primary Material	Number of Positions	Connector Type	Contact Finish - Mating	Contact Material	Current Rating (Amps)	Termination	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Shielding	Applications	Fastening Type	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [diameter]
Conxall/Switchcraft 8280-4PG-321	Black	600 V	Backshell	Nylon, Polyamide (PA)	Free Hanging (In-Line)	-40 °C	115 °C	Weathertight	Keyed	Plastic	4	Male Pins, Receptacle	Gold	Brass	Varies by Wire Gauge	Crimp	5.33 mm	5.84 mm	0.21 in	0.23 in	Unshielded	Automotive, Communication Systems, Instrumentation	Bayonet Lock
Conxall/Switchcraft 8280-4PG-3DC	Black	600 V	Backshell	Nylon, Polyamide (PA)	Free Hanging (In-Line)	-40 °C	115 °C	Weathertight	Keyed	Plastic	4	Male Pins, Receptacle	Gold	Brass	Varies by Wire Gauge	Crimp					Unshielded	Automotive, Communication Systems, Instrumentation	Bayonet Lock
Conxall/Switchcraft 8280-4PG-516	Black	600 V	Backshell	Nylon, Polyamide (PA)	Free Hanging (In-Line)	-40 °C	115 °C	Weathertight	Keyed	Plastic	4	Male Pins, Receptacle	Gold	Brass	Varies by Wire Gauge	Crimp					Unshielded	Automotive, Communication Systems, Instrumentation	Bayonet Lock	0.16 in	0.18 in	4.06 mm	4.57 mm
Conxall/Switchcraft 8280-4PG-318	Black	600 V	Backshell	Nylon, Polyamide (PA)	Free Hanging (In-Line)	-40 °C	115 °C	Weathertight	Keyed	Plastic	4	Male Pins, Receptacle	Gold	Brass	Varies by Wire Gauge	Crimp					Unshielded	Automotive, Communication Systems, Instrumentation	Bayonet Lock	0.18 in	0.2 in	4.57 mm	5.08 mm
Conxall/Switchcraft 8280-4PG-519	Black	600 V	Backshell	Nylon, Polyamide (PA)	Free Hanging (In-Line)	-40 °C	115 °C	Weathertight	Keyed	Plastic	4	Male Pins, Receptacle	Gold	Brass	Varies by Wire Gauge	Crimp	4.83 mm		0.19 in	0.21 in	Unshielded	Automotive, Communication Systems, Instrumentation	Bayonet Lock					5.33 mm
