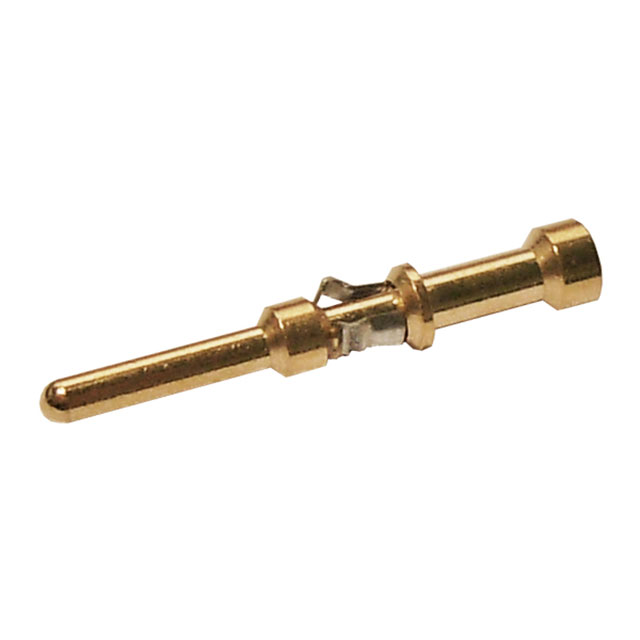

PM16P1620S30-50

Active

Anderson Power Products, Inc.

CONTACT PIN 16-20AWG STD 7.7MM

Search across all available documentation for this part.

Active

Anderson Power Products, Inc.

CONTACT PIN 16-20AWG STD 7.7MM

Technical Specifications

Parameters and characteristics for this part

Part	Wire Gauge [Min]	Wire Gauge [Max]	Pin or Socket	Contact Material	Contact Termination	Type	Contact Finish	Wire Gauge
Anderson Power Products, Inc. PM16P2024S30-50	20 AWG	24 AWG	Pin	Copper Alloy	Crimp	Power Machined	Gold
Anderson Power Products, Inc. PM16P2024C30	20 AWG	24 AWG	Pin	Copper Alloy	Crimp	Power Machined	Gold
Anderson Power Products, Inc. PM16P12S30			Pin	Copper Alloy	Crimp	Power Machined	Gold	12 AWG
Anderson Power Products, Inc. PM16P1620S30	16 AWG	20 AWG	Pin	Copper Alloy	Crimp	Power Machined	Gold
Anderson Power Products, Inc. PM16P1620A30	16 AWG	20 AWG	Pin	Copper Alloy	Crimp	Power Machined	Gold
Anderson Power Products, Inc. PM16P2024S30	20 AWG	24 AWG	Pin	Copper Alloy	Crimp	Power Machined	Gold
Anderson Power Products, Inc. PM16P1620C30	16 AWG	20 AWG	Pin	Copper Alloy	Crimp	Power Machined	Gold
Anderson Power Products, Inc. PM16P1620S30-50	16 AWG	20 AWG	Pin	Copper Alloy	Crimp	Power Machined	Gold
Anderson Power Products, Inc. PM16P1416S30			Pin	Copper Alloy	Crimp	Power Machined	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pin Contact Gold Crimp 16-20 AWG Power, Machined
