704.093.018

Active

EAO

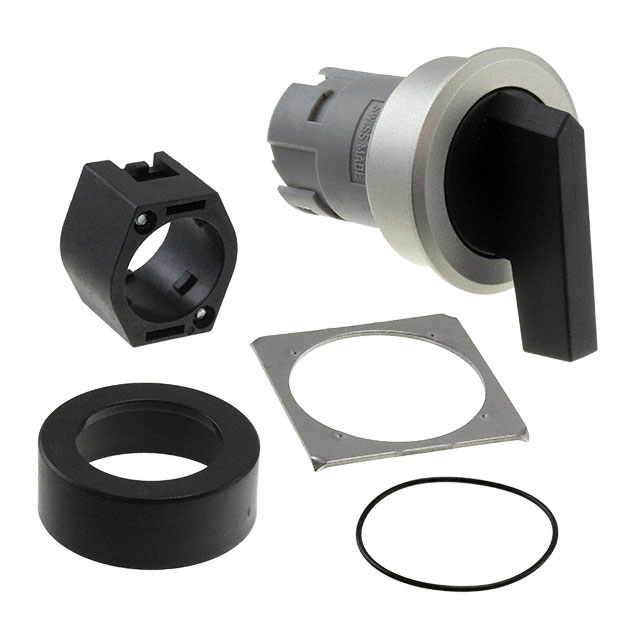

CONFIG SW BODY SELECT NON-ILLUM

Search across all available documentation for this part.

Active

EAO

CONFIG SW BODY SELECT NON-ILLUM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	704.093.018	704.093 Series

(Select First, Then Apply Filters) Compatible Series	04, EAO	04, EAO
Actuator Type	Selector	Selector
Illumination	Non-Illuminated	Non-Illuminated, Illuminated
Panel Cutout Dimensions	30.5 mm	22.3 - 30.5 mm
Requires	Contact Block(s)	Contact Block(s), Illumination Source
Type	Maintained	Maintained

CONFIG SW BODY SELECT NON-ILLUM

Part	(Select First, Then Apply Filters) Compatible Series	Illumination	Panel Cutout Dimensions	Type	Requires	Actuator Type
EAO 704.093.010	04, EAO	Non-Illuminated	30.5 mm	Maintained	Contact Block(s)	Selector
EAO 704.093.018I	04, EAO	Illuminated	30.5 mm	Maintained	Contact Block(s), Illumination Source	Selector
EAO 704.093.0I	04, EAO	Illuminated	22.3 mm	Maintained	Contact Block(s), Illumination Source	Selector
EAO 704.093.018	04, EAO	Non-Illuminated	30.5 mm	Maintained	Contact Block(s)	Selector

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Configurable Switch Body Selector Non-Illuminated
