7127W 003250

Active

Belden Inc.

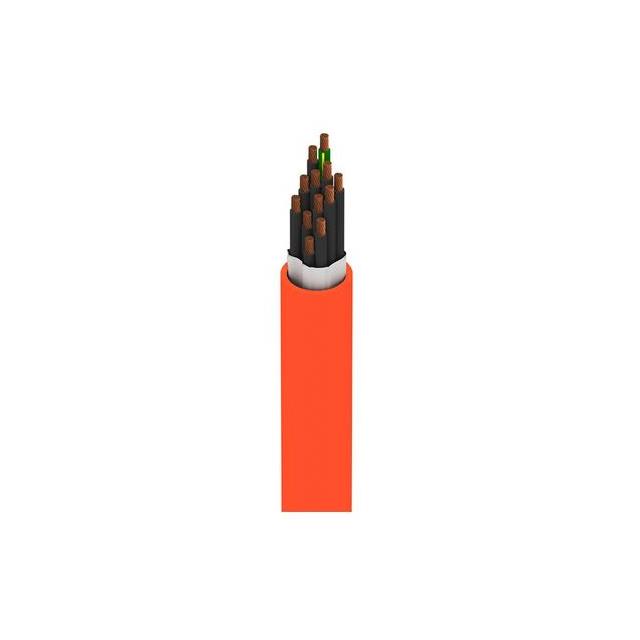

CABLE 12COND 16AWG ORANGE

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 12COND 16AWG ORANGE

Technical Specifications

Parameters and characteristics for this part

Specification	7127W 003250

Cable Type	Multi-Conductor
Conductor Insulation	Polyamide (PA), Nylon, Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	38
Conductor Strand [custom]	190
Features	Oil Resistant, UV Resistant
Jacket (Insulation) Diameter [diameter]	14.78 mm
Jacket (Insulation) Diameter [diameter]	0.582 in
Jacket (Insulation) Material	Thermoplastic Elastomer (TPE)
Jacket (Insulation) Thickness	1.6 mm
Jacket (Insulation) Thickness	0.063 in
Jacket Color	Orange
Length	3000 "
Length	76.2 m
Number of Conductors	12
Ratings	UL Style 20328
Wire Gauge	16 AWG

Part	Jacket (Insulation) Material	Conductor Material	Number of Conductors	Conductor Strand [custom]	Conductor Strand [custom]	Features	Conductor Insulation	Cable Type	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Length	Length	Ratings	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness
Belden Inc. 7127W 003250	Thermoplastic Elastomer (TPE)	Copper Bare	12	38	190	Oil Resistant UV Resistant	Nylon Poly-Vinyl Chloride (PVC) Polyamide (PA)	Multi-Conductor	Orange	14.78 mm	0.582 in	16 AWG	3000 "	76.2 m	UL Style 20328	1.6 mm	0.063 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	250	$ 24.28

General part information

12 Conductor Multi-Conductor Cable Orange 16 AWG 250.0' (76.2m)
