2142-5

Active

Pomona Electronics

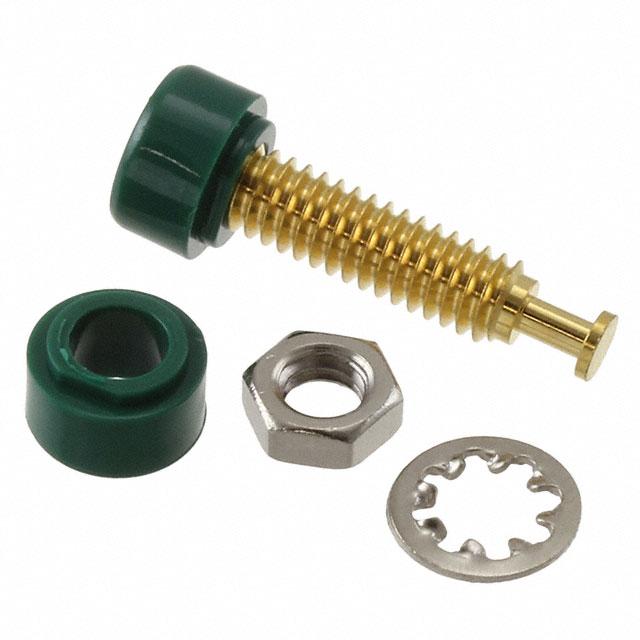

CONN BANANA JACK MINI TURRET GRN

Search across all available documentation for this part.

Active

Pomona Electronics

CONN BANANA JACK MINI TURRET GRN

Technical Specifications

Parameters and characteristics for this part

Part	Color	Contact Finish	Contact Material	Insulation	Plug/Mating Plug Diameter	Type	Operating Temperature	Body Material	Termination	Gender
Pomona Electronics 2142-2	Red	Gold	Brass	Mating End Insulated	Miniature	Banana Jack	115 °C	Polycarbonate (PC)	Turret	Female
Pomona Electronics 2142-6	Blue	Gold	Brass	Mating End Insulated	Miniature	Banana Jack	115 °C	Polycarbonate (PC)	Turret	Female
Pomona Electronics 2142-4#	Yellow	Gold	Brass	Mating End Insulated	Miniature	Banana Jack	115 °C	Polycarbonate (PC)	Turret	Female
Pomona Electronics 2142-9#	White	Gold	Brass	Mating End Insulated	Miniature	Banana Jack	115 °C	Polycarbonate (PC)	Turret	Female
Pomona Electronics 2142-0	Black	Gold	Brass	Mating End Insulated	Miniature	Banana Jack	115 °C	Polycarbonate (PC)	Turret	Female
Pomona Electronics 2142-9	White	Gold	Brass	Mating End Insulated	Miniature	Banana Jack	115 °C	Polycarbonate (PC)	Turret	Female
Pomona Electronics 2142-6#	Blue	Gold	Brass	Mating End Insulated	Miniature	Banana Jack	115 °C	Polycarbonate (PC)	Turret	Female
Pomona Electronics 2142-3#		Gold	Brass	Mating End Insulated	Miniature	Banana Jack	115 °C	Polycarbonate (PC)	Turret	Female
Pomona Electronics 2142-5	Green	Gold	Brass	Mating End Insulated	Miniature	Banana Jack	115 °C	Polycarbonate (PC)	Turret	Female
Pomona Electronics 2142-0#	Black	Gold	Brass	Mating End Insulated	Miniature	Banana Jack	115 °C	Polycarbonate (PC)	Turret	Female

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Banana Jack Connector Miniature Turret Green
