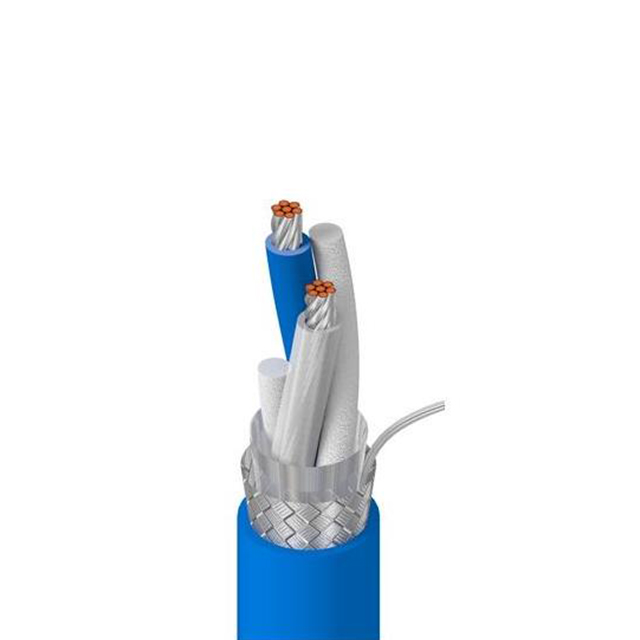

89463 0062500 - MFG_89463-0061000.jpg

89463 0062500

Active
Belden Inc.

CABLE TWINAXIAL PLEN 20AWG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetCabling Solutions for Industrial Applications
89463 0062500 - MFG_89463-0061000.jpg

89463 0062500

Active
Belden Inc.

CABLE TWINAXIAL PLEN 20AWG

Deep-Dive with AI

DocumentsDatasheetCabling Solutions for Industrial Applications

Technical Specifications

Parameters and characteristics for this part

Specification89463 0062500
Cable TypeTwinaxial - Plenum
Conductor MaterialCopper, Tinned
Conductor Strand [custom]7
Conductor Strand [custom]28 AWG
Dielectric Diameter [diameter]1.85 mm
Dielectric Diameter [diameter]0.073 in
Dielectric MaterialFluorinated Ethylene Propylene (FEP)
FeaturesDrain Wire
Impedance120 Ohms
Jacket (Insulation) Diameter [diameter]5.16 mm
Jacket (Insulation) Diameter [diameter]0.203 in
Jacket (Insulation) MaterialFluorinated Ethylene-Propylene (FEP)
Jacket ColorBlue
Length152.4 m
Length6000 in
Operating Temperature [Max]200 °C
Operating Temperature [Min]-70 °C
Shield Coverage76 %, 100 %
Shield MaterialCopper, Tinned, Aluminum
Shield TypeFoil, Braid
VoP, Velocity of Propagation69
Wire Gauge20 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeySpool 500$ 39.55

Description

General part information

89463 Series

Twinaxial - Plenum Cable 20 AWG 500.0' (152.40m) 120 Ohms
