345-056-500-888
ActiveEDAC Inc.

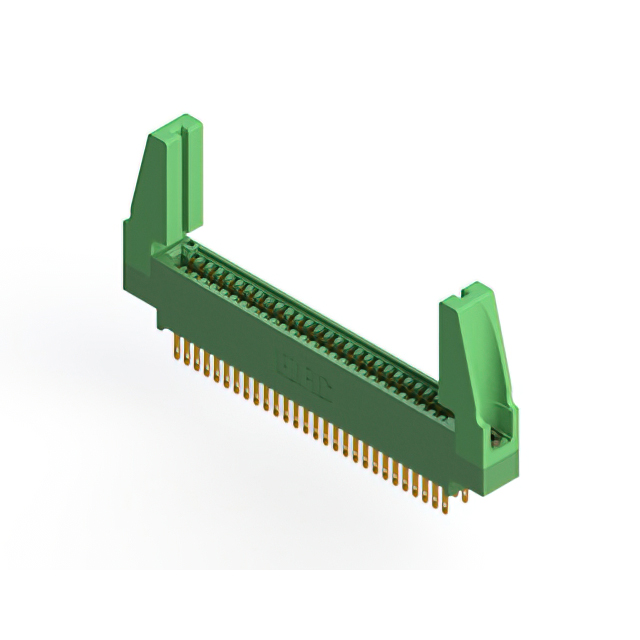

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 56 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
345-056-500-888
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 56 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 345-056-500-888 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Guides |
| Flange Feature | Top Mount Opening, 4-40, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 56 |
| Number of Positions/Bay/Row [custom] | 28 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 2 |
345-056 Series
...
| Part | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Termination | Gender | Termination Rows | Number of Rows | Material - Insulation | Pitch [x] | Pitch [x] | Features | Read Out | Contact Finish | Mounting Type | Contact Type | Color | Number of Positions | Card Type | Flange Feature | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions/Bay/Row [custom] | Flange Feature | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Copper Alloy | Solder Eyelet(s) | Female | 2 | 2 | Polyester Thermoplastic | 2.54 mm | 0.1 in | Card Guides | Dual | Gold | Through Hole | Cantilever | Green | 56 | Non Specified - Dual Edge | 4-40 Threaded Insert Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 28 | ||||
EDAC Inc. | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Copper Alloy | Solder | Female | 1 | 1 | Polyester Thermoplastic | 2.54 mm | 0.1 in | Card Guides | Single | Gold | Through Hole | Cantilever | Green | 56 | Non Specified - Single Edge | 4-40 Threaded Insert Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 56 | ||||
EDAC Inc. | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Copper Alloy | Solder | Female | 2 | 2 | Polyester Thermoplastic | 2.54 mm | 0.1 in | Dual | Gold | Through Hole | Cantilever | Green | 56 | Non Specified - Dual Edge | Side Mount Opening Unthreaded | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 28 | 3.25 mm | 0.128 in | |||
EDAC Inc. | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Copper Alloy | Solder | Female | 1 | 1 | Polyester Thermoplastic | 2.54 mm | 0.1 in | Single | Gold | Through Hole | Cantilever | Green | 56 | Non Specified - Single Edge | Flush Mount M3 Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 56 | |||||
EDAC Inc. | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Copper Alloy | Wire Wrap | Female | 2 | 2 | Polyester Thermoplastic | 2.54 mm | 0.1 in | Dual | Gold | Through Hole | Cantilever | Green | 56 | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 28 | ||||||
EDAC Inc. | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Copper Alloy | Solder | Female | 2 | 2 | Polyester Thermoplastic | 2.54 mm | 0.1 in | Card Guides | Dual | Gold | Through Hole | Cantilever | Green | 56 | Non Specified - Dual Edge | 4-40 Threaded Insert Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 28 | ||||
EDAC Inc. | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Copper Alloy | Wire Wrap | Female | 2 | 2 | Polyester Thermoplastic | 2.54 mm | 0.1 in | Card Guides | Dual | Gold | Through Hole | Cantilever | Green | 56 | Non Specified - Dual Edge | 4-40 Threaded Insert Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 28 | ||||
EDAC Inc. | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Copper Alloy | Solder | Female | 1 | 1 | Polyester Thermoplastic | 2.54 mm | 0.1 in | Card Guides | Single | Gold | Through Hole Right Angle | Cantilever | Green | 56 | Non Specified - Single Edge | 4-40 Flush Mount Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 56 | ||||
EDAC Inc. | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Copper Alloy | Solder | Female | 1 | 1 | Polyester Thermoplastic | 2.54 mm | 0.1 in | Single | Gold | Through Hole | Cantilever | Green | 56 | Non Specified - Single Edge | M3 Threaded Insert Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 56 | |||||
EDAC Inc. | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Copper Alloy | Solder | Female | 2 | 2 | Polyester Thermoplastic | 2.54 mm | 0.1 in | Card Extender | Dual | Gold | Board Edge Straddle Mount | Cantilever | Green | 56 | Non Specified - Dual Edge | Flush Mount Side Opening Unthreaded | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 28 | 3.25 mm | 0.128 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
345-056 Series
56 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
