100R20-203B

Active

Parlex USA LLC

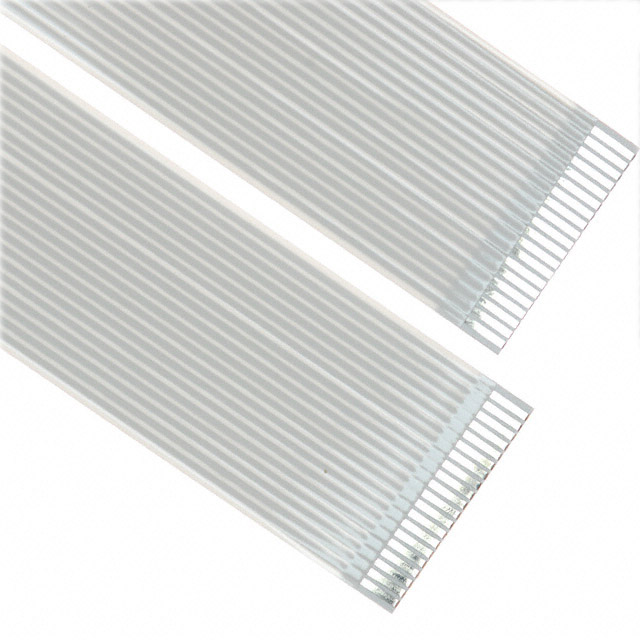

CABLE FFC/FPC 20POS 1MM 7.99"

Search across all available documentation for this part.

Active

Parlex USA LLC

CABLE FFC/FPC 20POS 1MM 7.99"

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	100R20-203B	100R20 Series

Cable Type	FPC, FFC	FPC, FFC
Length	-	2 - 18 in
Length	-	50.8 - 457.2 mm
Length - Exposed Ends [x]	0.14 in	0.14 in
Length - Exposed Ends [x]	3.56 mm	3.56 mm
Length [x]	203 mm	152 - 203 mm
Length [x]	7.992 in	5.984 - 12 in
Number of Conductors	20	20
Pitch [x]	0.039 in	0.039 in
Pitch [x]	1 mm	1 mm
Termination Style	Backers on Both Sides, Top on Both Sides	Backers on Both Sides, Top on Both Sides

CABLE FFC/FPC 20POS 1MM 4"

Part	Number of Conductors	Termination Style	Pitch [x]	Pitch [x]	Cable Type	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Length	Length	Length [x]	Length [x]
Parlex USA LLC 100R20-102B	20	Backers on Both Sides, Top on Both Sides	0.039 in	1 mm	FFC, FPC	0.14 in	3.56 mm	4 in	101.6 mm
Parlex USA LLC 100R20-51B	20	Backers on Both Sides, Top on Both Sides	0.039 in	1 mm	FFC, FPC	0.14 in	3.56 mm	2 in	50.8 mm
Parlex USA LLC 100R20-76B	20	Backers on Both Sides, Top on Both Sides	0.039 in	1 mm	FFC, FPC	0.14 in	3.56 mm	3 in	76.2 mm
Parlex USA LLC 100R20-127B	20	Backers on Both Sides, Top on Both Sides	0.039 in	1 mm	FFC, FPC	0.14 in	3.56 mm	5 in	127 mm
Parlex USA LLC 100R20-203B	20	Backers on Both Sides, Top on Both Sides	0.039 in	1 mm	FFC, FPC	0.14 in	3.56 mm			203 mm	7.992 in
Parlex USA LLC 100R20-457B	20	Backers on Both Sides, Top on Both Sides	0.039 in	1 mm	FFC, FPC	0.14 in	3.56 mm	18 "	457.2 mm
Parlex USA LLC 100R20-254B	20	Backers on Both Sides, Top on Both Sides	0.039 in	1 mm	FFC, FPC	0.14 in	3.56 mm		254 mm		10 in
Parlex USA LLC 100R20-152B	20	Backers on Both Sides, Top on Both Sides	0.039 in	1 mm	FFC, FPC	0.14 in	3.56 mm			152 mm	5.984 in
Parlex USA LLC 100R20-305B	20	Backers on Both Sides, Top on Both Sides	0.039 in	1 mm	FFC, FPC	0.14 in	3.56 mm		304.8 mm		12 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 Position FFC, FPC Cable 0.039" (1.00mm) 7.992" (203.00mm)
