ABC275-1048L

Active

Bel Power Solutions

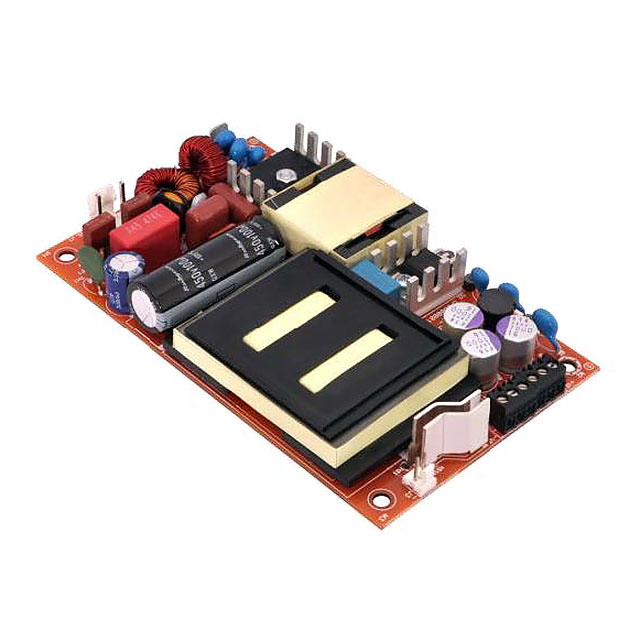

AC/DC CONVERTER 48V 160/275W

Deep-Dive with AI

Search across all available documentation for this part.

ABC275-1048L

Active

Bel Power Solutions

AC/DC CONVERTER 48V 160/275W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ABC275-1048L	ABC275 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE	CE
Current - Output 1	3.33 A	3.33 - 13.33 A
Efficiency	92 %	88 - 92 %
Features	DC Input Capable, PFC, Standby Output, Universal Input, Adjustable Output	DC Input Capable, PFC, Standby Output, Universal Input, Adjustable Output
Minimum Load Required	False	False
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Power (Watts)	160 W	160 W
Power (Watts) [Max]	275 W	275 W
Size / Dimension	-	76.2 mm
Size / Dimension	-	19.1 mm
Size / Dimension [x]	5 in	5 in
Size / Dimension [x]	127 mm	127 mm
Size / Dimension [y]	3 "	3 "
Size / Dimension [y]	76.2 mm	76.2 mm
Size / Dimension [z]	19 mm	19 mm
Size / Dimension [z]	0.75 in	0.75 in
Type	Open Frame	Open Frame
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	80 VAC	80 VAC
Voltage - Isolation	3000 V	3000 V
Voltage - Output 1	48 V	12 - 48 V

ABC275 Series

AC/DC CONVERTER 12V 160/275W

Part	Mounting Type	Approval Agency	Type	Number of Outputs	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Features	Current - Output 1	Efficiency	Voltage - Isolation	Voltage - Input [Max]	Voltage - Input [Min]	Applications	Power (Watts) [Max]	Power (Watts)	Size / Dimension [y]	Size / Dimension [z]
Bel Power Solutions ABC275-1012L	Chassis Mount	CE	Open Frame	1	12 V	5 in	3 "	19 mm	0.75 in	76.2 mm	127 mm	Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input	13.33 A	88 %	3000 V	264 VAC	80 VAC	ITE (Commercial)	275 W	160 W
Bel Power Solutions ABC275-1048L	Chassis Mount	CE	Open Frame	1	48 V	5 in	3 "	19 mm	0.75 in	76.2 mm	127 mm	Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input	3.33 A	92 %	3000 V	264 VAC	80 VAC	ITE (Commercial)	275 W	160 W
Bel Power Solutions ABC275-1T30L	Chassis Mount	CE	Open Frame	1	30 V	5 in	3 "		0.75 in		127 mm	Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input	5.33 A	90 %	3000 V	264 VAC	80 VAC	ITE (Commercial)	275 W	160 W	76.2 mm	19.1 mm
Bel Power Solutions ABC275-1015L	Chassis Mount	CE	Open Frame	1	15 V	5 in	3 "	19 mm	0.75 in	76.2 mm	127 mm	Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input	10.66 A	88 %	3000 V	264 VAC	80 VAC	ITE (Commercial)	275 W	160 W
Bel Power Solutions ABC275-1024L	Chassis Mount	CE	Open Frame	1	24 V	5 in	3 "	19 mm	0.75 in	76.2 mm	127 mm	Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input	6.67 A	90 %	3000 V	264 VAC	80 VAC	ITE (Commercial)	275 W	160 W
Bel Power Solutions ABC275-1030L	Chassis Mount	CE	Open Frame	1	30 V	5 in	3 "	19 mm	0.75 in	76.2 mm	127 mm	Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input	5.33 A	90 %	3000 V	264 VAC	80 VAC	ITE (Commercial)	275 W	160 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 130.97
		5	$ 126.94

Description

General part information

ABC275 Series

Open Frame AC DC Converters 1 Output 48V 80 ~ 264 VAC Input

Documents

Technical documentation and resources

No documents available
