342-011-523-103

Active

EDAC Inc.

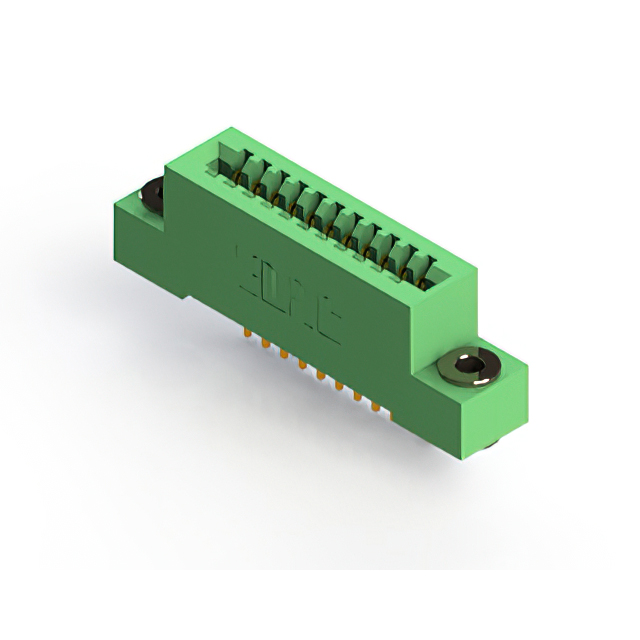

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 11 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +1

342-011-523-103

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 11 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	342-011-523-103

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Floating Bobbin, Flush Mount
Flange Feature [diameter]	0.116 in
Flange Feature [diameter]	2.95 mm
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	11
Number of Positions/Bay/Row [custom]	11
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Solder
Termination Rows	1

342-011 Series

Part	Contact Material	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Number of Positions/Bay/Row [custom]	Termination	Gender	Read Out	Contact Type	Mounting Type	Card Type	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Material - Insulation	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Color	Number of Positions	Termination Rows	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature
EDAC Inc. 342-011-540-101	Copper Alloy	Gold	-40 °C	105 ░C	1	11	Wire Wrap	Female	Single	Cantilever	Through Hole	Non Specified - Single Edge	2.54 mm	0.1 in	10 Áin	0.25 Ám	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	11	1
EDAC Inc. 342-011-541-102	Copper Alloy	Gold	-40 °C	105 ░C	1	11	Wire Wrap	Female	Single	Cantilever	Through Hole	Non Specified - Single Edge	2.54 mm	0.1 in	10 Áin	0.25 Ám	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	11	1	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded
EDAC Inc. 342-011-542-107	Copper Alloy	Gold	-40 °C	105 ░C	1	11	Wire Wrap	Female	Single	Cantilever	Through Hole	Non Specified - Single Edge	2.54 mm	0.1 in	10 Áin	0.25 Ám	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	11	1			Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 342-011-559-101	Copper Alloy	Gold	-40 °C	105 ░C	1	11	Solder Wire Wrap	Female	Single	Cantilever	Through Hole Right Angle	Non Specified - Single Edge	2.54 mm	0.1 in	10 Áin	0.25 Ám	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	11	1
EDAC Inc. 342-011-558-108	Copper Alloy	Gold	-40 °C	105 ░C	1	11	Solder Wire Wrap	Female	Single	Cantilever	Through Hole Right Angle	Non Specified - Single Edge	2.54 mm	0.1 in	10 Áin	0.25 Ám	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	11	1			4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 342-011-544-107	Copper Alloy	Gold	-40 °C	105 ░C	1	11	Wire Wrap	Female	Single	Cantilever	Through Hole	Non Specified - Single Edge	2.54 mm	0.1 in	10 Áin	0.25 Ám	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	11	1			Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 342-011-520-104	Copper Alloy	Gold	-40 °C	105 ░C	1	11	Solder	Female	Single	Cantilever	Through Hole	Non Specified - Single Edge	2.54 mm	0.1 in	10 Áin	0.25 Ám	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	11	1	3.96 mm	0.156 in	Flush Mount Top Opening Unthreaded
EDAC Inc. 342-011-523-103	Copper Alloy	Gold	-40 °C	105 ░C	1	11	Solder	Female	Single	Cantilever	Through Hole	Non Specified - Single Edge	2.54 mm	0.1 in	10 Áin	0.25 Ám	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	11	1	2.95 mm	0.116 in	Floating Bobbin Flush Mount
EDAC Inc. 342-011-544-103	Copper Alloy	Gold	-40 °C	105 ░C	1	11	Wire Wrap	Female	Single	Cantilever	Through Hole	Non Specified - Single Edge	2.54 mm	0.1 in	10 Áin	0.25 Ám	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	11	1	2.95 mm	0.116 in	Floating Bobbin Flush Mount
EDAC Inc. 342-011-558-103	Copper Alloy	Gold	-40 °C	105 ░C	1	11	Solder Wire Wrap	Female	Single	Cantilever	Through Hole Right Angle	Non Specified - Single Edge	2.54 mm	0.1 in	10 Áin	0.25 Ám	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	11	1	2.95 mm	0.116 in	Floating Bobbin Flush Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 13.60
Newark	Each	1	$ 12.56
		100	$ 10.37
		250	$ 9.37
		500	$ 8.55
		1000	$ 7.03

Description

General part information

342-011 Series

11 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet

Drawing EN

Datasheet
