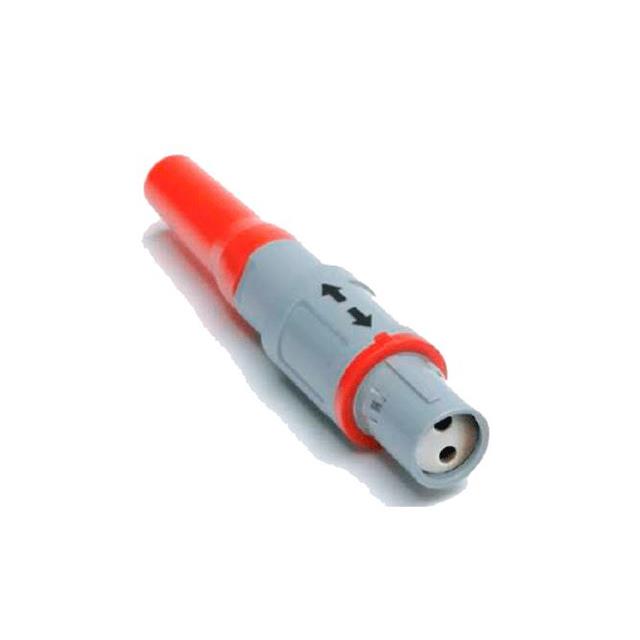

CAB.H02.GLA.C72G

Active

LEMO

PLUG 2 POS FREE HANGING

Search across all available documentation for this part.

Active

LEMO

PLUG 2 POS FREE HANGING

Technical Specifications

Parameters and characteristics for this part

Specification	CAB.H02.GLA.C72G

Applications	Medical, Industrial, Automotive, Testing Equipment & Measurement
Cable Opening [custom]	5.3 mm, 7.2 mm
Cable Opening [custom]	0.209 in, 0.283 in
Color	Gray
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Current Rating (Amps)	11 A
Fastening Type	Detent Lock, Push-Pull
Features	Backshell
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-50 °C
Orientation	B
Shell Material	Polysulfone (PSU)
Shell Size - Insert	H-2
Shielding	Unshielded
Voltage Rating	250 VDC

PLUG 2 POS FREE HANGING

Part	Color	Features	Applications	Insert Material	Number of Positions	Ingress Protection	Current Rating (Amps)	Orientation	Connector Type	Mounting Type	Shell Size - Insert	Fastening Type	Contact Finish - Mating	Voltage Rating	Material Flammability Rating	Cable Opening [custom]	Cable Opening [custom]	Shell Material	Operating Temperature [Max]	Operating Temperature [Min]	Shielding
LEMO CAB.H02.GLA.C72G	Gray	Backshell	Automotive, Industrial, Medical, Testing Equipment & Measurement	Polyetheretherketone (PEEK)	2	IP50	11 A	B	Male Pins, Plug	Free Hanging (In-Line)	H-2	Detent Lock, Push-Pull	Gold	250 VDC	UL94 V-0	5.3 mm, 7.2 mm	0.209 in, 0.283 in	Polysulfone (PSU)	150 °C	-50 °C	Unshielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Circular Connector Plug, Male Pins Solder Cup
