ATS-P1-67-C3-R0

Active

Advanced Thermal Solutions Inc.

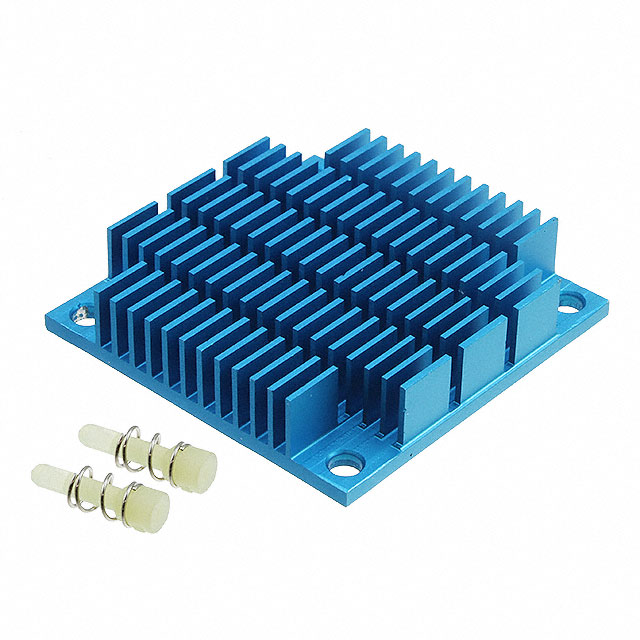

HEATSINK 45X45X10MM L-TAB T412

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ATS-P1-67-C3-R0

Active

Advanced Thermal Solutions Inc.

HEATSINK 45X45X10MM L-TAB T412

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ATS-P1-67-C3-R0

Attachment Method	Push Pin
Fin Height [z]	0.394 in
Fin Height [z]	10 mm
Length	45 mm
Length [x]	1.772 "
Material	Aluminum
Material Finish	Blue Anodized
Package Cooled	ASIC, BGA, LGA, CPU
Shape	Square, Fins
Thermal Resistance @ Forced Air Flow	20.39 °C/W
Type	Top Mount
Width	45 mm
Width [x]	1.772 in

ATS-P1 Series

...

Part	Fin Height [z]	Fin Height [z]	Package Cooled	Length [x]	Length	Width	Width [x]	Type	Material	Attachment Method	Shape	Material Finish	Thermal Resistance @ Forced Air Flow	Length [x]	Fin Height	Fin Height	Width	Length	Width [x]
Advanced Thermal Solutions Inc. ATS-P1-198-C3-R0	0.472 in	12 mm	ASIC BGA CPU LGA	1.772 "	45 mm	45 mm	1.772 in	Top Mount	Aluminum	Push Pin	Fins Square	Blue Anodized	9.21 °C/W 100 LFM
Advanced Thermal Solutions Inc. ATS-P1-179-C3-R0	1.181 in	30 mm	ASIC BGA CPU LGA	1.378 in		35 mm	1.378 in	Top Mount	Aluminum	Push Pin	Fins Square	Blue Anodized	4.07 °C/W 100 LFM	35 mm
Advanced Thermal Solutions Inc. ATS-P1-54-C2-R0			ASIC BGA CPU LGA	1.181 in		30 mm		Top Mount	Aluminum	Push Pin	Fins Square	Blue Anodized	7 °C/W 100 LFM	30 mm	1.378 in	35 mm	1.181 in
Advanced Thermal Solutions Inc. ATS-P1-171-C3-R0	0.79 in	20 mm	ASIC BGA CPU LGA	1.181 in		30 mm		Top Mount	Aluminum	Push Pin	Fins Square	Blue Anodized	7.52 °C/W	30 mm			1.181 in
Advanced Thermal Solutions Inc. ATS-P1-46-C2-R0			ASIC BGA CPU LGA		25 mm	25 mm	0.984 in	Top Mount	Aluminum	Push Pin	Fins Square	Blue Anodized	11.57 °C/W		0.984 in	25 mm		0.984 in
Advanced Thermal Solutions Inc. ATS-P1-119-C3-R0	0.79 in	20 mm	ASIC BGA CPU LGA	1.772 "	45 mm	45 mm	1.772 in	Top Mount	Aluminum	Push Pin	Fins Square	Blue Anodized	4.77 °C/W 100 LFM
Advanced Thermal Solutions Inc. ATS-P1-75-C1-R0	0.79 in	20 mm	ASIC BGA CPU LGA		25 mm	25 mm	0.984 in	Top Mount	Aluminum	Push Pin	Fins Square	Blue Anodized	14.95 °C/W					0.984 in
Advanced Thermal Solutions Inc. ATS-P1-67-C3-R0	0.394 in	10 mm	ASIC BGA CPU LGA	1.772 "	45 mm	45 mm	1.772 in	Top Mount	Aluminum	Push Pin	Fins Square	Blue Anodized	20.39 °C/W
Advanced Thermal Solutions Inc. ATS-P1-96-C3-R0			ASIC BGA CPU LGA				1.575 in	Top Mount	Aluminum	Push Pin	Fins Square	Blue Anodized	5.73 °C/W 100 LFM		1.378 in	35 mm			40 mm
Advanced Thermal Solutions Inc. ATS-P1-113-C3-R0	0.394 in	10 mm	ASIC BGA CPU LGA				1.575 in	Top Mount	Aluminum	Push Pin	Fins Square	Blue Anodized	11.91 °C/W						40 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 5.07

Description

General part information

ATS-P1 Series

Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum Top Mount
