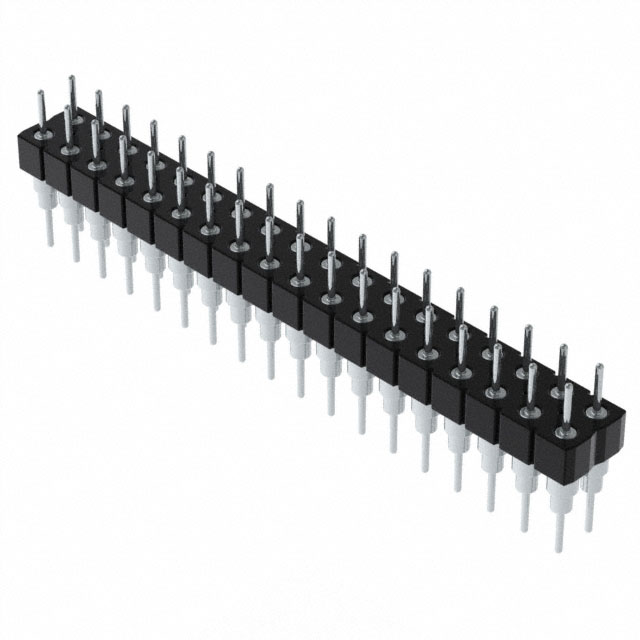

BBD-118-T-A

Active

Samtec Inc.

CONN HEADER VERT 36POS 2.54MM

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HEADER VERT 36POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	BBD-118-T-A

Connector Type	Header
Contact Finish - Post	Nickel
Contact Finish Thickness - Post	1.27 µm
Contact Finish Thickness - Post	50 µin
Contact Length - Mating	0.125 in
Contact Length - Mating	3.18 mm
Contact Length - Post [x]	3.18 mm
Contact Length - Post [x]	0.125 in
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	5.35 mm
Insulation Height [z]	0.211 in
Insulation Material	Polyester, Glass Filled
Mounting Type	Through Hole
Number of Positions	36
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	11.68 mm
Overall Contact Length	0.46 "
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder

Part	Shrouding	Insulation Material	Insulation Color	Connector Type	Fastening Type	Number of Positions	Pitch - Mating	Pitch - Mating	Number of Rows	Contact Length - Post [x]	Contact Length - Post [x]	Termination	Contact Finish - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating	Contact Length - Mating	Insulation Height [z]	Insulation Height [z]	Contact Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Overall Contact Length	Overall Contact Length	Number of Positions Loaded	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Contact Finish - Mating
Samtec Inc. BBD-118-T-A	Unshrouded	Polyester Glass Filled	Black	Header	Push-Pull	36	0.1 in	2.54 mm	2	3.18 mm	0.125 in	Solder	Nickel	2.54 mm	0.1 in	0.125 in	3.18 mm	5.35 mm	0.211 in	Male Pin	1.27 µm	50 µin	-55 °C	125 °C	Through Hole	11.68 mm	0.46 "	All	Circular

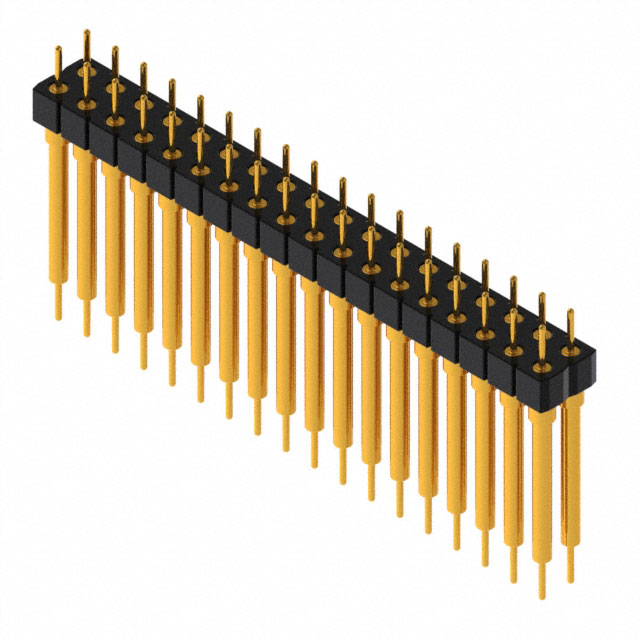

Samtec Inc. BBD-118-G-C-N	Unshrouded	Polyester Glass Filled	Black	Header	Push-Pull	36	0.1 in	2.54 mm	2	3.18 mm	0.125 in	Solder	Nickel	2.54 mm	0.1 in	0.155 in	3.94 mm			Male Pin	1.27 µm	50 µin	-55 °C	125 °C	Through Hole	21.21 mm	0.835 in	All	Circular	0.51 µm	20 µin	14.1 mm	0.555 in	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	12	$ 8.05

General part information

Connector Header Through Hole 36 position 0.100" (2.54mm)
