TFML-140-01-L-D

Active

Samtec Inc.

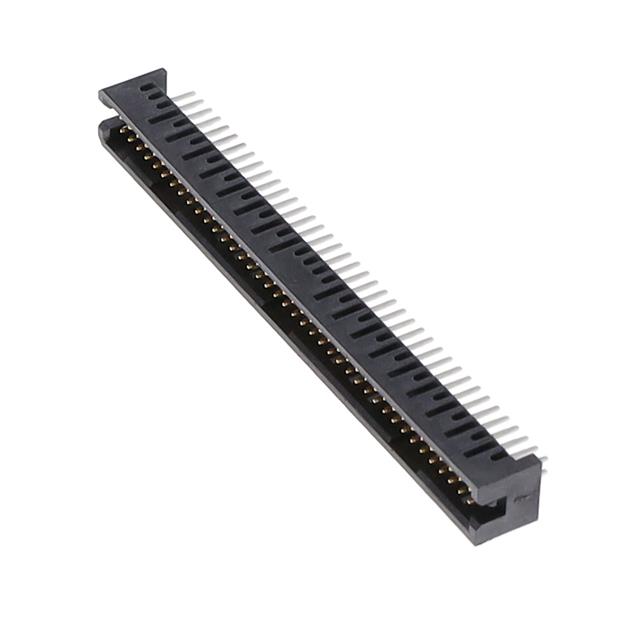

CONN HEADER VERT 80POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet TFML Datasheet +1

TFML-140-01-L-D

Active

Samtec Inc.

CONN HEADER VERT 80POS 1.27MM

Deep-Dive with AI

DocumentsDatasheet TFML Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TFML-140-01-L-D

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	15 µin
Contact Finish Thickness - Mating	0.38 µm
Contact Length - Mating	0.134 "
Contact Length - Mating	3.39 mm
Contact Length - Post	1.91 mm
Contact Length - Post [x]	0.075 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Friction Lock
Insulation Color	Black
Insulation Height	5.6 mm
Insulation Height	0.22 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	80
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

TFML-140 Series

Part	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Insulation Material	Contact Length - Mating	Contact Length - Mating	Insulation Color	Connector Type	Termination	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Contact Length - Post [x]	Contact Length - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Fastening Type	Insulation Height	Insulation Height	Style	Number of Positions Loaded	Material Flammability Rating	Contact Material	Mounting Type	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Features
Samtec Inc. TFML-140-01-H-D-RA	Square	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	0.134 "	3.39 mm	Black	Header	Solder	Gold	0.05 in	1.27 mm	Male Pin	30 Áin	0.76 Ám	Gold	0.075 in	1.91 mm	3 µin	0.076 µm	80	Friction Lock	0.225 in	5.72 mm	Board to Board Cable	All	UL94 V-0	Phosphor Bronze	Through Hole Right Angle	Shrouded - 4 Wall	-55 °C	125 °C	2
Samtec Inc. TFML-140-02-S-D-A-K	Square	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	0.134 "	3.39 mm	Black	Header	Solder	Gold	0.05 in	1.27 mm	Male Pin	30 Áin	0.76 Ám	Tin					80	Friction Lock	0.22 in	5.6 mm	Board to Board Cable	All	UL94 V-0	Phosphor Bronze	Surface Mount	Shrouded - 4 Wall	-55 °C	125 °C	2	Board Guide Pick and Place
Samtec Inc. TFML-140-02-L-D	Square	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	0.134 "	3.39 mm	Black	Header	Solder	Gold	0.05 in	1.27 mm	Male Pin	15 µin	0.38 µm	Tin					80	Friction Lock	0.22 in	5.6 mm	Board to Board Cable	All	UL94 V-0	Phosphor Bronze	Surface Mount	Shrouded - 4 Wall	-55 °C	125 °C	2
Samtec Inc. TFML-140-02-L-D-SN	Square	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	0.134 "	3.39 mm	Black	Header	Solder	Gold	0.05 in	1.27 mm	Male Pin	15 µin	0.38 µm	Tin					80	Friction Lock	0.22 in	5.6 mm	Board to Board Cable	All	UL94 V-0	Phosphor Bronze	Surface Mount	Shrouded - 4 Wall	-55 °C	125 °C	2	Solder Retention
Samtec Inc. TFML-140-02-S-D-A-P-TR	Square	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	0.134 "	3.39 mm	Black	Header	Solder	Gold	0.05 in	1.27 mm	Male Pin	30 Áin	0.76 Ám	Tin					80	Friction Lock	0.22 in	5.6 mm	Board to Board Cable	All	UL94 V-0	Phosphor Bronze	Surface Mount	Shrouded - 4 Wall	-55 °C	125 °C	2	Board Guide Pick and Place
Samtec Inc. TFML-140-01-S-D-A-K	Square	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	0.134 "	3.39 mm	Black	Header	Solder	Gold	0.05 in	1.27 mm	Male Pin	30 Áin	0.76 Ám	Tin	0.075 in	1.91 mm			80	Friction Lock	0.22 in	5.6 mm	Board to Board Cable	All	UL94 V-0	Phosphor Bronze	Through Hole	Shrouded - 4 Wall	-55 °C	125 °C	2	Board Guide Pick and Place
Samtec Inc. TFML-140-02-S-D-LC-P	Square	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	0.134 "	3.39 mm	Black	Header	Solder	Gold	0.05 in	1.27 mm	Male Pin	30 Áin	0.76 Ám	Tin					80	Friction Lock	0.22 in	5.6 mm	Board to Board Cable	All	UL94 V-0	Phosphor Bronze	Surface Mount	Shrouded - 4 Wall	-55 °C	125 °C	2	Board Lock Pick and Place
Samtec Inc. TFML-140-02-L-D-A	Square	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	0.134 "	3.39 mm	Black	Header	Solder	Gold	0.05 in	1.27 mm	Male Pin	15 µin	0.38 µm	Tin					80	Friction Lock	0.22 in	5.6 mm	Board to Board Cable	All	UL94 V-0	Phosphor Bronze	Surface Mount	Shrouded - 4 Wall	-55 °C	125 °C	2	Board Guide
Samtec Inc. TFML-140-02-F-D-A-K	Square	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	0.134 "	3.39 mm	Black	Header	Solder	Gold	0.05 in	1.27 mm	Male Pin	3 µin	0.076 µm	Tin					80	Friction Lock	0.22 in	5.6 mm	Board to Board Cable	All	UL94 V-0	Phosphor Bronze	Surface Mount	Shrouded - 4 Wall	-55 °C	125 °C	2	Board Guide Pick and Place
Samtec Inc. TFML-140-01-L-D	Square	0.05 in	1.27 mm	Liquid Crystal Polymer (LCP)	0.134 "	3.39 mm	Black	Header	Solder	Gold	0.05 in	1.27 mm	Male Pin	15 µin	0.38 µm	Tin	0.075 in	1.91 mm			80	Friction Lock	0.22 in	5.6 mm	Board to Board Cable	All	UL94 V-0	Phosphor Bronze	Through Hole	Shrouded - 4 Wall	-55 °C	125 °C	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 12.56
		10	$ 11.61
		25	$ 10.97
		50	$ 10.58
		100	$ 9.86

TFML-140-01-L-D

Deep-Dive with AI

TFML-140-01-L-D

Deep-Dive with AI

Technical Specifications

TFML-140 Series

Pricing

Description

TFML-140 Series

Documents

Datasheet

TFML Datasheet

Tiger Eye™ High-Reliability Locking Terminal Strip, 0.050" Pitch

TFML-140 Series
