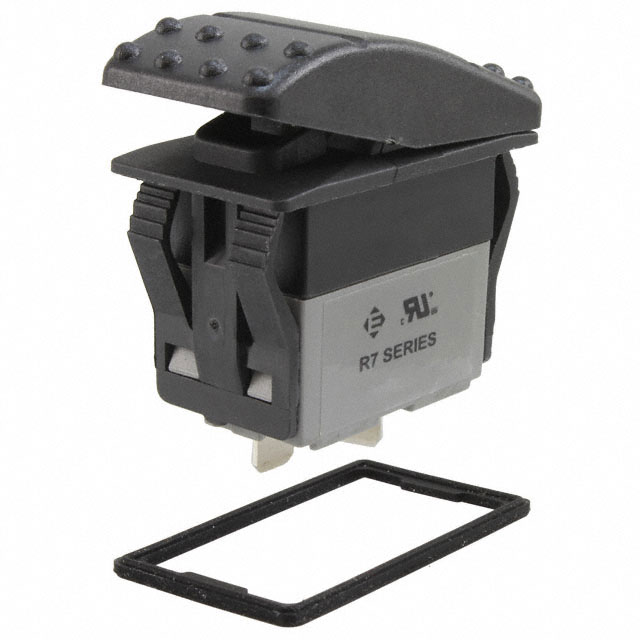

R711FA1-SXXXNBDNNX
ActiveE-Switch
ROCKER; SPST; POS: 2; ON-OFF; 16A/30VDC; BLACK; R7; RCONT MAX: 20MΩ
Deep-Dive with AI
Search across all available documentation for this part.
R711FA1-SXXXNBDNNX
ActiveE-Switch
ROCKER; SPST; POS: 2; ON-OFF; 16A/30VDC; BLACK; R7; RCONT MAX: 20MΩ
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R711FA1-SXXXNBDNNX |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Convex (Reverse V) |
| Approval Agency | cULus |
| Circuit | SPST |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 16 A |
| Electrical Life | 10000 Cycles |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 37 mm |
| Panel Cutout Dimensions [y] | 21.1 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
R711FA1 Series
Rocker Switch SPST 16A (DC) Panel Mount, Snap-In
