OAB220-22-1

Active

Orion Fans

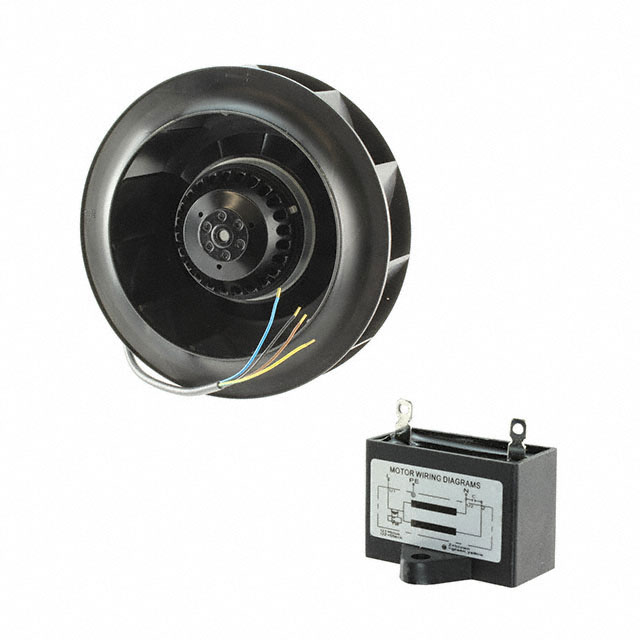

FAN BLOWER, MOTORIZED IMPELLER, 230 VAC, AC, 220 MM, 71 MM, 530 CFM

Search across all available documentation for this part.

Active

Orion Fans

FAN BLOWER, MOTORIZED IMPELLER, 230 VAC, AC, 220 MM, 71 MM, 530 CFM

Technical Specifications

Parameters and characteristics for this part

Specification	OAB220-22-1

Air Flow	530 CFM
Air Flow	14.84 mł/min
Approval Agency	cURus, TUV
Bearing Type	Ball
Current Rating (Amps)	0.5 A
Fan Type	Motorized Impellers
Features	Thermal Overload Protector (TOP), Permanent Split Capacitor Motor
Ingress Protection	IP55 - Dust Protected, Water Resistant
Lifetime @ Temp.	40000 Hrs
Material - Blade	Thermoplastic
Material - Frame	Aluminum
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-40 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	117 W
RPM	2650 RPM
Size / Dimension	Round
Size / Dimension [diameter]	220 mm, 223 mm
Static Pressure	1.5 in H2O
Static Pressure	373.6 Pa
Termination	4 Wire Leads
Voltage - Rated	230 VAC
Width [x]	71 mm
Width [y]	76 mm

Part	Width [y]	Size / Dimension [diameter]	Features	Static Pressure	Static Pressure	Lifetime @ Temp.	Size / Dimension	Air Flow	Air Flow	Voltage Range [Min]	Voltage Range [Max]	Voltage - Rated	Material - Frame	Ingress Protection	RPM	Width [x]	Current Rating (Amps)	Bearing Type	Termination	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Fan Type	Power (Watts)	Approval Agency	Material - Blade
Orion Fans OAB220-11-1	76 mm	220 mm 223 mm	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	1.5 in H2O	373.6 Pa	40000 Hrs	Round	530 CFM	14.84 mł/min	100 VAC	125 VAC	115 VAC	Aluminum	IP55 - Dust Protected Water Resistant	2650 RPM	71 mm	0.98 A	Ball	4 Wire Leads	60 °C	60 °C	-40 °C	-40 °C	Motorized Impellers	117 W	cURus TUV	Thermoplastic
Orion Fans OAB220-22-1	76 mm	220 mm 223 mm	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	1.5 in H2O	373.6 Pa	40000 Hrs	Round	530 CFM	14.84 mł/min			230 VAC	Aluminum	IP55 - Dust Protected Water Resistant	2650 RPM	71 mm	0.5 A	Ball	4 Wire Leads	60 °C	60 °C	-40 °C	-40 °C	Motorized Impellers	117 W	cURus TUV	Thermoplastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Motorized Impellers 230VAC Round - 220mm Dia Ball 530.0 CFM (14.84m³/min) 4 Wire Leads
