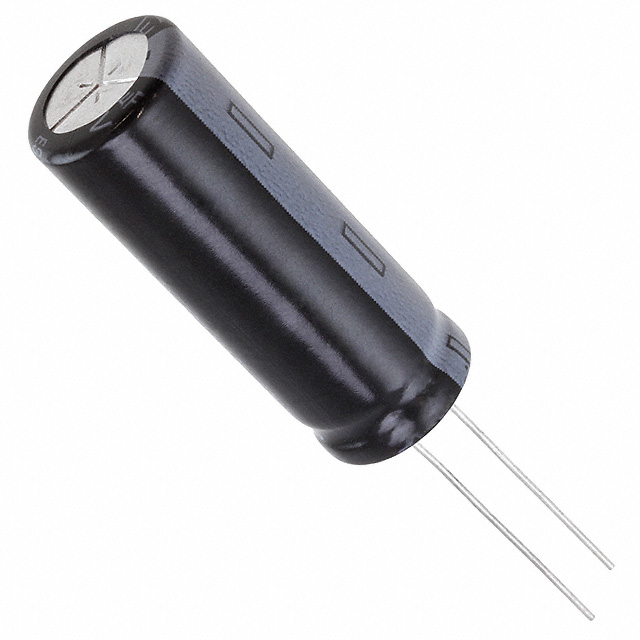

ESW158M035AL6AA

Active

KEMET

CAP ALUM 1500UF 20% 35V RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP ALUM 1500UF 20% 35V RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	ESW158M035AL6AA

Applications	General Purpose
Capacitance	1.5 mF
ESR (Equivalent Series Resistance)	20 mOhm
Height - Seated (Max) [Max] [z]	38 mm
Height - Seated (Max) [Max] [z]	1.496 in
Impedance	22 mOhms
Lead Spacing	5 mm
Lead Spacing	0.197 in
Lifetime @ Temp.	6000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	2.88 A
Ripple Current @ Low Frequency	1.728 A
Size / Dimension [diameter]	0.512 in
Size / Dimension [diameter]	13 mm
Tolerance	20 %
Voltage - Rated	35 V

Part	ESR (Equivalent Series Resistance)	Mounting Type	Voltage - Rated	Lead Spacing	Lead Spacing	Applications	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Capacitance	Ripple Current @ High Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	Lifetime @ Temp.	Impedance	Polarization	Ripple Current @ Low Frequency
KEMET ESW158M035AL6AA	20 mOhm	Through Hole	35 V	5 mm	0.197 in	General Purpose	Radial Can	-40 °C	105 ░C	0.512 in	13 mm	1.5 mF	2.88 A	38 mm	1.496 in	20 %	6000 Hrs	22 mOhms	Polar	1.728 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1500 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 20mOhm @ 100kHz 6000 Hrs @ 105°C
