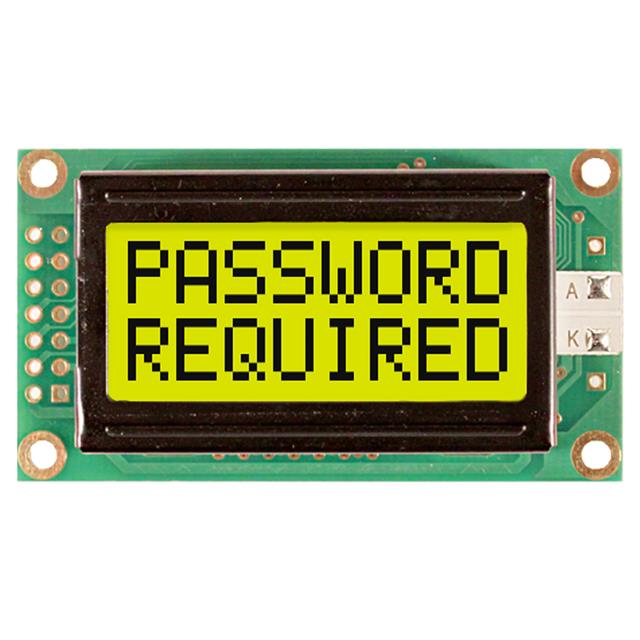

Specification	NHD-0208BZ-FL-GBW

Background Color	Green
Backlight Color	Yellow, Green
Backlight Type	LED
Character Height	5.56 mm
Character Height (Dots)	8 Dots
Character Width	2.96 mm
Character Width (Dots)	5 Dots
Controller Type	SPLC780D OR ST7066U
Display Columns	8
Display Mode	Transflective
Display Rows	2
Display Type	STN - Super-Twisted Nematic
Dot Size Height	0.66 mm
Dot Size Width	0.56 mm
Interface	Parallel
Number of Characters	16 characters
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-20 °C
Outline Height	13 mm
Outline Length	58 mm
Outline Width	32 mm
Text Color	Blue
Viewing Area Length	38 mm
Viewing Area Width	16 mm
Voltage - Supply (Maximum)	5.5 V
Voltage - Supply (Minimum)	4.7 V

NHD-0208 Series

Part	Controller Type	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Character Height	Character Width	Display Columns	Display Rows	Display Mode	Viewing Area Width	Viewing Area Length	Outline Length	Outline Width	Outline Height	Character Width (Dots)	Character Height (Dots)	Interface	Background Color	Text Color	Operating Temperature (Max)	Operating Temperature (Min)	Dot Size Width	Dot Size Height	Backlight Type	Backlight Color	Number of Characters	Display Type	Backlight
Newhaven Display Intl NHD-0208BZ-FL-YBW	SPLC780D OR ST7066U	4.7 V	5.5 V	5.56 mm	2.96 mm	8	2	Transflective	16 mm	38 mm	58 mm	32 mm	13 mm	5 Dots	8 Dots	Parallel	Green	Blue	70 °C	-20 °C	0.56 mm	0.66 mm	LED	Green Yellow	16 characters	STN - Super-Twisted Nematic
Newhaven Display Intl NHD-0208AZ-FL-GBW	SPLC780D OR ST7066U	4.5 V	5.5 V	4.75 mm	2.95 mm	8	2	Transflective	13.9 mm	30.4 mm	40 mm	35.4 mm	13.5 mm	5 Dots	8 Dots	Parallel	Green	Blue	70 °C	-20 °C	0.55 mm	0.55 mm	LED	Green Yellow	16 characters	STN - Super-Twisted Nematic
Newhaven Display Intl NHD-0208BZ-RN-YBW	SPLC780D OR ST7066U	4.7 V	5.5 V	5.56 mm	2.96 mm	8	2	Reflective	16 mm	38 mm	58 mm	32 mm	9.5 mm	5 Dots	8 Dots	Parallel	Green	Gray	70 °C	-20 °C	0.56 mm	0.66 mm			16 characters	STN - Super-Twisted Nematic	Without Backlight
Newhaven Display Intl NHD-0208BZ-FSW-GBW-33V3	SPLC780D OR ST7066U	3.1 V	3.5 V	5.56 mm	2.96 mm	8	2	Transflective	16 mm	38 mm	58 mm	32 mm	13 mm	5 Dots	8 Dots	Parallel	White	Blue	70 °C	-20 °C	0.56 mm	0.66 mm	LED	White	16 characters	STN - Super-Twisted Nematic
Newhaven Display Intl NHD-0208AZ-FSW-GBW-3V3		2.7 V	3.3 V	4.75 mm	2.95 mm	8	2	Transflective	13.9 mm	30.4 mm	40 mm	23.2 mm	13.5 mm	5 Dots	8 Dots	Parallel	Gray	Blue	70 °C	-20 °C	0.55 mm	0.55 mm	LED	White	16 characters	STN - Super-Twisted Nematic
Newhaven Display Intl NHD-0208BZ-FSW-GBW-3V3		2.7 V	3.3 V	5.56 mm	2.96 mm	8	2	Transflective	16 mm	38 mm	58 mm	32 mm	13 mm	5 Dots	8 Dots	Parallel	White	Gray	70 °C	-20 °C	0.56 mm	0.66 mm	LED	White	16 characters	STN - Super-Twisted Nematic
Newhaven Display Intl NHD-0208AZ-RN-YBW	SPLC780D OR ST7066U	4.5 V	5.5 V	4.75 mm	2.95 mm	8	2	Reflective	13.9 mm	30.4 mm	40 mm	35.4 mm	13.5 mm	5 Dots	8 Dots	Parallel	Green	Gray	70 °C	-20 °C	0.55 mm	0.55 mm			16 characters	STN - Super-Twisted Nematic	Without Backlight
Newhaven Display Intl NHD-0208BZ-FL-GBW	SPLC780D OR ST7066U	4.7 V	5.5 V	5.56 mm	2.96 mm	8	2	Transflective	16 mm	38 mm	58 mm	32 mm	13 mm	5 Dots	8 Dots	Parallel	Green	Blue	70 °C	-20 °C	0.56 mm	0.66 mm	LED	Green Yellow	16 characters	STN - Super-Twisted Nematic
Newhaven Display Intl NHD-0208AZ-FL-YBW	SPLC780D OR ST7066U	4.5 V	5.5 V	4.75 mm	2.95 mm	8	2	Transflective	13.9 mm	30.4 mm	40 mm	35.4 mm	13.5 mm	5 Dots	8 Dots	Parallel	Green	Gray	70 °C	-20 °C	0.55 mm	0.55 mm	LED	Green Yellow	16 characters	STN - Super-Twisted Nematic
Newhaven Display Intl NHD-0208AZ-RN-GBW	SPLC780D OR ST7066U	4.5 V	5.5 V	4.75 mm	2.95 mm	8	2	Reflective	13.9 mm	30.4 mm	40 mm	35.4 mm	13.5 mm	5 Dots	8 Dots	Parallel	Gray	Blue	70 °C	-20 °C	0.55 mm	0.55 mm			16 characters	STN - Super-Twisted Nematic	Without Backlight
