901-9985-RFX

Active

Amphenol RF

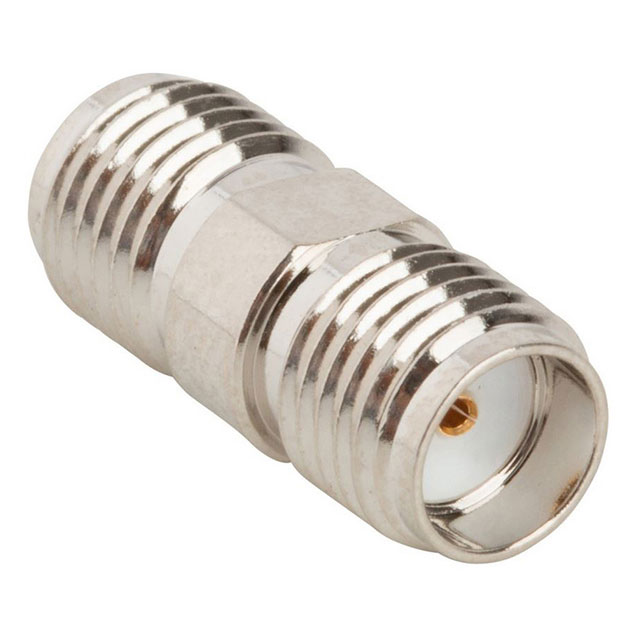

CONN ADAPT JACK-JACK SMA 50OHM

Search across all available documentation for this part.

Active

Amphenol RF

CONN ADAPT JACK-JACK SMA 50OHM

Technical Specifications

Parameters and characteristics for this part

Specification	901-9985-RFX

Adapter Series	SMA to SMA
Adapter Type	Jack to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	Female Socket, SMA Jack
Convert To (Adapter End)	SMA Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Connector Type	Cable Group	Center Contact Material	Voltage Rating	Mating Cycles	Number of Ports	Impedance	Housing Color	Shield Termination	Connector Style	Mounting Feature	Includes	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Dielectric Material	Body Material	Contact Termination	Convert To (Adapter End)	Adapter Series	Style	Convert From (Adapter End)	Center Gender	Mounting Type	Body Finish	Adapter Type	Conversion Type
Amphenol RF 901-9990	Jack Male Pin	178A 178B 196 196A M17/93-RG178 RG-178	Beryllium Copper	375 V	500	1	50 Ohms	Silver	Crimp	RP-SMA	Bulkhead - Front Side Nut	1 Connector 1 Lockwasher 1 Nut	12.4 GHz	-65 ░C	165 °C	Gold	Polytetrafluoroethylene (PTFE)	Stainless Steel	Crimp
Amphenol RF 901-9985-RFX			Beryllium Copper		500		50 Ohms						12.4 GHz	-65 ░C	165 °C	Gold	Polytetrafluoroethylene (PTFE)	Brass		Female Socket SMA Jack	SMA to SMA	Straight	Female Socket SMA Jack	Female to Female	Free Hanging (In-Line)	Nickel	Jack to Jack	Same Series
Amphenol RF 901-9986-RFX			Beryllium Copper		500		50 Ohms				Bulkhead	1 Connector 1 Lockwasher 1 Nut	12.4 GHz	-65 ░C	165 °C	Gold	Polytetrafluoroethylene (PTFE)	Brass		Female Socket SMA Jack	SMA to SMA	Straight	Female Socket SMA Jack	Female to Female		Nickel	Jack to Jack	Same Series
Amphenol RF 901-9917-3	Female Socket Jack		Beryllium Copper		500	1	50 Ohms	Silver	Solder	SMA			12.4 GHz	-65 ░C	165 °C	Gold	Polytetrafluoroethylene (PTFE)	Brass	Solder						Through Hole Right Angle	Nickel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMA Jack, Female Socket To SMA Jack, Female Socket 50 Ohms
