STMPE801QTR
ObsoleteSTMicroelectronics
IC XPNDR 400KHZ I2C 16QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | STMPE801QTR |
|---|---|
| Clock Frequency | 400 kHz |
| Features | POR |
| Interface | I2C |
| Interrupt Output | True |
| Mounting Type | Surface Mount |
| Number of I/O | 8 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Push-Pull |

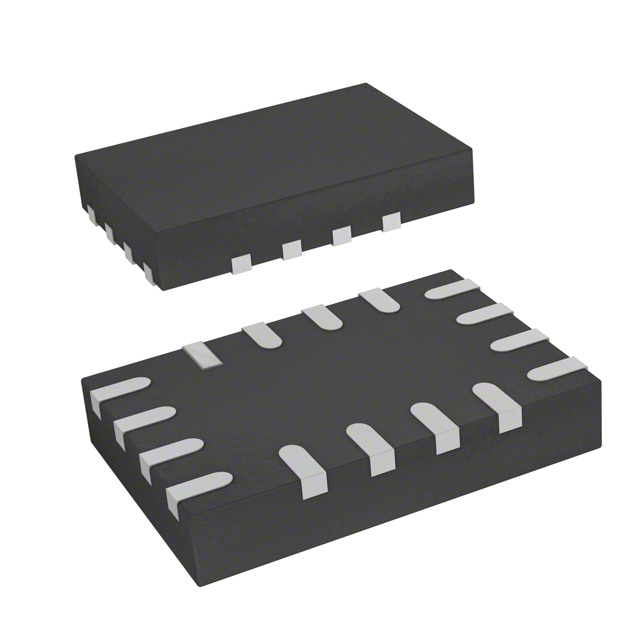

| Package / Case | 16-UFQFN |
| Supplier Device Package | 16-QFN |
| Supplier Device Package [x] | 2.6 |
| Supplier Device Package [y] | 1.8 |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.65 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
STMPE801 Series
I/O Expander 8 I2C 400 kHz 16-QFN (2.6x1.8)
